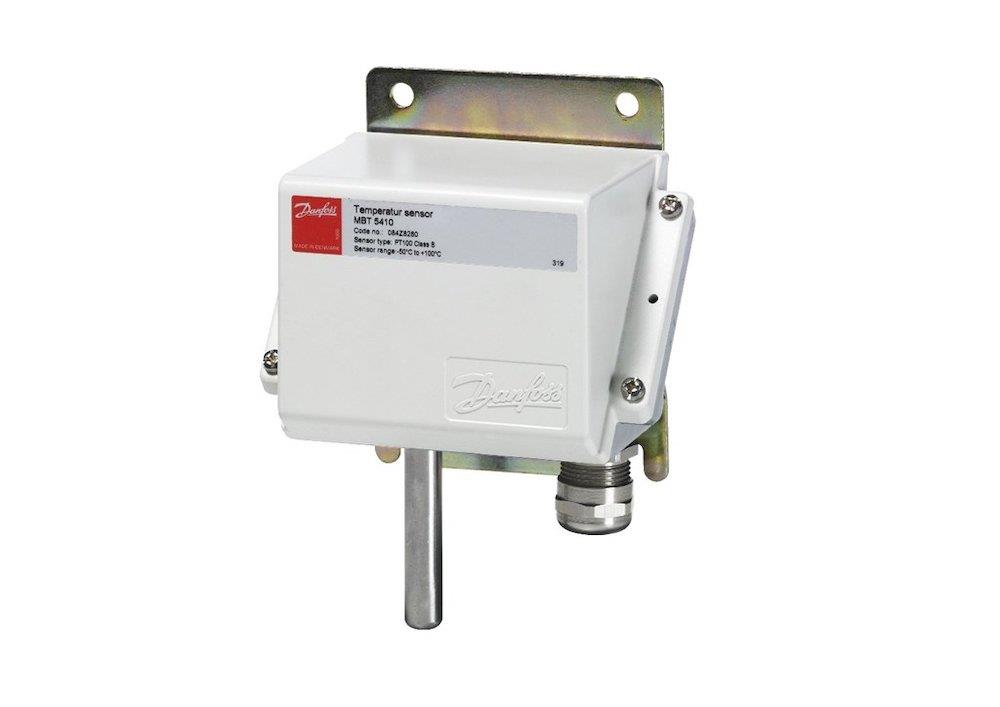

Danfoss MBT 5410 Sensor - 10°C, 50°C, 60mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5410 Sensor. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: setting temperature min 10 °C, setting temperature max 50 °C, length 60 mm. Supplied under manufacturer part number 084Z5064, EAN 5702423141647, HS code 9025.19, country of origin Denmark.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Setting temperature min
- 10 °C
- Setting temperature max
- 50 °C
- Length
- 60 mm
- Type
- MBT 5410
- Carbon footprint (EPD)
- 6.7859 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90251900
- HS code
- 9025.19
- Manufacturer part number
- 084Z5064
- VVS number
- 475176510
- EAN
- 5702423141647
- Net weight
- 0.59 Kilogram
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Box (metal/plastic)
- Electrical connection size
- 2 terminals
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 2.36 in
- Insertion length [mm]
- 60 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 50 °C
- Measuring range [°C] [min]
- -10 °C
- Measuring range [°F] [max]
- 122 °F
- Measuring range [°F] [min]
- 14 °F
- Number of terminals [pcs]
- 3 pc
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Protection tube diameter [in]
- 0.394 in
- Protection tube diameter [mm]
- 10 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Supply voltage [V] DC [max]
- 35 V
- Supply voltage [V] DC [min]
- 8 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 50 °C
- Transmitter setting range [°C] [min]
- -10 °C
- Transmitter setting range [°F] [max]
- 122 °F
- Transmitter setting range [°F] [min]
- 14 °F
- Transmitter type
- Standard
- Type designation
- MBT 5410-000-060-000-G205
- Wires [pcs]
- 2 pc
Standards & Compliance
- HS Code
- 9025.19
Cross References
- MPN 084Z5064
- EAN 5702423141647
- VVS 475176510
Product Documentation
