Product Description

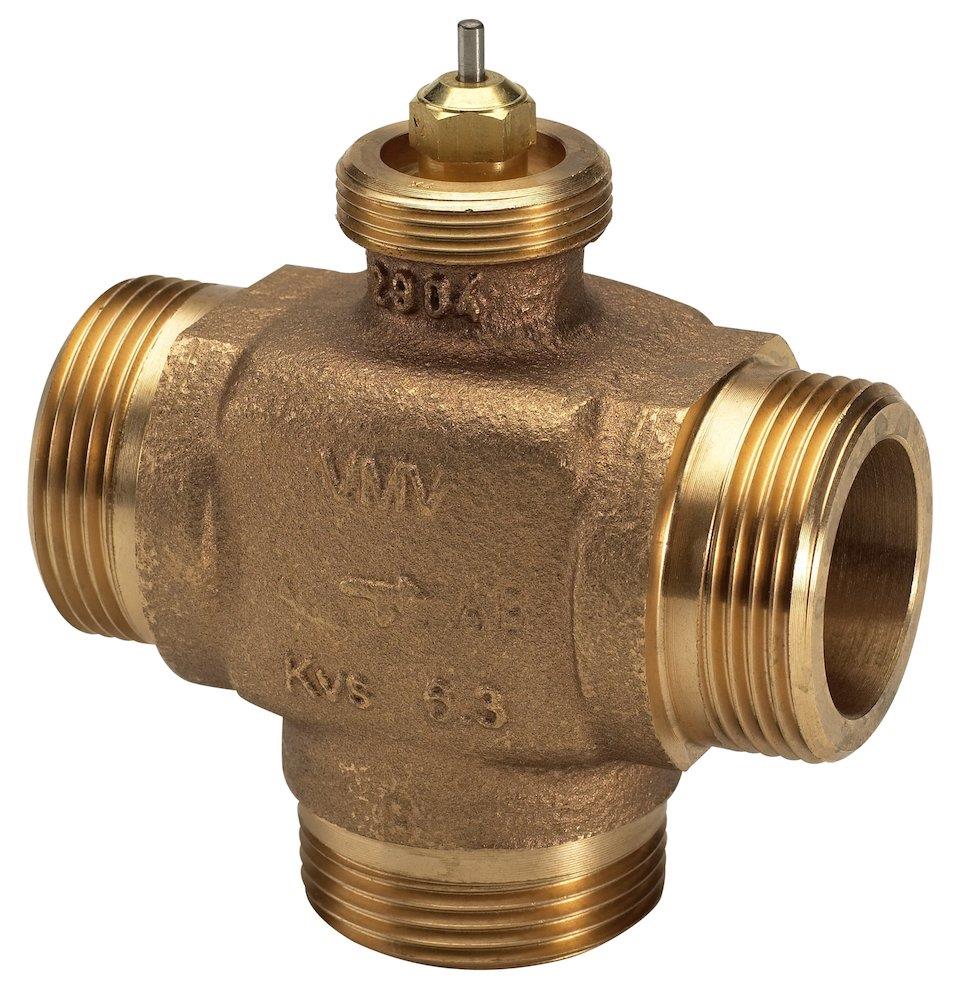

Danfoss VMV Seat Valve M30 neck 3-way. Seat valves (Plumbing / Heat / Valves for heating and cooling systems). Principal data: thread 3/4", connection Male thread. Supplied under manufacturer part number 065F6015, EAN 5702421603802, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Seat valves
- Product group
- Heat
- Thread
- 3/4"
- Connection
- Male thread
- Carbon footprint (EPD)
- 3.2441 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 065F6015
- VVS number
- 461054004
- EAN
- 5702421603802
- Net weight
- 0.464 Kilogram
- Type
- VMV M30
- Application
- Heating and cooling
- Cavitation factor
- 0.5
- China RoHS compliance
- Out of scope
- Closing differential pressure (diverting) [bar] [Max]
- 0.6 bar
- Closing differential pressure (mixing) [bar] [Max]
- 0.6 bar
- Connection size
- G 3/4 A
- Connection type to valve
- M30
- Connection types
- External Thread
- Control ratio
- 1:30
- Description
- VMV PN16 15/2,5 3-way ext. thr M30 neck
- Diameter [mm]
- 15 mm
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow characteristic
- Approx. linear
- Function
- Mixing valve
- Function 2
- Diverting valve
- Kvs values [m³/h]
- 2.5 m³/h
- Leakage bypass port max. [% Kvs]
- 0.1 %
- Leakage through port max. [% Kvs]
- 0.05
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 3
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure nominal [bar]
- 16 bar
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Spindle material
- Stainless steel
- Spindle position
- B-AB (Normal open)
- Stroke [mm]
- 2 mm
- Valve body material
- Red bronze, mat. No. 2.1096.1 (RG5)
- Valve cone material
- EPDM
- Valve seat material
- Red bronze, mat. No. 2.1096.1 (RG5)
- Valve size
- DN 15
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 065F6015
- EAN 5702421603802
- VVS 461054004
