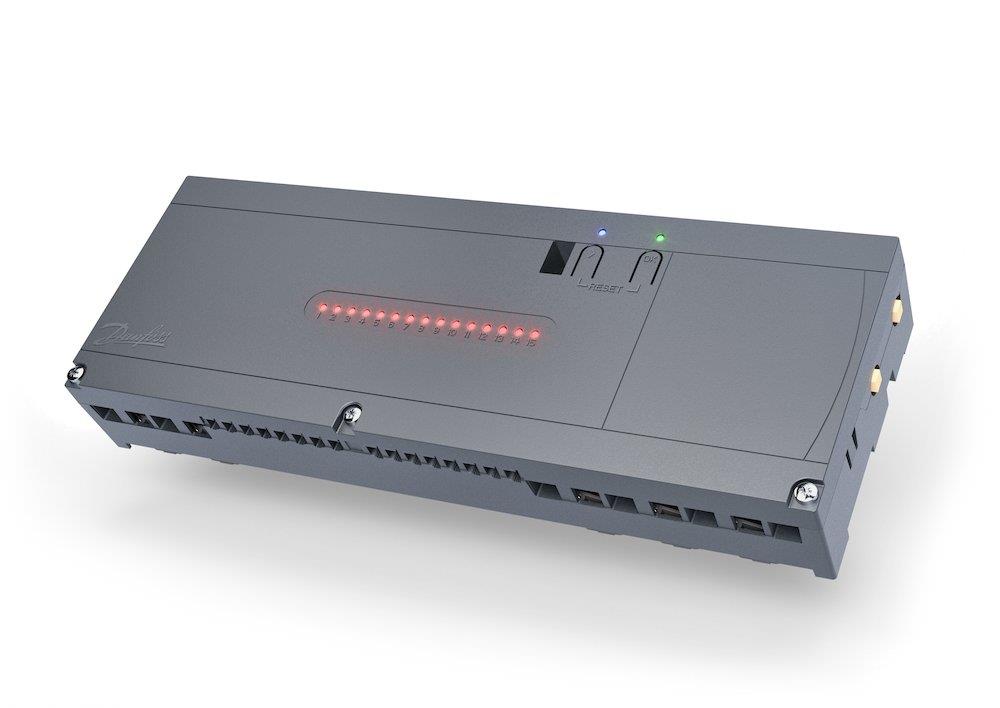

Danfoss Icon2 Advanced Master Controller 15 Zones 230 V
Pricing
Request a quote
We reply within 24 hours
Product Description
The Danfoss Icon2 Advanced main controller manages up to 15 underfloor-heating zones from a 230 V AC supply, with Zigbee and Bluetooth communication, app control, automatic balancing, adaptive learning and a boiler-relay output. The wall-mounted housing measures 330 x 120 x 54 mm in RAL 7016 anthracite grey and provides IP20 protection; up to four masters can be linked.
Technical Specifications
- Product type
- Control & regulation
- Product group
- Heat
- Number of outlets
- 15 pcs
- Power supply
- 230 V AC
- Color
- RAL7016 anthracite grey
- Width
- 54 mm
- Length
- 330 mm
- Height
- 120 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 20.4240 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 90321020
- HS code
- 9032.10
- Manufacturer part number
- 088U2110
- VVS number
- 460970545
- EAN
- 5715162300152
- Net weight
- 0.928 Kilogram
- Type
- Danfoss Icon2™ MC
- Actuator on radiator
- Yes
- Adaptive learning
- Yes
- App control enabled
- Yes
- Automatic balancing
- Yes
- Away input
- No
- Boiler relay
- Yes
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Cooling input
- Yes
- Description
- Advanced, Zigbee/Bluetooth communication, EU version
- Dual mode
- Yes
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EPD available
- Yes
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Heating control type
- Main Controller
- Humidity sensor
- No
- In scope of WEEE
- Yes
- In-wall
- No
- Installation
- On-wall
- Installation location
- For installation in non-public area, such as private homes or locked technical room
- Interfaces
- Wireless/Wired 24V
- IP protection class
- IP20
- Masters connected [Max]
- 4
- NC/NO
- Yes
- Number of actuators max
- 15
- Number of channels
- 15
- Number of outputs [pc]
- 15 pc
- Output voltage [V] AC
- 230 V
- Output voltage [V] DC
- 230 V
- Power per output [W] [Max]
- 2 W
- Product height/depth [mm]
- 120 mm
- Product length [mm]
- 330 mm
- Pump relay
- Yes
- PWM
- Yes
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Scheduling
- Yes
- Suitable for
- 230V actuators
- Supply Flow temperature control
- Yes
- Supply voltage [V]
- 230 V
- Temperature control
- Yes
- Temperature limitation
- Yes
- Thermal feedback
- Yes
- Transmission frequency [GHz]
- 2.4 GHz
- Usage
- Advanced
- Valve excercise
- Yes
Standards & Compliance
- HS Code
- 9032.10
Cross References
- MPN 088U2110
- EAN 5715162300152
- VVS 460970545
Product Documentation
