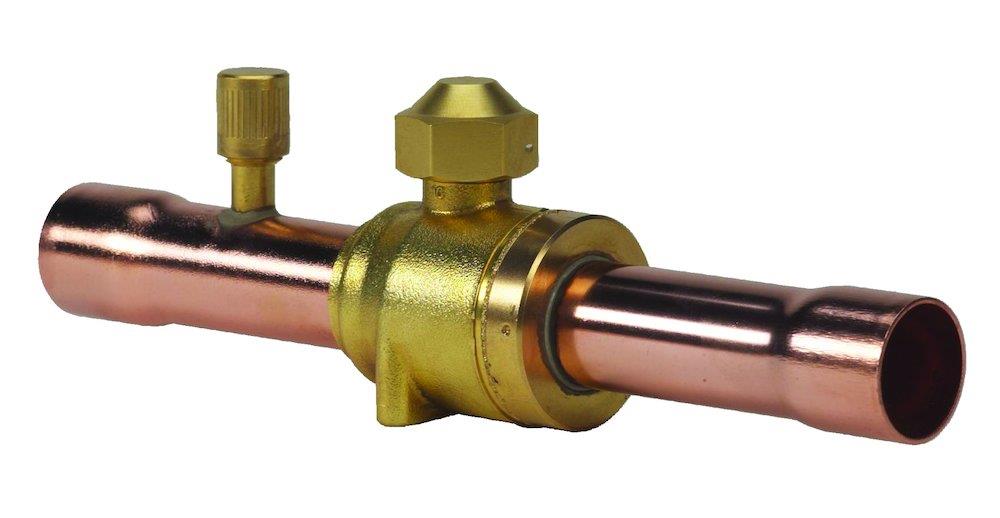

Danfoss GBC Ball Valve - 3/8" solder, 1.83M³/h, 45bar, -40-100°C, R134A, R22, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R1234YF, R454C (XL20), R1234ZE, R290, R452B, R454B (XL41), R455A, R507, R404A, GBC 10S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC Ball Valve. Shut-off valves (Refrigeration technology / Cooling technical components / Isolation valves). Principal data: connection 3/8" solder, kv value 1.83 m³/h, working pressure max 45 bar, temperature range -40-100 °C. Supplied under manufacturer part number 009L7051, EAN 5702428007962, HS code 8481.80, country of origin China.
Technical Specifications
- Product type
- Shut-off valves
- Product group
- Cooling technical components
- Connection
- 3/8" solder
- Kv value
- 1.83 m³/h
- Working pressure max
- 45 bar
- Temperature range
- -40-100 °C
- Coolant
- R134a, R22, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R1234yf, R454C (XL20), R1234ze, R290, R452B, R454B (XL41), R455A, R507, R404A
- Type designation
- GBC 10s
- Sales unit
- Pack
- Carbon footprint (EPD)
- 1.5364 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84818081
- HS code
- 8481.80
- Manufacturer part number
- 009L7051
- GTIN (EAN)
- 5702428007962
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702428007962
- MPN 009L7051
