Product Description

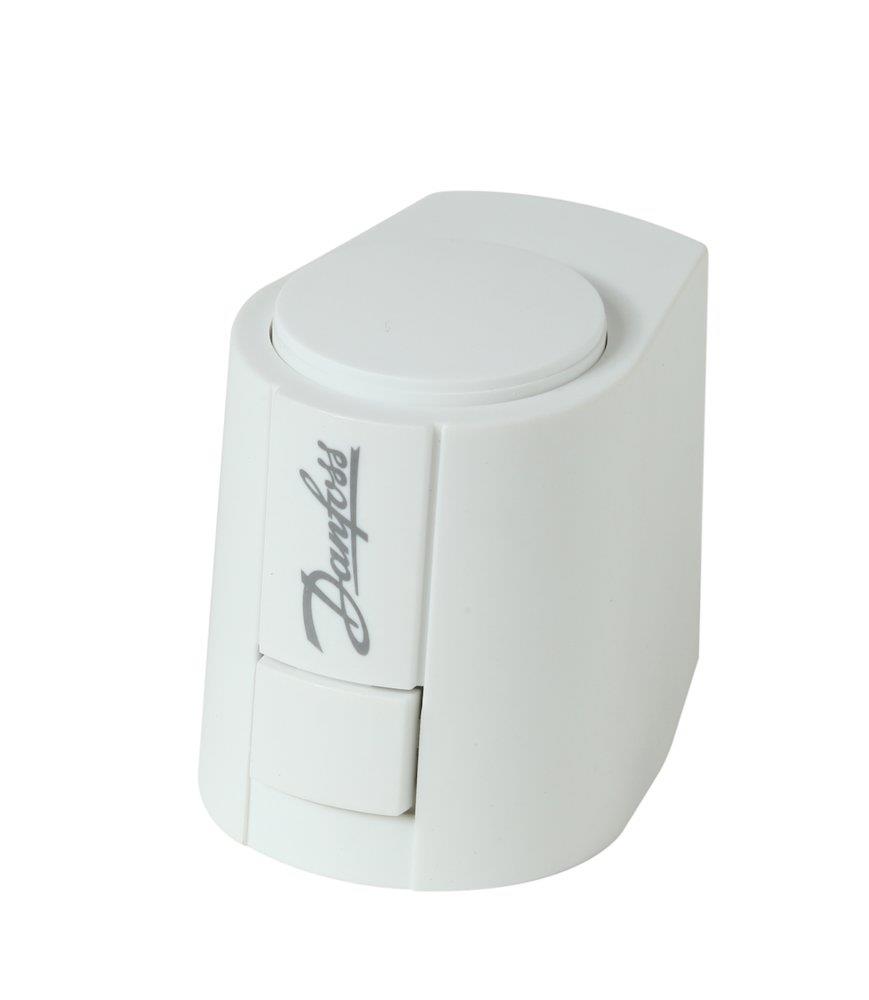

Danfoss ABNM A5 LIN Thermo Actuator. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 10-32, supply voltage 24 V AC. Supplied under manufacturer part number 082F1165, EAN 5702420124421, HS code 8481.90, country of origin Denmark.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 10-32
- Supply voltage
- 24 V AC
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.6713 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 082F1165
- VVS number
- 406848802
- EAN
- 5702420124421
- Net weight
- 0.117 Kilogram
- Type
- ABNM A5 0-10V
- Approval standard
- EC EN 60730
- Cable length [m]
- 0 m
- China RoHS compliance
- Out of scope
- Compatibility with AB-QM size
- DN 10-32
- Connection size
- M 30 x 1.5
- Control characteristic
- LIN
- Control input signal Y [V]
- 0 - 10 V
- Control signal type
- Modulating
- De-energized position
- Normally open
- Description
- ABNM A5 LIN, 24 V, 6,5 mm, Normally Open thermal actuator
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP54
- Label product
- Yes
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Stroke [mm]
- 6.5 mm
- Supply voltage [V]
- 24 V AC
