Product Description

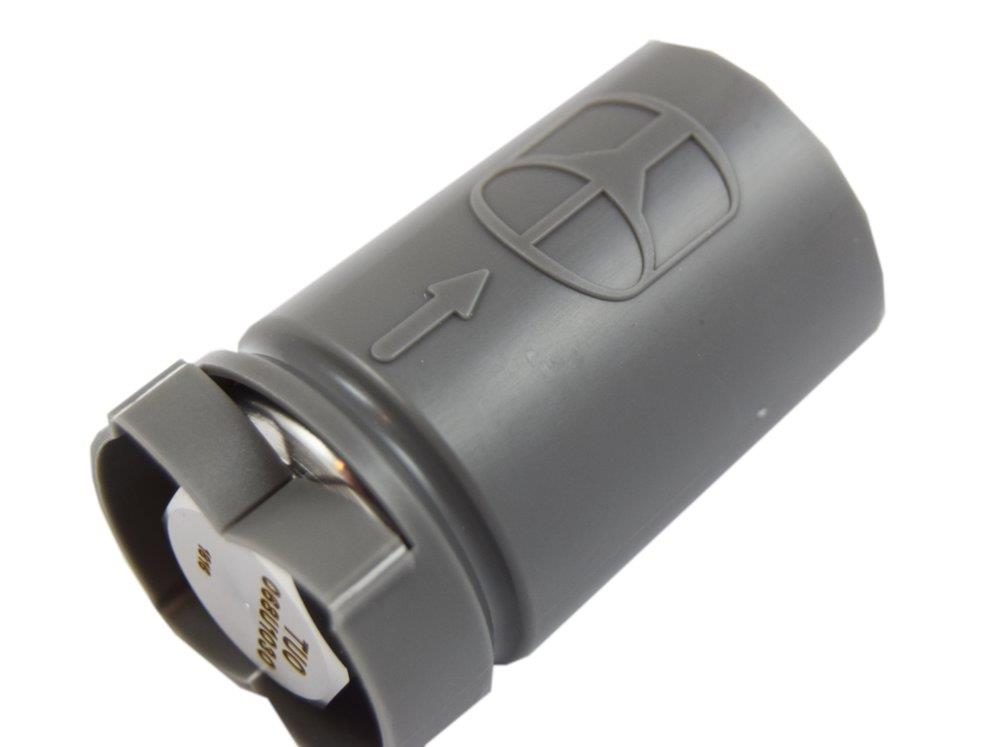

Danfoss TUA Nozzle insert. Accessories and spare parts for expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: orifice size 4, fits with TUA series, type designation Dyse 4 TUA. Supplied under manufacturer part number 068U1034, EAN 5702422187790, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Accessories and spare parts for expansion valves
- Product group
- Cooling technical components
- Orifice size
- 4
- Fits with
- TUA series
- Type designation
- Dyse 4 TUA
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.3340 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 068U1034
- EAN
- 5702422187790
- Net weight
- 0.042 Kilogram
- Type
- ORF
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- Rated cap. R134a, Range N [kW]
- 2.1 kW
- Rated cap. R134a, Range N [TR]
- 0.59 TR
- Rated cap. R22, Range B [kW]
- 1.8 kW
- Rated cap. R22, Range B [TR]
- 0.5 TR
- Rated cap. R22, Range N [kW]
- 2.6 kW
- Rated cap. R22, Range N [TR]
- 0.75 TR
- Rated cap. R404A, Range B [kW]
- 1.3 kW
- Rated cap. R404A, Range B [TR]
- 0.37 TR
- Rated cap. R404A, Range N [kW]
- 2.1 kW
- Rated cap. R404A, Range N [TR]
- 0.6 TR
- Rated cap. R407C, Range B [kW]
- 1.4 kW
- Rated cap. R407C, Range B [TR]
- 0.41 TR
- Rated cap. R407C, Range N [kW]
- 2.8 kW
- Rated cap. R407C, Range N [TR]
- 0.8 TR
- Rated cap. R410A, Range N [kW]
- 4.5 kW
- Rated cap. R410A, Range N [TR]
- 1.3 TR
- Rated cap. R507, Range B [kW]
- 1.4 kW
- Rated cap. R507, Range B [TR]
- 0.41 TR
- Rated cap. R507, Range N [kW]
- 2 kW
- Rated cap. R507, Range N [TR]
- 0.57 TR
- Rated cap. R513A, Range N [kW]
- 1.4 kW
- Rated cap. R513A, Range N [TR]
- 0.39 TR
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
- Used for product
- TUA
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702422187790
- MPN 068U1034
