Product Description

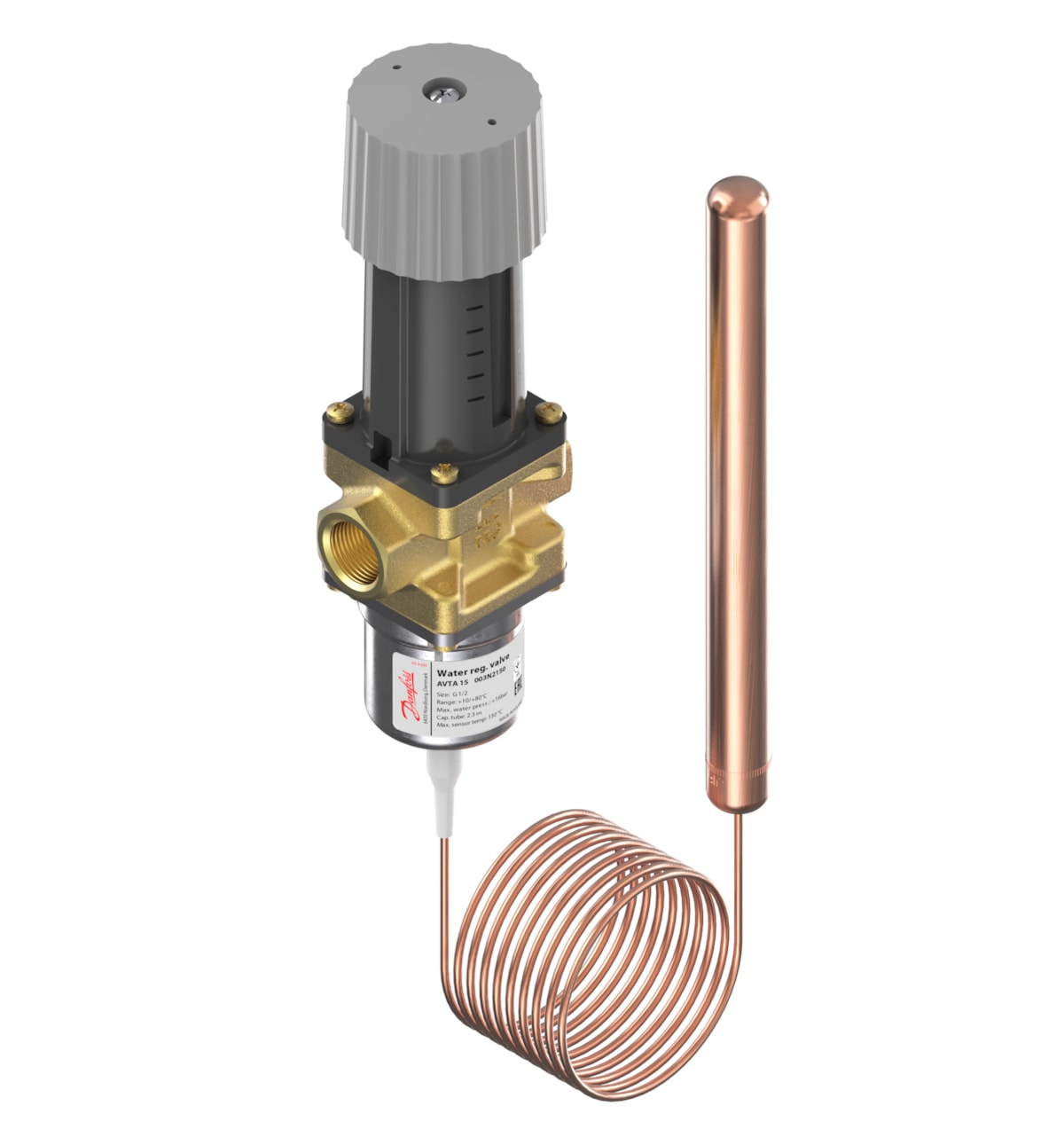

Danfoss thermostatic water valve AVTA 25 — 1", 25/65GRC,2MTR.KAP.PIPE, 18 x L210MM. Reference part number 003N4162.
Technical Specifications
- Code number
- 003N4162
- EAN
- 5702423010424
- Net weight
- 1.504 Kilogram
- Approval
- EAC; LLC CDC TYSK; PED; RoHS; RoHS China
- Body material
- Brass
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube gland Int/Ext
- Internal
- Capillary tube gland size [in]
- 3/4
- Capillary tube gland standard
- ISO 228-1
- Capillary tube gland type
- G
- Capillary tube length [mm]
- 2000 mm
- Charge type
- Universal
- Connection Internal/External
- Internal
- Connection size [in]
- 1
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 6.400 gal/min
- EU RoHS compliance
- Yes with exemptions
- Flow direction indicator
- Embossed 1-way arrow
- Kv value [m³/h]
- 5.500 m³/h
- Max. pressure on sensor [bar]
- 25 bar
- Max. sensor temperature [°C]
- 90 °C
- Max. test pressure [bar] Pe
- 25.0 bar
- Max. test pressure [psig]
- 362.6 psig
- Max. Working Pressure [bar]
- 16.0 bar
- Media
- Neutral media
- Opening configuration
- Opens on rising sensor temp.
- Orifice size [mm]
- 25.00 mm
- Orifice size fraction [in]
- 1 in
- Product accessories
- Generic accessories; Water valves accessories
- Product group
- Water regulating valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- AVTA 25
- Sensor size (Ø x L) [mm]
- 18 x 210 mm
- Serviceable
- Water valve spare parts
- Differential pressure [bar]
- 0.000 bar … 10.000 bar
- Medium temperature range [°C]
- -25 °C … 130 °C
- Temperature range [°C]
- 25 °C … 65 °C
- Length
- 210 mm
- Setting range
- 25 to 65 °C
- Gross weight
- 1.784 Kilogram
- Volume
- 4.082 Liter
- Type
- AVTA 25
- Product Name Description
- Thermo. operated water valve
- China RoHS compliance
- Yes
- Differential pressure [bar] [max]
- 10 bar
- Differential pressure [bar] [min]
- 0 bar
- Differential pressure [psi] [max]
- 145 psi
- Differential pressure [psi] [min]
- 0 psi
- EU RoHS exemption clause
- 6(b)
- Identical product
- 003N4164
- Max. pressure on sensor [psig]
- 362.6 psig
- Max. sensor temperature [°F]
- 194 °F
- Max. Working Pressure [psig]
- 232 psig
- Medium temperature range [°C] [max]
- 130 °C
- Medium temperature range [°C] [min]
- -25 °C
- Medium temperature range [°F] [max]
- 266 °F
- Medium temperature range [°F] [min]
- -13 °F
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor size (Ø x L) [in]
- 23/32 x 8 1/4 in
- Temperature range [°C] [max]
- 65 °C
- Temperature range [°C] [min]
- 25 °C
- Temperature range [°F] [max]
- 149 °F
- Temperature range [°F] [min]
- 77 °F
Standards & Compliance
- HS Code
- 9032.10
Cross References
- EAN 5702423010424
Product Documentation
Document preview: Danfoss 003N4162 — OEM Datasheet
