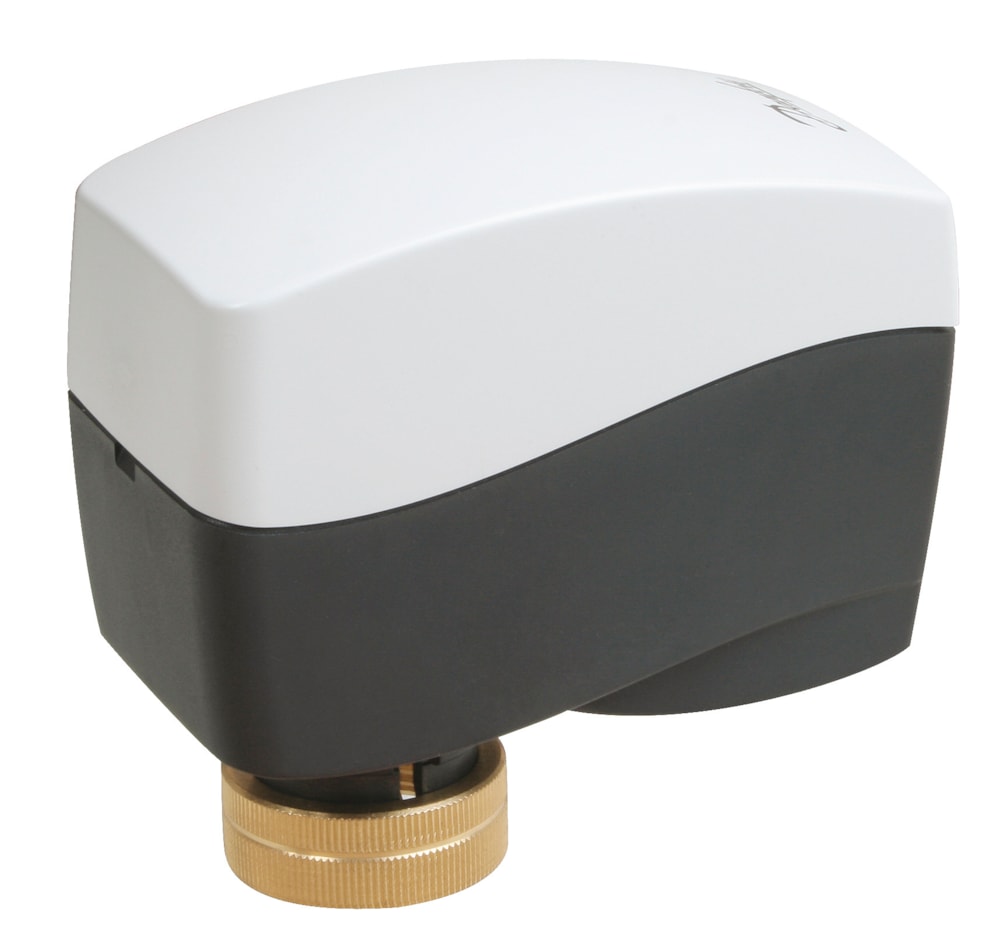

![Danfoss valve motor AME 140 — Supply voltage [V] AC 24, 5.50 mm](/images/products/danfoss-7b4c1696c252c9c4.jpg)
Product Description
Danfoss valve motor AME 140 — Supply voltage [V] AC 24, 5.50 mm. Reference part number 082H8045.
Technical Specifications
- Code number
- 082H8045
- EAN
- 5715162016473
- Net weight
- 0.354 Kilogram
- Actuator speed [s/mm]
- 12 s/mm
- Actuator type
- Electrical
- Application
- fan coils
- Cable included
- Yes
- Cable length [m]
- 1.500 m
- Closing force [N]
- 200 N
- Compatibility with valve
- VZ DN 15-20; VZL DN 15-20
- Control input signal Y [mA]
- 0 - 20 mA
- Control input signal Y [V]
- 0 - 10 V
- Control signal type
- Modulating
- Description
- AME 140 24V 12s/mm 5,5mm 200N
- EU RoHS compliance
- Yes with exemptions
- IP protection class
- IP42
- Manual operation
- Yes
- Position feedback
- yes
- Power consumption [W]
- 1.0 W
- Product group
- Gear actuators
- Product line
- Hydronic Balancing and Controls
- Product Type
- AME 140
- Protection Class of the Coating
- II
- Safety function
- No
- Speed type
- Standard
- Spindle speed [s/mm]
- 12.0 s/mm
- Spring down (return)
- No
- Spring up
- No
- Stroke [mm]
- 5.50 mm
- Supply voltage [V]
- 24 V AC
- Turn time per 90° [s]
- 0 "
- Ambient temperature [°C]
- 0 °C … 55 °C
- Storage temperature [°C]
- -40 °C … 70 °C
- Gross weight
- 0.356 Kilogram
- Volume
- 1.01 Liter
- Type
- AME 140
Cross References
- EAN 5715162016473
Product Documentation
Document preview: Danfoss 082H8045 — OEM Datasheet
