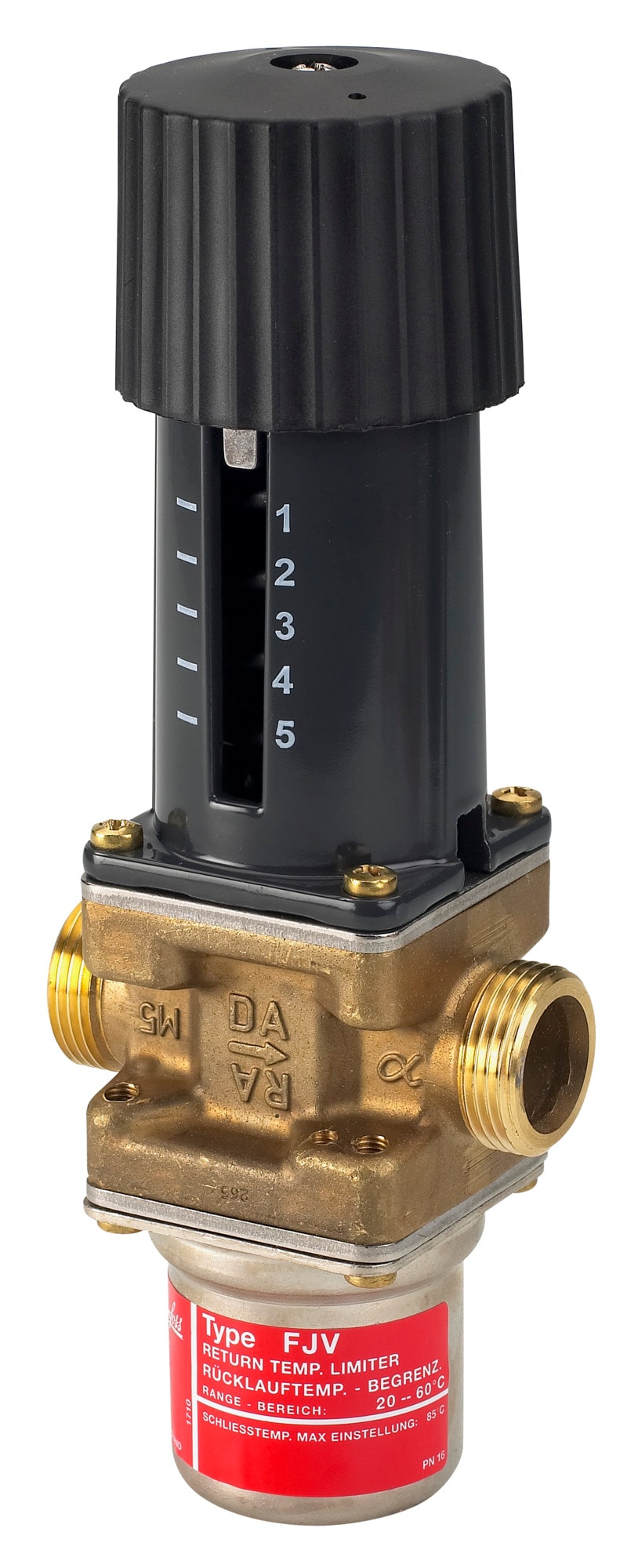

Danfoss thermostatic valve FJV 20 — 20/60GRC, R3/4", 2MTR. kap.pipe

Danfoss thermostatic valve FJV 20 — 20/60GRC, R3/4", 2MTR. kap.pipe. Reference part number 003N3250.

Setting range

20 to 60 °C

Gross weight

1.372 Kilogram

Net weight

1.192 Kilogram

Volume

4.082 Liter

Type

FJV

Product group

Temperature controllers

EAN

5702421100196

MPN

003N3250

Ambient temperature [°C] [max]

70 °C

Ambient temperature [°C] [min]

0 °C

Approval standard

ETA VA 1.54/18952

Capillary tube length [m]

2 m

Cavitation factor

0.4

China RoHS compliance

Out of scope

Cone /seat sealing material

NBR / Brass W. No 2.0402

Connection size

Rp 3/4

Connection standard

ISO 7/1

Connection types

Internal thread

Description

FJV 20 Thermostatic valve 20-60#C

Diameter [mm]

20 mm

Differential pressure range [bar] [Max]

10 bar

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Linear

Flow control

No

Function

Temp. limiter

Function VSP - P

No

Function VSP - Q

No

Function VSP - T

Yes

Kvs values [m³/h]

3.4 m³/h

Media pH [Max]

10

Media pH [Min]

7

Media temperature [°C] [Max]

130 °C

Media temperature [°C] [Min]

2 °C

Medium alternative

Glycolic water up to 30%

Number of ports

2

Permissible media

District heating/cooling circulation water

PN alternative VSP

10

Pressure class

PN 16

Pressure nominal [bar]

16 bar

REACH Candidate Strip substances

Lead (CAS no. 7439-92-1)

Return limiter function

Yes

Temperature control

No

Temperature setting range [°C] [Max]

60 °C

Temperature setting range [°C] [Min]

20 °C

Transport temperature [°C] [Max]

50 °C

Transport temperature [°C] [Min]

-20 °C

Valve body material

Brass CuZn40Pb2 W. no 2.0402

Valve cone material

NBR rubber

Valve seat material

Cr Ni steel W.no 1.4301

Valve size

DN 20

HS Code

9032.10

• EAN 5702421100196
