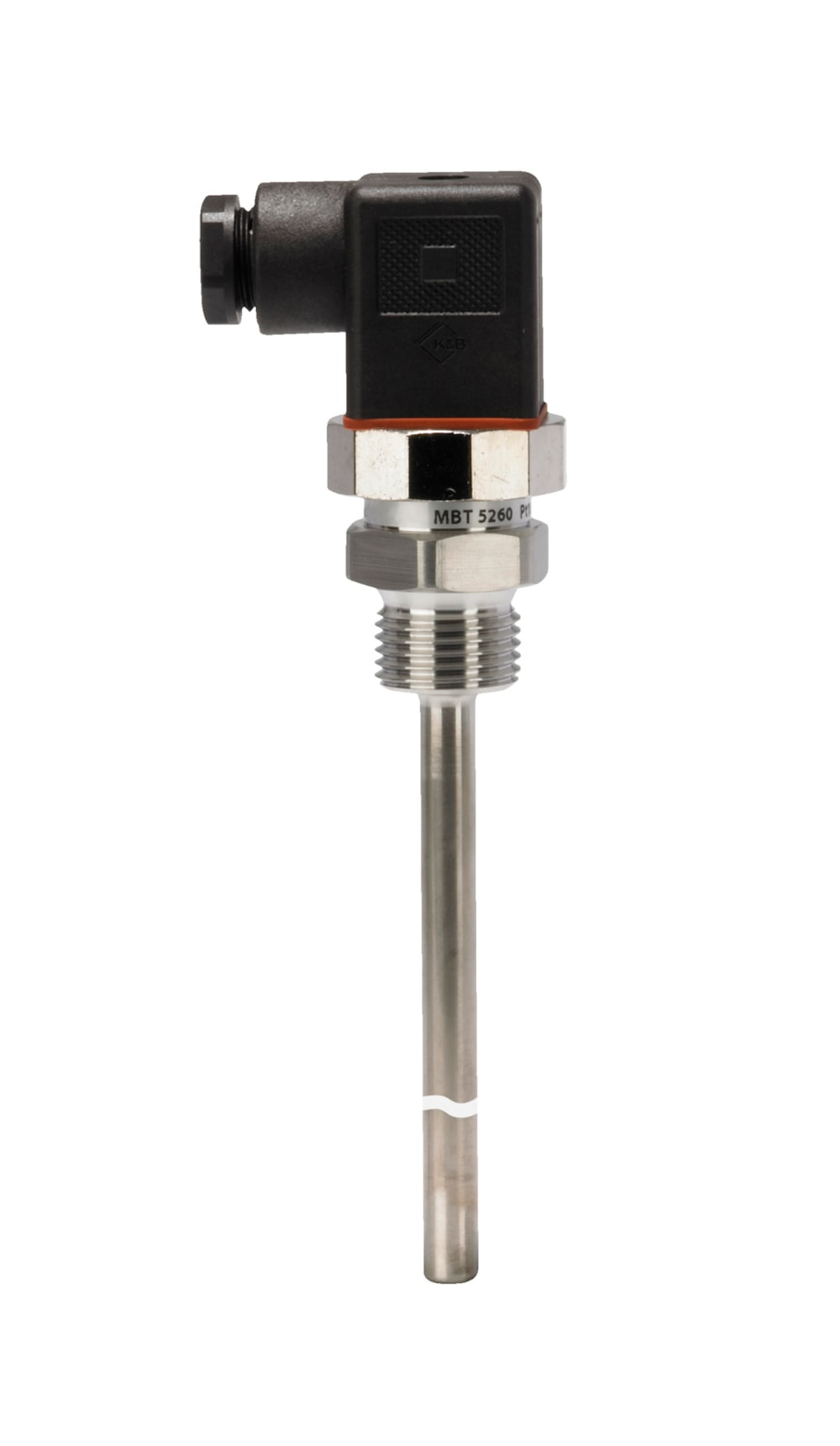

Danfoss temperature sensor MBT5250, PT-100 — -50/200GRC, R1/2" x L50MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature sensor MBT5250, PT-100 — -50/200GRC, R1/2" x L50MM. Reference part number 084Z2060.
Technical Specifications
- Code number
- 084Z2060
- EAN
- 5702423292264
- Net weight
- 0.141 Kilogram
- Ambient temperature max. [°C]
- 125 °C
- Approval
- CE
- CE mark
- Yes
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- Electrical conn. Male/Female
- Male and Female
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- Insertion length [mm]
- 50 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 4 pc
- Output signal
- Ohm
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBT 5250
- Protection tube diameter [mm]
- 8.0 mm
- Protection tube material
- AISI 316 TI
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Type designation
- MBT 5250-0000-050-C20
- Wires [pcs]
- 4 pc
- Measuring range [°C]
- -50 °C … 200 °C
- Temperature range [°C]
- -50 °C … 200 °C
- Length
- 50 mm
- Process connection
- R 1/2
- Temperature range
- -50 to 200 °C
- Gross weight
- 0.145 Kilogram
- Volume
- 0.193 Liter
- Type
- MBT 5250
- Product Name Description
- Temperature sensor
