Danfoss temperature sensor MBT5252, 4-20MA — -10/20GRC, 1/2"npt x L100MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature sensor MBT5252, 4-20MA — -10/20GRC, 1/2"npt x L100MM. Reference part number 084Z5060.
Technical Specifications
- Code number
- 084Z5060
- EAN
- 5702423141296
- Net weight
- 0.403 Kilogram
- Ambient temperature max. [°C]
- 85 °C
- Approval
- CE
- CE mark
- Yes
- Connection material
- Stainless steel
- Connection standard
- ANSI/ASME B1.20
- Connection type
- NPT
- Electrical connection
- Type B
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- Extension length [mm]
- 50 mm
- Insertion length [mm]
- 100 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2-14
- Process connection standard
- ANSI/ASME B1.20.1
- Process connection type
- NPT
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBT 5252
- Protection tube diameter [mm]
- 10.0 mm
- Protection tube material
- AISI 316 TI
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class 1/6 B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Transmitter type
- Standard
- Type designation
- MBT 5252-0011-0100-0740-G202
- Wires [pcs]
- 2 pc
- Measuring range [°C]
- -10 °C … 20 °C
- Output signal [mA]
- 4 mA … 20 mA
- Supply voltage [V] DC
- 8.00 V … 35.00 V
- Temperature range [°C]
- -50 °C … 200 °C
- Transmitter setting range [°C]
- -10 °C … 20 °C
- Length
- 100 mm
- Temperature range
- -10 to 20 °C
- Output signal
- 4–20 mA
- Process connection
- 1/2 in
- Gross weight
- 0.411 Kilogram
- Volume
- 1.386 Liter
- Type
- MBT 5252
- Product Name Description
- Temperature transmitter
Cross References
- EAN 5702423141296
Product Documentation
More from Danfoss
Danfoss
Danfoss temperature sensor MBT5250, 4-20MA — 0/250GRC, R1/2" x L100MM
084Z5181
Danfoss

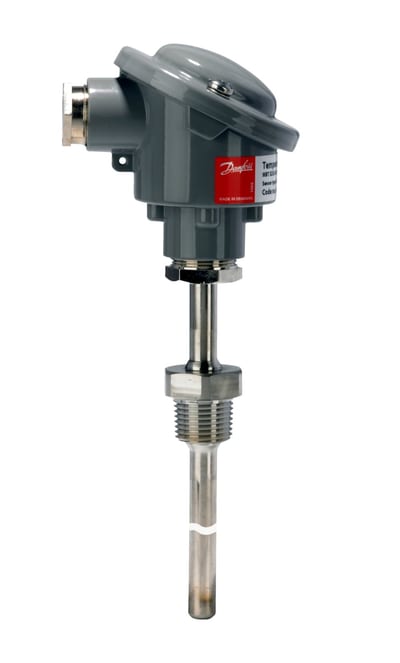

Danfoss temperature sensor MBT 5252,4-20MA — -50/150GRC, L100MM, 1/2"npt
