Danfoss

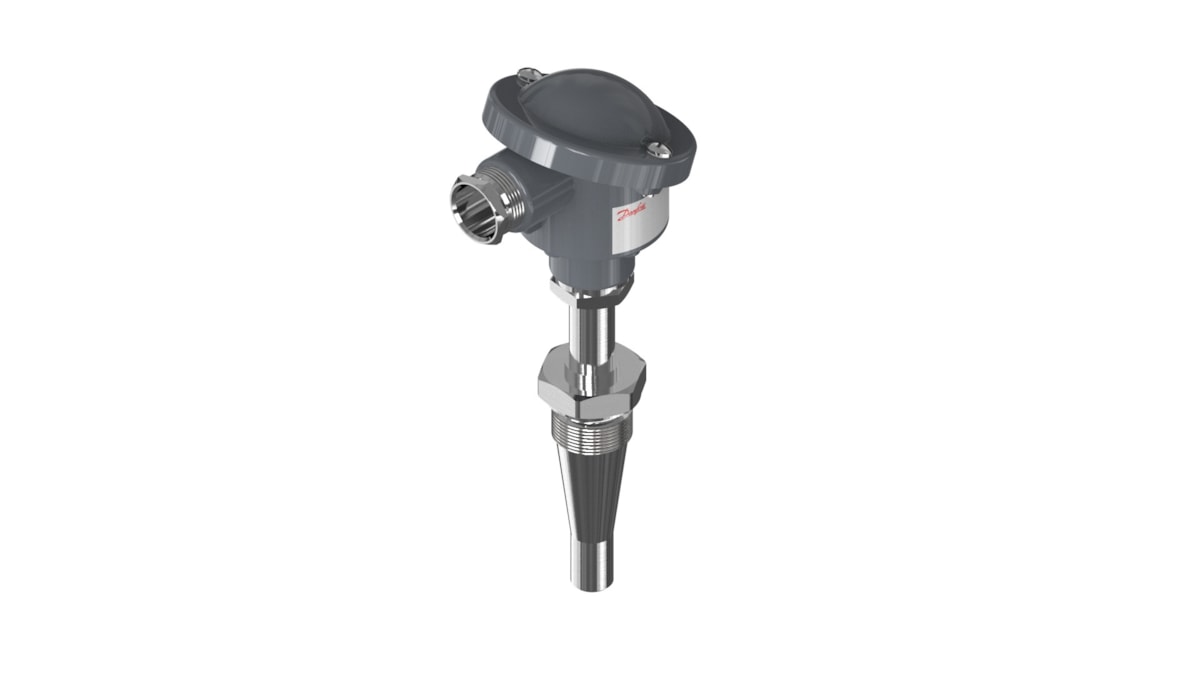

Danfoss temperature sensor MBT 5116, PT100 — -50/600GRC, neck 50mm, 3/4" x L150MM
Part number084Z5024EAN / GTIN5702423139262
Sensors & Instrumentation
Temperature Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature sensor MBT 5116, PT100 — -50/600GRC, neck 50mm, 3/4" x L150MM. Reference part number 084Z5024.
Technical Specifications
- Code number
- 084Z5024
- EAN
- 5702423139262
- Net weight
- 0.696 Kilogram
- Ambient temperature max. [°C]
- 90 °C
- Approval
- CE
- CE mark
- Yes
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- Electrical connection
- Type B
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- Extension length [mm]
- 50 mm
- Insertion length [mm]
- 150 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 3 pc
- Output signal
- Ohm
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 3/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBT 5116
- Protection tube material
- AISI 316 TI
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Type designation
- MBT 5116-B001-150-10-0000
- Wires [pcs]
- 2 pc
- Measuring range [°C]
- -50 °C … 600 °C
- Protection tube diameter [in]
- 0.551 in … 0.945 in
- Protection tube diameter [mm]
- 14.0 mm … 24.0 mm
- Temperature range [°C]
- -50 °C … 600 °C
- Length
- 150 mm
- Temperature range
- -50 to 600 °C
- Process connection
- 3/4 in
- Gross weight
- 0.7 Kilogram
- Volume
- 1.397 Liter
- Type
- MBT 5116
- Product Name Description
- Temperature sensor
- Ambient temperature max. [°F]
- 194 °F
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- In scope of WEEE
- Yes
- Insertion length [in]
- 5.9 in
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
Cross References
- EAN 5702423139262
Product Documentation
Document preview: Danfoss 084Z5024 — OEM Datasheet
