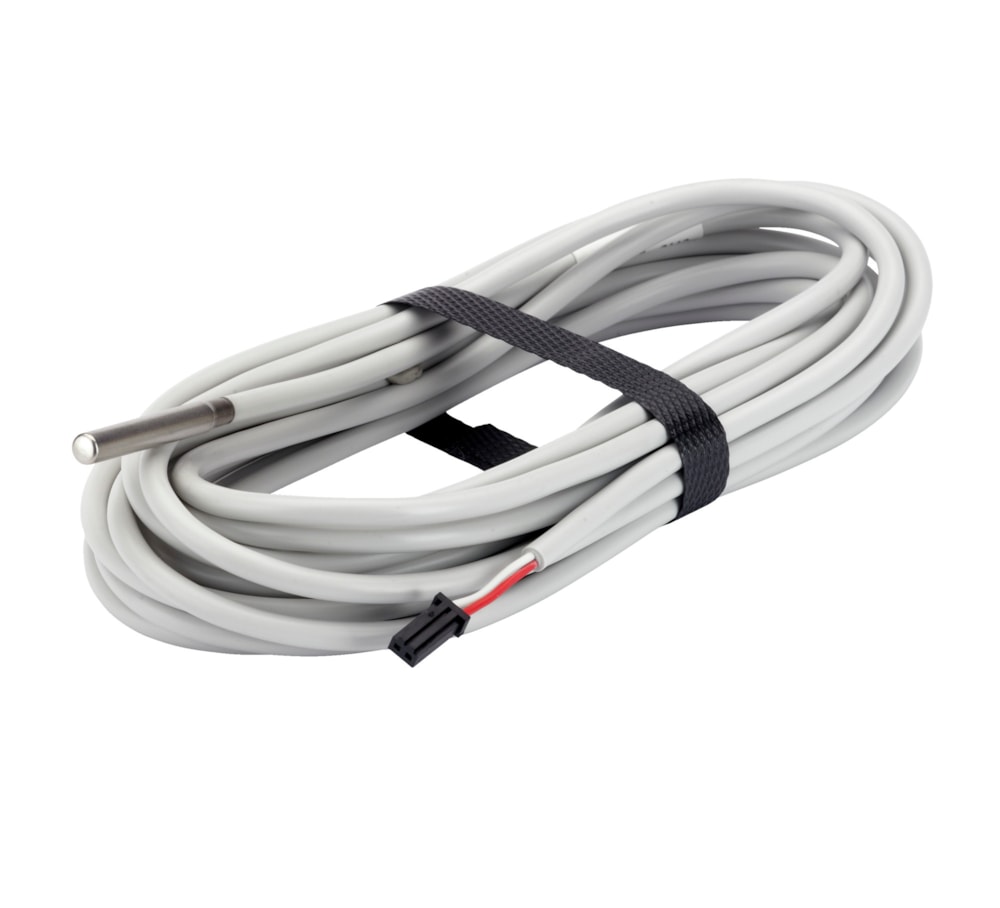

Danfoss temperature sensor AKS 12 — 5,5 mtr cable, PT-1000
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature sensor AKS 12 — 5,5 mtr cable, PT-1000. Reference part number 084N0045.
Technical Specifications
- Code number
- 084N0045
- EAN
- 5702428040112
- Net weight
- 0.17 Kilogram
- Ambient temperature max. [°C]
- 100 °C
- Approval
- CE
- Cable length [in]
- 216.54 in
- Cable length [m]
- 5.500 m
- Cable type
- PVC
- CE mark
- Yes
- Electrical conn. comments
- Cable
- Electrical connection
- AMP
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- AKS 12
- Protection tube diameter [mm]
- 5.8 mm
- Protection tube length [mm]
- 40.0 mm
- Protection tube material
- STAINLEES STEEL
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Wires [pcs]
- 2 pc
- Cable tempr. range [°C]
- -40 °C … 100 °C
- Measuring range [°C]
- -40 °C … 100 °C
- Gross weight
- 0.174 Kilogram
- Volume
- 0.285 Liter
- Type
- AKS 12
- Product Name Description
- Temperature sensor
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 5702428040112
Product Documentation
More from Danfoss
Danfoss

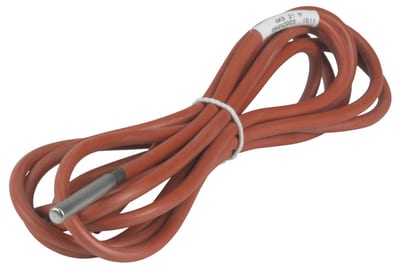

AKS 21 A, 5.00 m, Pt,1000 Ohm
084N2008
Danfoss
Danfoss temperature sensor AKS 21 M, 2.50 m
084N2003
Danfoss

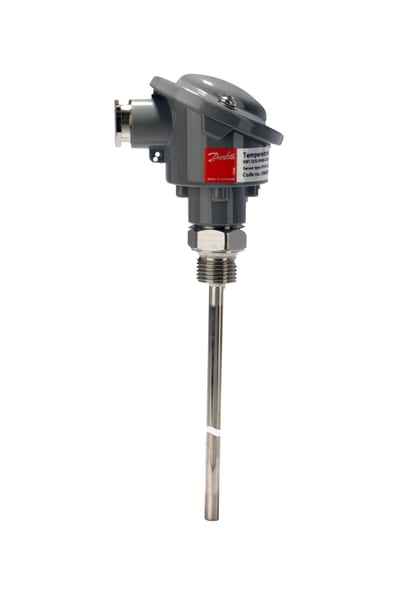

Danfoss Temperature sensor MBT 5252, PT-100 — -50/200GRC, 1/2" x L133MM
084Z0157
Danfoss

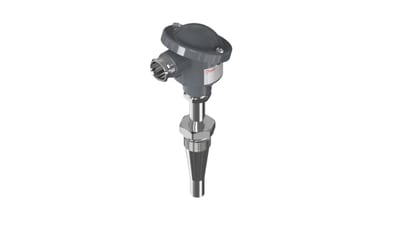

Danfoss temperature sensor MBT 5116, PT100 — -50/600GRC, neck 50mm, 3/4" x L150MM
