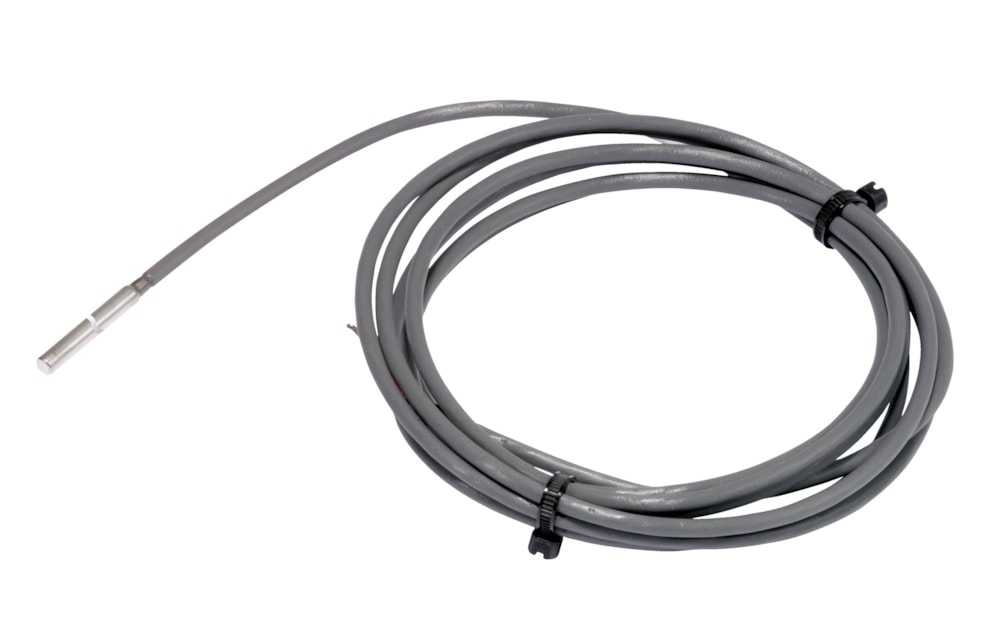

Danfoss temperature sensor MBT 153, PT-100 — -50/200GRC, 3MTR.CABLE, 3.CONDUCTOR
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature sensor MBT 153, PT-100 — -50/200GRC, 3MTR.CABLE, 3.CONDUCTOR. Reference part number 084Z5239.
Technical Specifications
- Code number
- 084Z5239
- EAN
- 5702423160129
- Net weight
- 0.122 Kilogram
- Approval
- CE
- Cable length [in]
- 118.00 in
- Cable length [m]
- 3.000 m
- Cable type
- Teflon
- CE mark
- Yes
- Electrical connection
- Cable
- Electrical connection size
- 3 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes
- Insertion type
- Variable
- Output signal
- Ohm
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBT 153
- Protection tube diameter [mm]
- 6.0 mm
- Protection tube material
- AISI 305
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Type designation
- MBT 153-4001-0300
- Wires [pcs]
- 3 pc
- Cable tempr. range [°C]
- -80 °C … 200 °C
- Measuring range [°C]
- -50 °C … 200 °C
- Temperature range [°C]
- -50 °C … 200 °C
- Temperature range
- -50 to 200 °C
- Gross weight
- 0.135 Kilogram
- Volume
- 0.392 Liter
- Type
- MBT 153
- Product Name Description
- Temperature sensor
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 5702423160129
Product Documentation
More from Danfoss
Danfoss

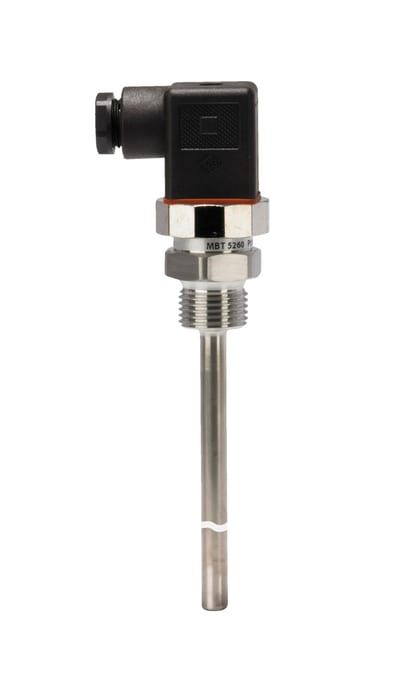

Danfoss temperature sensor MBT5250, PT-100 — -50/200GRC, R1/2" x L50MM
