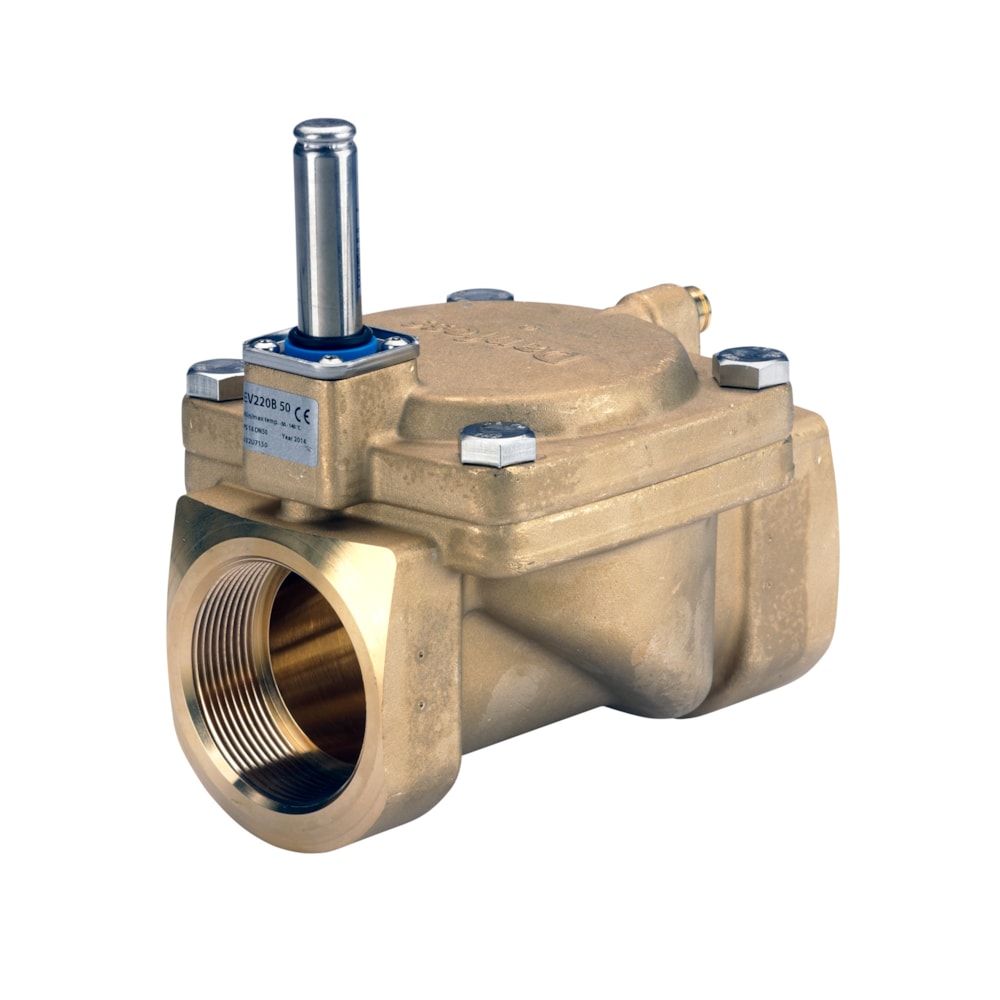

Danfoss solenoid valve EV220B 50B G, NC — 2", 0,3-12bar, WOL, brass/ NBR
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV220B 50B G, NC — 2", 0,3-12bar, WOL, brass/ NBR. Reference part number 032U7175.
Technical Specifications
- Code number
- 032U7175
- EAN
- 5702423125173
- Net weight
- 4.725 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 80 °C
- Application
- Open
- Approval
- CE; DNVGL-CG-0339
- Body material
- Brass
- CE mark
- Yes
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size [in]
- 2
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 46.200 gal/min
- Est. time to close, water [ms]
- 10000 ms
- Est. time to open, water [ms]
- 5000 ms
- EU RoHS compliance
- Yes with exemptions
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 40.000 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 18.0 bar
- Max. Working Pressure [bar]
- 12.0 bar
- Media recommendations
- Water,Brine,Oil,Air
- Media tolerance comments
- Neutral media
- Number of ways
- 2/2
- Open/close equalizing orifice
- Optional Equalization orifice
- Operation
- Servo-operated (diaphragm)
- Orifice size [mm]
- 50.00 mm
- Orifice size fraction [in]
- 2 in
- Parts Program name
- EV220B 15 - 50
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV220B
- Seal Material
- NBR
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV220B 50B G 2N NC000
- Type designation
- EV220B 50
- Differential pressure [bar]
- 0.300 bar … 12.000 bar
- Medium temperature range [°C]
- -10 °C … 90 °C
- Operating pressure
- 0.3–12 bar
- Material
- Brass
- Gross weight
- 5.07 Kilogram
- Volume
- 7.334 Liter
- Type
- EV220B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702423125173
Product Documentation
