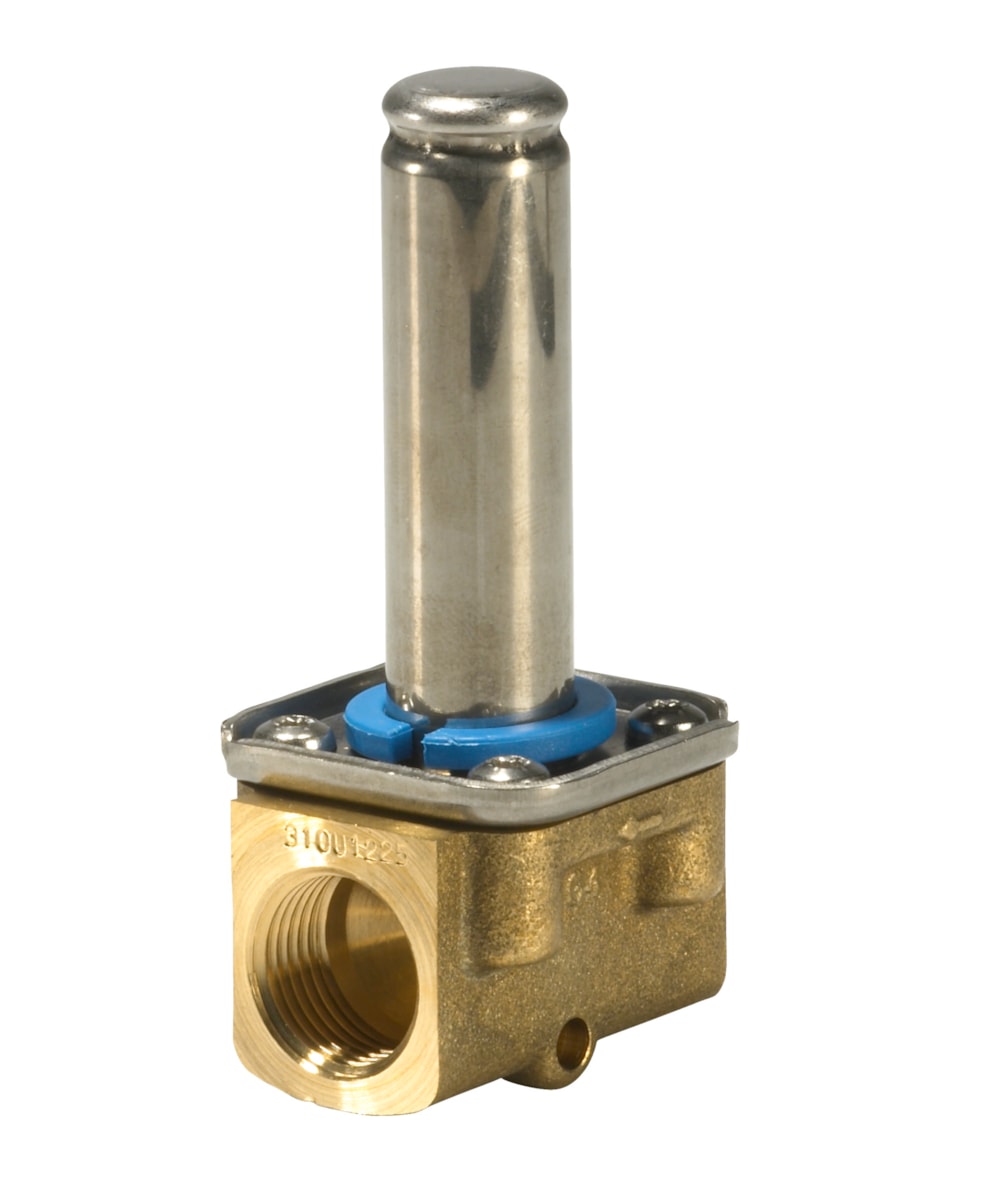

Danfoss solenoid valve EV210B, NC — 0/30 bar, 3/8", Brass, NBR
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV210B, NC — 0/30 bar, 3/8", Brass, NBR. Reference part number 032U1225.
Technical Specifications
- Code number
- 032U1225
- EAN
- 5702423006144
- Net weight
- 0.189 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 80 °C
- Application
- Closed and Drain
- Approval
- DNVGL-CG-0339
- Body material
- Brass
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size [in]
- 3/8
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 0.350 gal/min
- Est. time to close, water [ms]
- 20 ms
- Est. time to open, water [ms]
- 20 ms
- EU RoHS compliance
- Yes with exemptions
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 0.300 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 45.0 bar
- Max. Working Pressure [bar]
- 30.0 bar
- Media recommendations
- Water,Brine,Oil,Air
- Media tolerance comments
- Neutral media
- Number of ways
- 2/2
- Operation
- Direct-operated
- Orifice size [mm]
- 3.00 mm
- Orifice size fraction [in]
- 1/8 in
- Parts Program name
- EV210B
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV210B
- Seal Material
- NBR
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV210B 3B G 38N NC000
- Type designation
- EV210B 3
- Differential pressure [bar]
- 0.000 bar … 30.000 bar
- Medium temperature range [°C]
- -10 °C … 80 °C
- Operating pressure
- 0–30 bar
- Material
- Brass
- Process connection
- 3/8 in
- Gross weight
- 0.206 Kilogram
- Volume
- 0.253 Liter
- Type
- EV210B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702423006144
Product Documentation
More from Danfoss
Danfoss
Danfoss solenoid valve EV210B, 1/4" NC — 0/30 bar, rustfrii
032U5801
Danfoss
Danfoss solenoid valve, EV310B, NC — 1/8, 0.150 m³/h, FKM
032U4901
Danfoss
Danfoss solenoid valve EV210B, NO — 0/5bar, 1/4" EPDM
032U3638
Danfoss
Danfoss solenoid valve EV250B 12 NC FKM — R1/2, 0-10bar, OL, NC
032U5253
Danfoss
Danfoss solenoid valve EV250B 18BD EPDM — R3/4", 0-10bar, WBD, NC
032U5254
Danfoss
Danfoss solenoid valve EV250B18 FKM — R3/4", 0-10bar, NC, OL
032U5255
Danfoss
Danfoss solenoid valve EV250B 22BD EPDM — R1", 0-10bar, NC
032U5256
Danfoss
Danfoss solenoid valve EV220B, NC — 1 1/4", 0,3-16bar, DZR-avsinkingsfri
032U5832
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 032U1225?
- 032U1225 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 032U1225.
- What is the HS code for 032U1225?
- The customs tariff (HS) code for 032U1225 is 8481.80.
- Who manufactures 032U1225?
- 032U1225 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 032U1225?
- Yes — the 032U1225 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 032U1225?
- The minimum order quantity is 1.
- Is 032U1225 available?
- Yes — 032U1225 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
