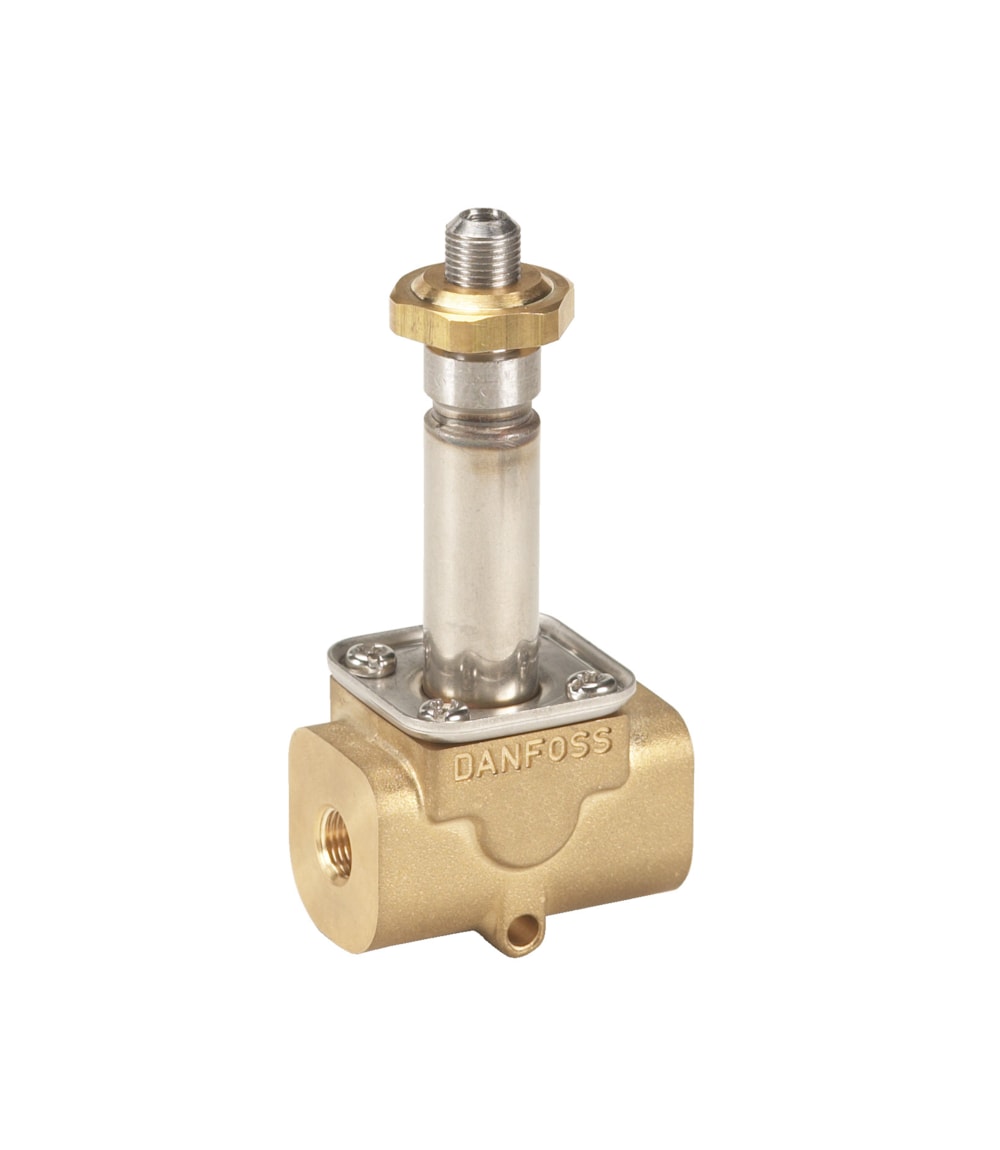

Danfoss solenoid valve, EV310B, NC — 1/8, 0.150 m³/h, FKM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve, EV310B, NC — 1/8, 0.150 m³/h, FKM. Reference part number 032U4901.
Technical Specifications
- Code number
- 032U4901
- EAN
- 5702423179541
- Net weight
- 0.322 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 40 °C
- Application
- Open
- Body material
- Brass
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size [in]
- 1/8
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 0.170 gal/min
- Est. time to close, water [ms]
- 20 ms
- Est. time to open, water [ms]
- 20 ms
- EU RoHS compliance
- Yes with exemptions
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 0.150 m³/h
- Max. test pressure [bar]
- 24.0 bar
- Max. Working Pressure [bar]
- 16.0 bar
- Media recommendations
- Oil,Comp.Air,Vacuum
- Number of ways
- 3/2
- Operation
- Direct-operated
- Orifice size [mm]
- 2.00 mm
- Orifice size fraction [in]
- 5/64 in
- Parts Program name
- EV310B
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV310B
- Seal Material
- FKM
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV310B 2B G 18F NC000
- Type designation
- EV310B 2
- Differential pressure [bar]
- 0.000 bar … 16.000 bar
- Medium temperature range [°C]
- -10 °C … 100 °C
- Flow rate
- 0.150 m³/h
- Gross weight
- 0.348 Kilogram
- Volume
- 0.283 Liter
- Type
- EV310B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
