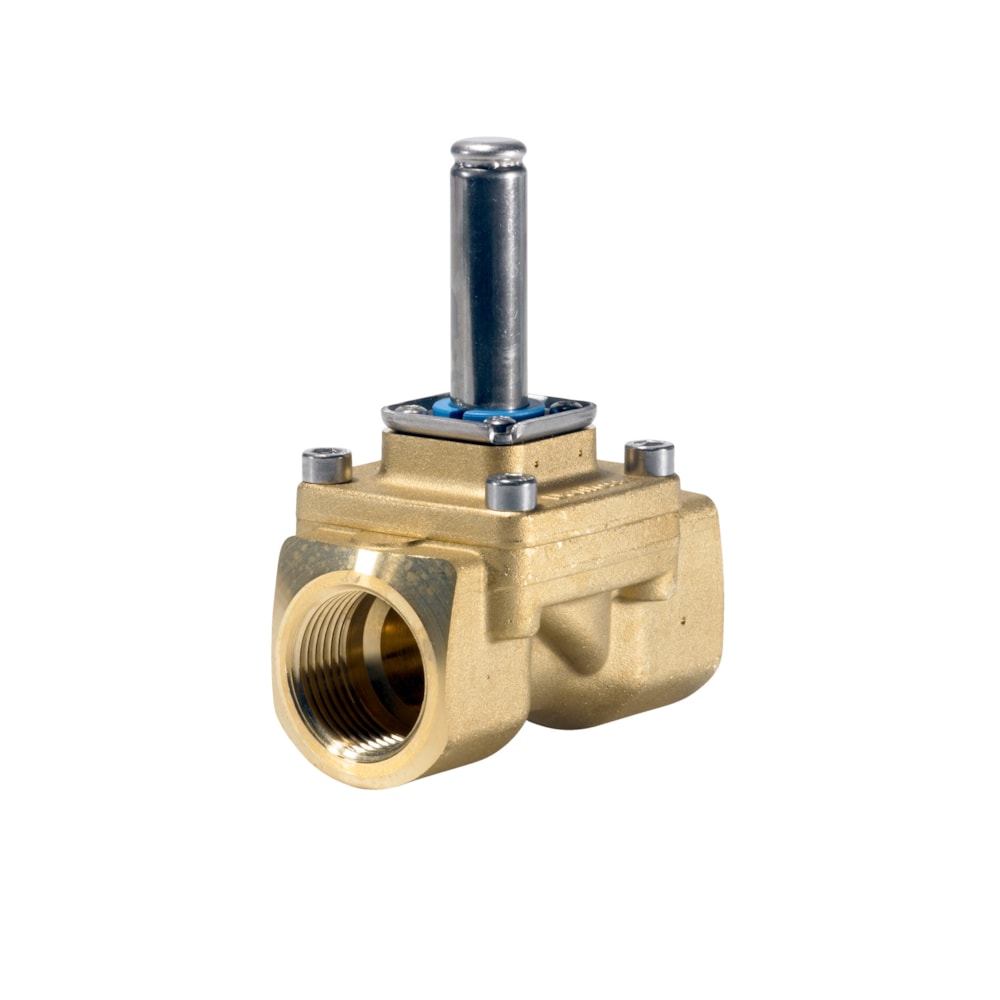

Danfoss solenoid valve EV250B 22BD EPDM — R1", 0-10bar, NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV250B 22BD EPDM — R1", 0-10bar, NC. Reference part number 032U5256.
Technical Specifications
- Code number
- 032U5256
- EAN
- 5702423179190
- Net weight
- 1.03 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 80 °C
- Application
- Closed and Drain
- Approval
- SINTEF
- Body material
- DZR brass
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- DZR brass
- Connection size [in]
- 1
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 8.100 gal/min
- Est. time to close, water [ms]
- 100 ms
- Est. time to open, water [ms]
- 150 ms
- EU RoHS compliance
- Yes with exemptions
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 7.000 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 15.0 bar
- Max. Working Pressure [bar]
- 10.0 bar
- Media recommendations
- Technical & Soft Water
- Media tolerance comments
- -30–120 °C: 0–10 bar; 120–140 °C: 0–4 bar; Slightly aggressive media
- Number of ways
- 2/2
- Operation
- Assisted lift operated
- Orifice size [mm]
- 22.00 mm
- Orifice size fraction [in]
- 7/8 in
- Parts Program name
- EV250B
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV250B
- Seal Material
- EPDM
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV250B 22BD G 1E NC000
- Type designation
- EV250B 22
- Differential pressure [bar]
- 0.000 bar … 10.000 bar
- Medium temperature range [°C]
- -30 °C … 120 °C
- Operating pressure
- 0–10 bar
- Gross weight
- 1.093 Kilogram
- Volume
- 1.295 Liter
- Type
- EV250B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
