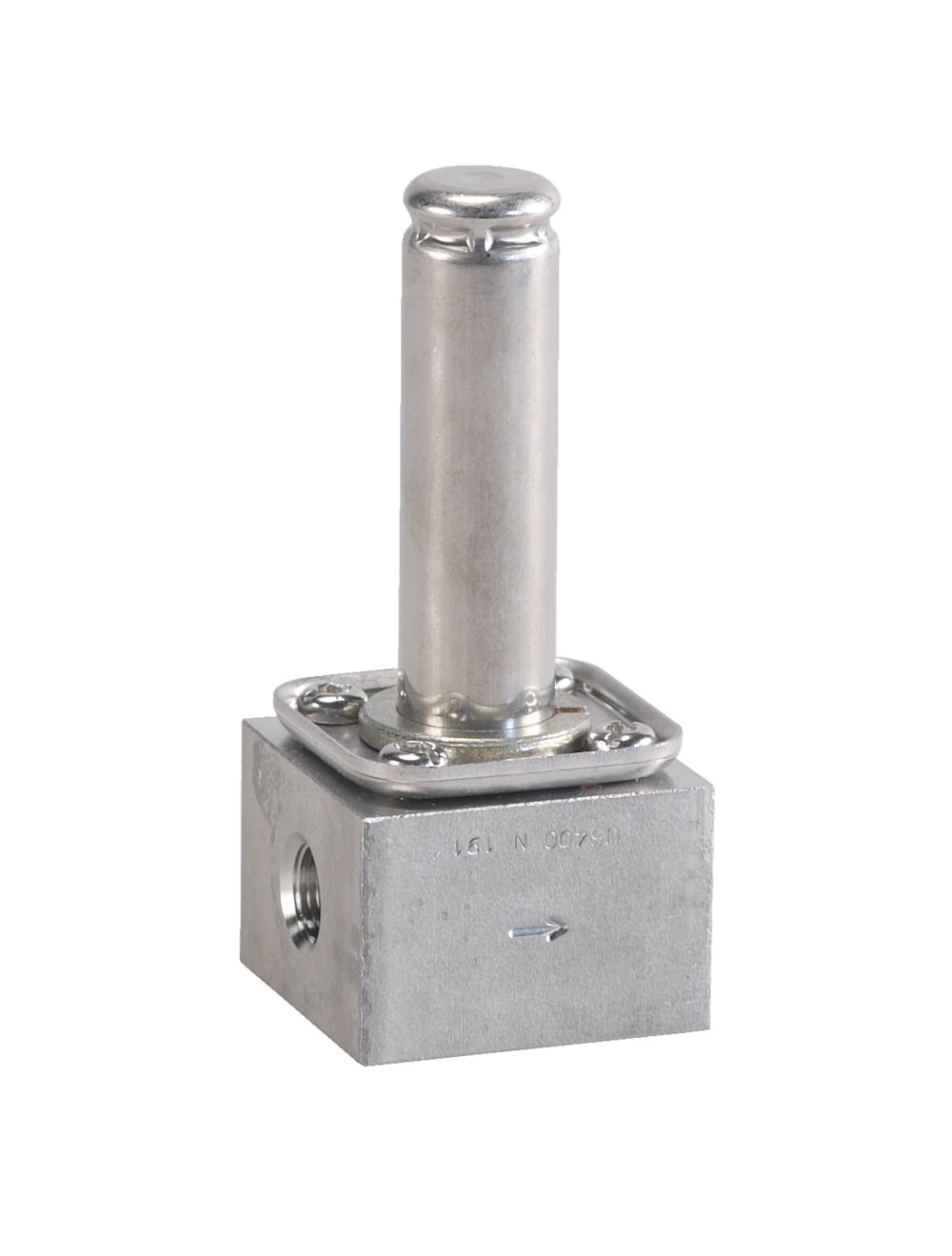

Danfoss solenoid valve EV210B, 1/4" NC — 0/30 bar, rustfrii
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV210B, 1/4" NC — 0/30 bar, rustfrii. Reference part number 032U5801.
Technical Specifications
- Code number
- 032U5801
- EAN
- 5702423054473
- Net weight
- 0.269 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 80 °C
- Application
- Closed and Drain
- Body material
- Stainless steel
- China RoHS exemption clause
- No
- Connection Internal/External
- Internal
- Connection material
- Stainless steel
- Connection size [in]
- 1/4
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 0.090 gal/min
- Est. time to close, water [ms]
- 20 ms
- Est. time to open, water [ms]
- 20 ms
- EU RoHS compliance
- Yes
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 0.080 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 45.0 bar
- Max. Working Pressure [bar]
- 30.0 bar
- Media recommendations
- Water,Brine,Oil,Air
- Media tolerance comments
- Aggressive media
- Number of ways
- 2/2
- Operation
- Direct-operated
- Orifice size [mm]
- 1.50 mm
- Orifice size fraction [in]
- 1/16 in
- Parts Program name
- EV210B
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV210B
- Seal Material
- NBR
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV210B 1.5SS G 14N NC000
- Type designation
- EV210B 1.5
- Differential pressure [bar]
- 0.000 bar … 30.000 bar
- Medium temperature range [°C]
- -10 °C … 90 °C
- Operating pressure
- 0–30 bar
- Process connection
- 1/4 in
- Gross weight
- 0.282 Kilogram
- Volume
- 0.253 Liter
- Type
- EV210B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
