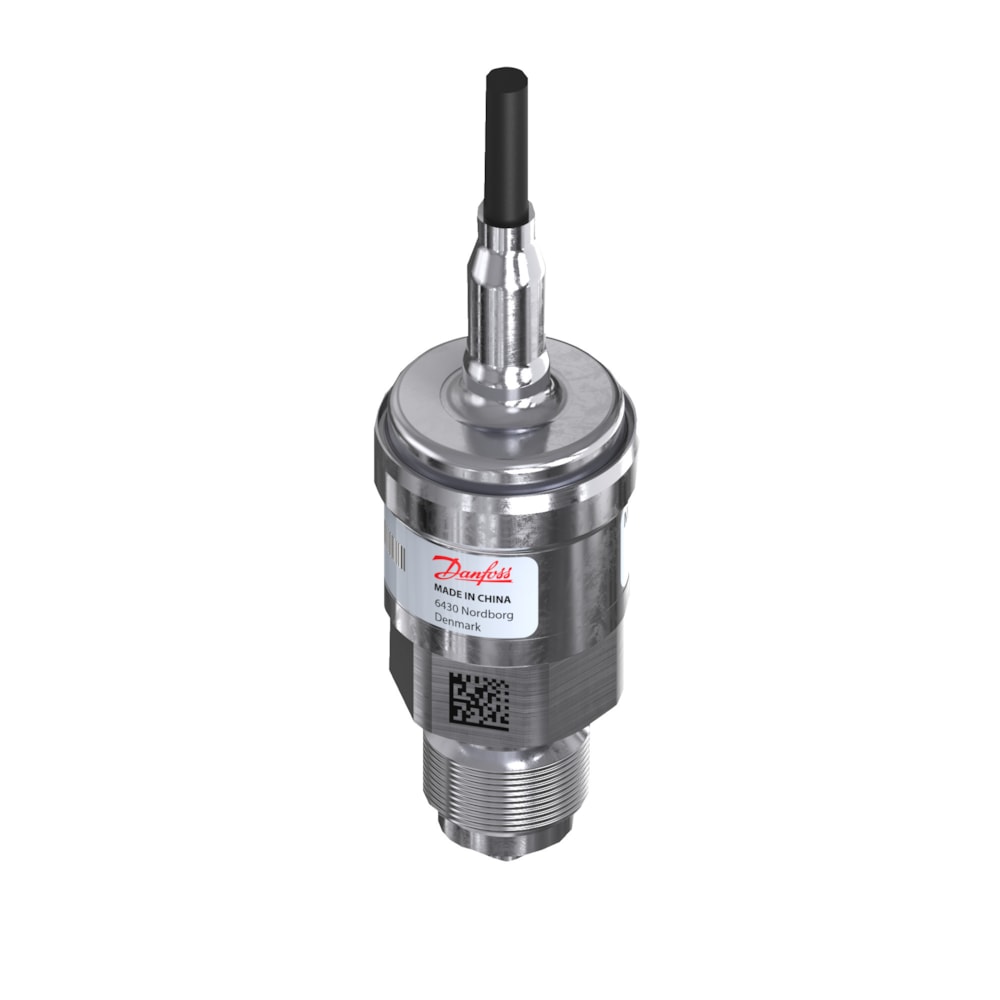

Danfoss pressure transmitter MBS 33, R1/2" — 0/10 Bar, 4-20MA, 2MTR cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss pressure transmitter MBS 33, R1/2" — 0/10 Bar, 4-20MA, 2MTR cable. Reference part number 060G3061.
Technical Specifications
- Code number
- 060G3061
- EAN
- 5702423029808
- Net weight
- 0.258 Kilogram
- - common
- Black
- + supply
- Brown
- Accuracy, max. [±FS%]
- 0.80 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Approval
- ATEX; C UL US UL Recognized; CE
- Cable length [in]
- 79.00 in
- Cable length [m]
- 2.000 m
- CE mark
- Yes
- Electrical conn. comments
- Screened
- Electrical connection
- Cable
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- Flush diaphragm
- No
- High Clipping Level
- 22.40
- Intrinsically safe
- No
- Low Clipping level
- 3.60
- Non-linearity BFSL [±FS%]
- 0.20 %
- Output signal
- Current
- Overload pressure max. [bar]
- 20.0 bar
- Pressure connection HEX [mm]
- 27.0 mm
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure reference
- Gauge (relative)
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBS 33
- Pulse-snubber
- No
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 33-2011-A3AB08-0
- Supply current max. [mA]
- 28 mA
- UL mark
- Yes
- Ambient temperature range [°C]
- -30 °C … 85 °C
- Compensated temp. range [°C]
- 0 °C … 80 °C
- Medium temperature range [°C]
- -40 °C … 85 °C
- Output signal [mA]
- 4 mA … 20 mA
- Pressure range [bar]
- 0.00 bar … 10.00 bar
- Supply voltage [V] DC
- 9.00 V … 32.00 V
- Measuring range
- 0–10 bar
- Gross weight
- 0.322 Kilogram
- Volume
- 1.281 Liter
- Type
- MBS 33
- Product Name Description
- Pressure transmitter
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 5702423029808
Product Documentation
More from Danfoss
Danfoss
Danfoss pressure transmitter DST P40I R1/2" — -1/16bar, 4-20MA, TITAN, plug
078G5012
Danfoss
Danfoss pressure transmitter MBS 3300, R1/4" — Select pressure range ....................
108869
Danfoss
Danfoss MBS 4010 Pressure Transmitter R1/2" 4-20 mA Flush Diaphragm
108870
Danfoss
Danfoss pressure transmitter MBS 4201, 1/2" — -1/16 bar, plug IP65
060G7697
Danfoss
Danfoss pressure transmitter MBS 3200, R1/2" — 0.00 bar - 60.00 bar
060G1879
Danfoss

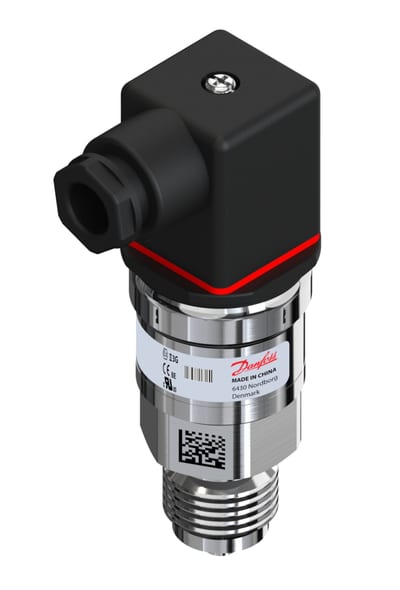

Danfoss pressure transmitter AKS 3000, 1/2" — -1/12 bar, plug IP65
060G1896
Danfoss

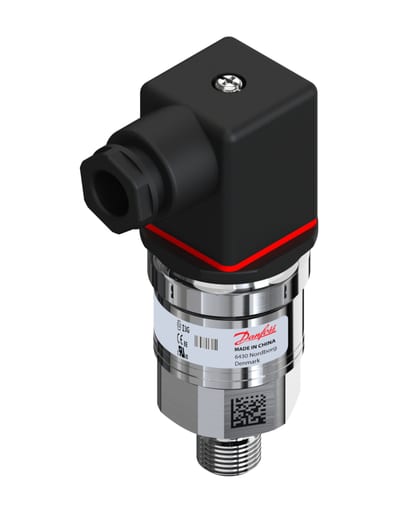

Danfoss pressure transmitter MBS 9200, 1/4" — 0/250MBAR, plug, IP65
