Product Description

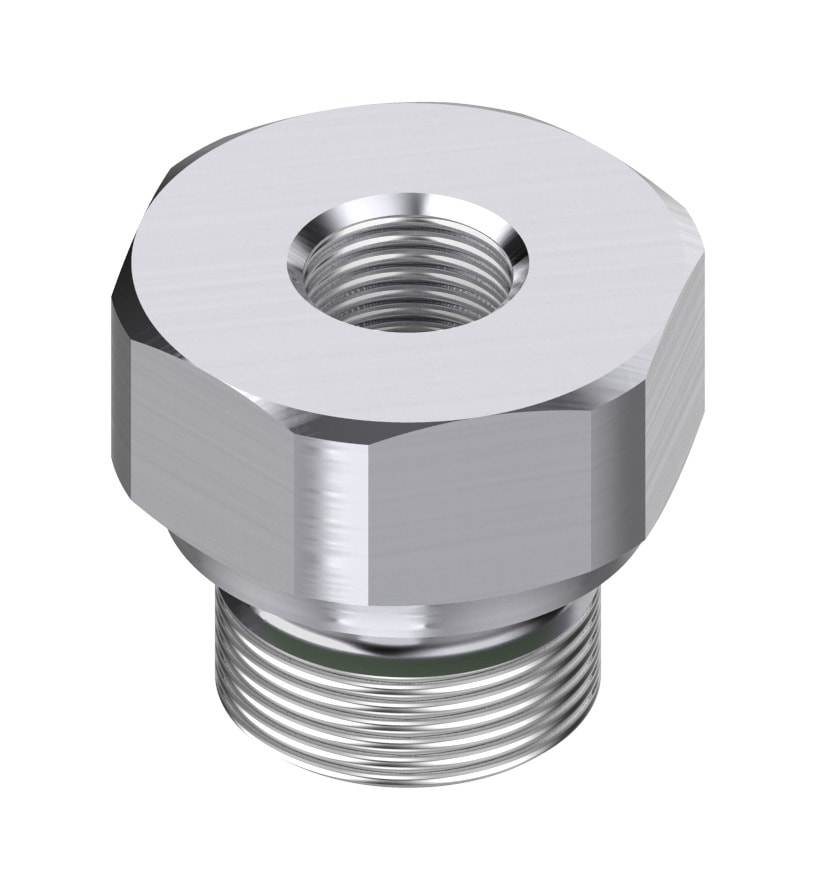

Danfoss isolation valve MBV 2000 — R1/4 Internal X R1/2 External.. Reference part number 061B6002.
Technical Specifications
- Code number
- 061B6002
- EAN
- 5702423133161
- Net weight
- 0.043 Kilogram
- Burst pressure [bar]
- 1500.0 bar
- China RoHS exemption clause
- No
- EU RoHS compliance
- Yes
- External conn. Male/Female
- Male
- External connection size
- 1/2
- External connection standard
- DIN 3852-E
- External connection type
- G
- Internal connection size
- 1/4
- Internal connection standard
- DIN 3852
- Internal connection type
- G
- Max. test pressure [psig]
- 8702.0 psig
- Max. Working Pressure [bar]
- 600.0 bar
- Product group
- Shut-off and regulating valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- MBV 2000
- Specification key
- MBV2000-123
- Width across flats [mm]
- 30 mm
- Ambient temperature range [°C]
- -20 °C … 200 °C
- Gross weight
- 0.112 Kilogram
- Volume
- 0.089 Liter
- Type
- MBV 2000
- Product Name Description
- Isolation valve
- Ambient temperature range [°C] [max]
- 200 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 382 °F
- Ambient temperature range [°F] [min]
- -4 °F
- China RoHS compliance
- Yes
- REACH Candidate Strip substances
- No
