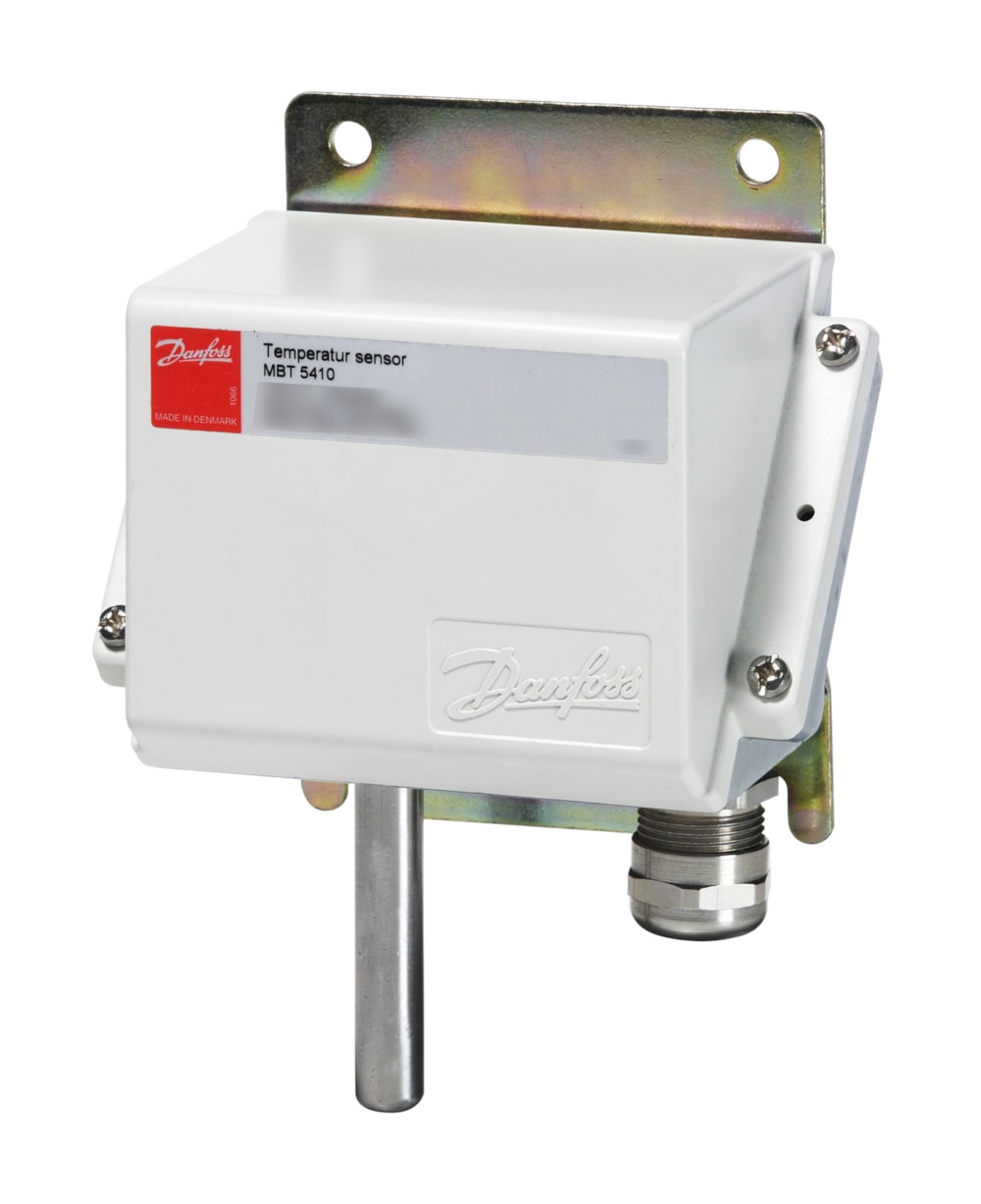

Danfoss temperature sensor MBT 5410, PT-100 — 10mm smooth sensor x L60MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature sensor MBT 5410, PT-100 — 10mm smooth sensor x L60MM. Reference part number 084Z5065.
Technical Specifications
- Code number
- 084Z5065
- EAN
- 5702423141777
- Net weight
- 0.608 Kilogram
- Ambient temperature max. [°C]
- 85 °C
- Approval
- CE
- CE mark
- Yes
- Electrical connection
- Box (metal/plastic)
- Electrical connection size
- 4 terminals
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- Insertion length [mm]
- 60 mm
- Insertion type
- Fixed
- Number of terminals [pcs]
- 4 pc
- Output signal
- Ohm
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBT 5410
- Protection tube diameter [mm]
- 10.0 mm
- Protection tube material
- AISI 316 TI
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Type designation
- MBT 5410-000-060-020-0000
- Wires [pcs]
- 4 pc
- Measuring range [°C]
- -50 °C … 100 °C
- Temperature range [°C]
- -50 °C … 100 °C
- Length
- 60 mm
- Gross weight
- 0.702 Kilogram
- Volume
- 2.447 Liter
- Type
- MBT 5410
- Product Name Description
- Temperature sensor
