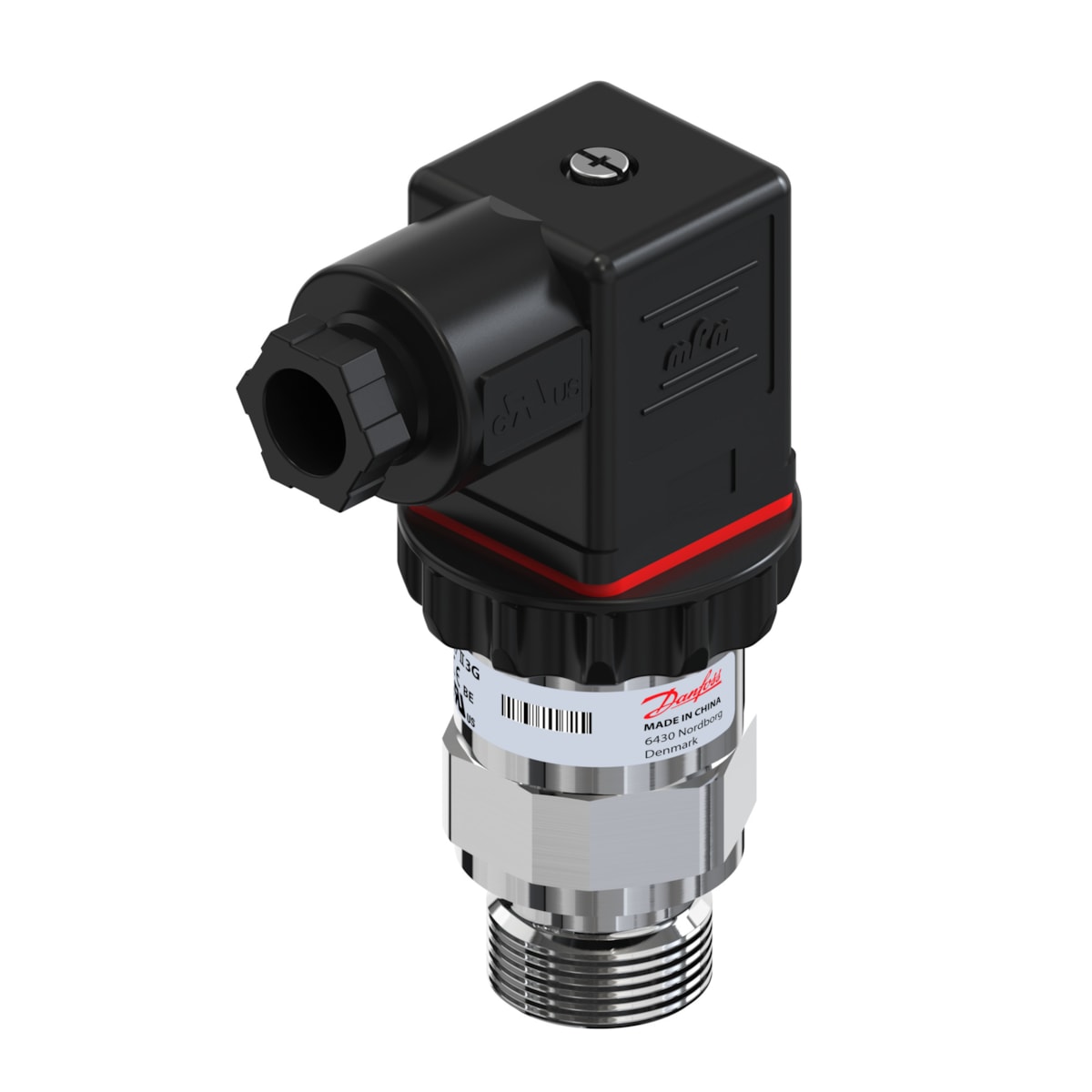

Danfoss pressure transmitter DST P40I R1/2" — -1/16bar, 4-20MA, TITAN, plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss pressure transmitter DST P40I R1/2" — -1/16bar, 4-20MA, TITAN, plug. Reference part number 078G5012.
Technical Specifications
- Code number
- 078G5012
- EAN
- 5702428656894
- Net weight
- 0.12 Kilogram
- - common
- Pin 2
- + supply
- Pin 1
- Approval
- C UL US UL Recognized; CE
- Burst pressure [bar]
- 50.0 bar
- CE mark
- Yes
- Electrical conn. Male/Female
- Male
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- Output signal
- Current
- Overload pressure max. [bar]
- 35.0 bar
- Pressure connection HEX [mm]
- 27.0 mm
- Pressure connection notes
- A
- Pressure connection size
- 1/2
- Pressure connection standard
- ISO 1179-2
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure reference
- Gauge (relative)
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- DST P40I
- Pulse-snubber
- No
- Specification key
- DST P40I-9011-A1GB08-1
- UL mark
- Yes
- Ambient temperature range [°C]
- -25 °C … 85 °C
- Compensated temp. range [°C]
- 0 °C … 80 °C
- Medium temperature range [°C]
- -15 °C … 85 °C
- Output signal [mA]
- 4 mA … 20 mA
- Pressure range [bar]
- -1.00 bar … 16.00 bar
- Supply voltage [V] DC
- 9.00 V … 32.00 V
- Measuring range
- -1–16 bar
- Material
- Titanium
- Gross weight
- 0.127 Kilogram
- Volume
- 0.251 Liter
- Type
- DST P40I
- Product Name Description
- Pressure transmitter
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -25 °C
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- EU RoHS exemption clause
- 6(c)
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -15 °C
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 5702428656894
