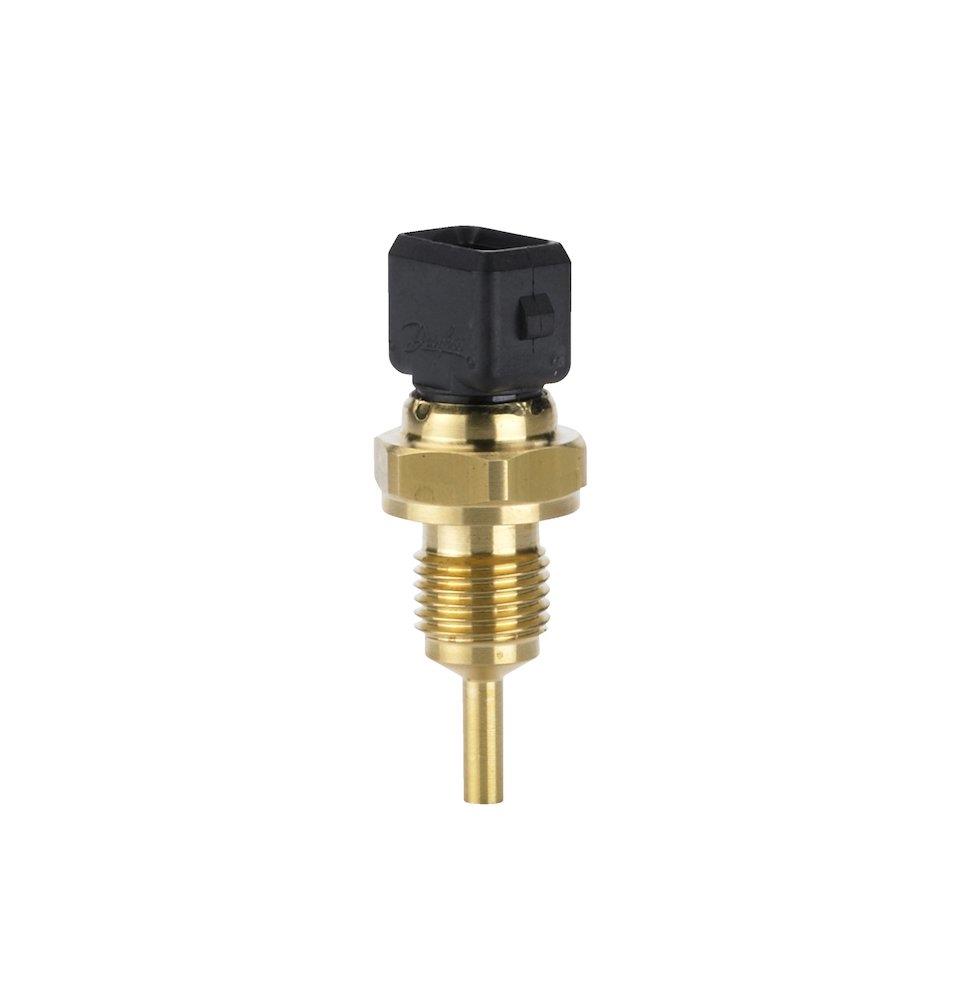

Danfoss MBT 3270 Sensor - 1/4", 28mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 Sensor. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1/4", length 28 mm. Supplied under manufacturer part number 084Z2012, EAN 5702423286409, HS code 9025.19, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1/4"
- Length
- 28 mm
- Type
- MBT 3270
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.3450 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90251900
- HS code
- 9025.19
- Manufacturer part number
- 084Z2012
- VVS number
- 475184028
- EAN
- 5702423286409
- Net weight
- 0.026 Kilogram
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Brass
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- AMP Junior Power Timer
- Electrical connection size
- 2 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.1 in
- Insertion length [mm]
- 28 mm
- Insertion type
- Fixed
- Legacy part number
- 11229454
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Output signal
- Ohm
- Process connection Male/Female
- Male
- Process connection material
- Brass
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.165 in
- Protection tube diameter [mm]
- 4.2 mm
- Protection tube material
- BRASS
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Type designation
- MBT 3270-02000-028-00300-000
- Wires [pcs]
- 2 pc
Standards & Compliance
- HS Code
- 9025.19
Cross References
- MPN 084Z2012
- EAN 5702423286409
- VVS 475184028
Product Documentation
