Product Description

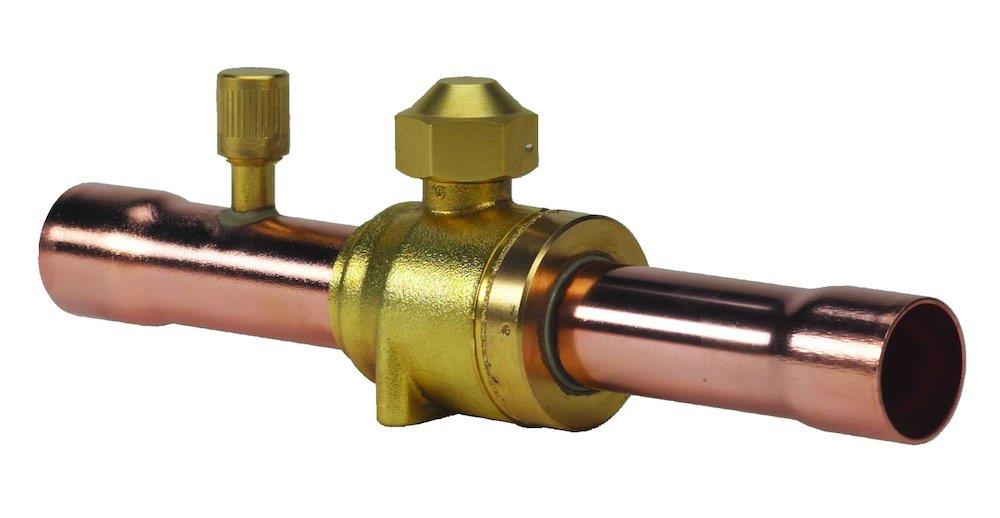

Danfoss GBCH Ball Valve CO2 with service port. Shut-off valves (Refrigeration technology / Cooling technical components / Isolation valves). Principal data: connection 7/8" solder, kv value 24.47 m³/h, working pressure max 90 bar, temperature range -40-100 °C. Supplied under manufacturer part number 009L7589, HS code 8481.80, country of origin China.
Technical Specifications
- Product type
- Shut-off valves
- Product group
- Cooling technical components
- Connection
- 7/8" solder
- Kv value
- 24.47 m³/h
- Working pressure max
- 90 bar
- Temperature range
- -40-100 °C
- Coolant
- R744
- Type designation
- GBCH 22s
- Sales unit
- Pack
- Carbon footprint (EPD)
- 3.7798 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84818081
- HS code
- 8481.80
- Manufacturer part number
- 009L7589
- EAN
- 5702428514934
- Net weight
- 0.464 Kilogram
- Type
- GBCH 22s
- Access port
- Yes
- Approval
- UKCA
- Body material
- Brass
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- Connection Code
- (3002:X:22)
- Connection material
- Copper
- Cv value [gal/min]
- 28.29 gal/min
- Direction
- Straightway
- Equipment
- Cap w. wire seal
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 2-way arrow
- Fluid Group
- 2
- Ignition source assessment
- Yes
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 7/8 in
- Kv value [m³/h]
- 24.47 m³/h
- Max. Working Pressure [bar]
- 90 bar
- Max. Working Pressure [psig]
- 1305 psig
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 7/8 in
- Parts included
- Schrader valve
- PED category
- Art. 4, par. 3
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R744
- Temperature range [°C] [max]
- 100 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 212 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 009L7589
Product Documentation
More from Danfoss
Danfoss
Danfoss RTX Valve Set white RAL 9016 - R 1/2", 0.44M³/h 2281897
013G4136
Danfoss
Danfoss Coil - 24 V DC, 5W
042N0803
Danfoss
Danfoss AMZ 112 Zone Valve - coupling, 3/4", 2-Way, 28M³/h, 20, 24V AC
082G5401
Danfoss
Danfoss ECL Comfort 120 Weather Compensator with weekly schedule - 230V AC
100B1200
Danfoss
Danfoss VFM 2 Seat Valve 2-Way - 100, Flange, 160M³/h
10175446
Danfoss
Danfoss BFP 41 Oil pump L3 - Left rotation, 8mm shaft
071N8213
Danfoss
Danfoss MBS 33 Pressure Transmitter - 1/2", 0-1bar
060G3036
Danfoss
Danfoss MBS 1700 Pressure Transmitter - 1/4", 0-6bar
10248565
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
