Product Description

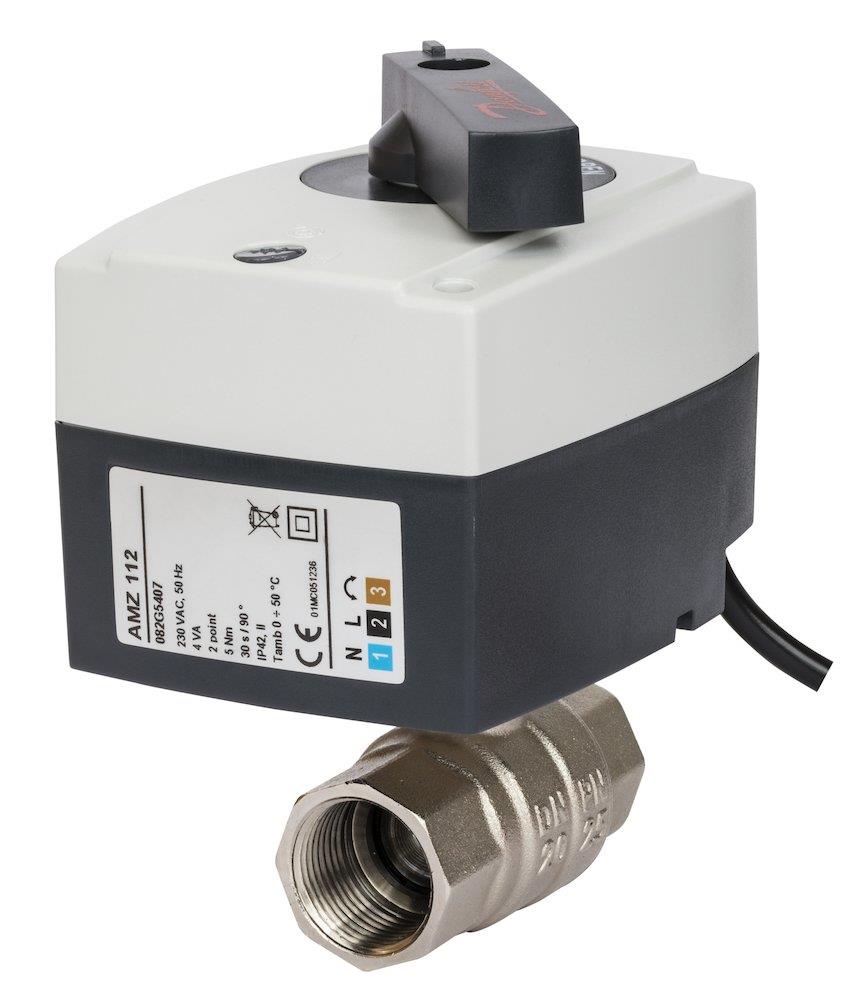

Danfoss AMZ 112 Zone Valve. Valves and ball valves (Plumbing / Heat / Fittings and indicators, etc.). Principal data: thread type Socket, connection 3/4", type 2-way, kvs value 28 m³/h. Supplied under manufacturer part number 082G5401, EAN 5710104079721, HS code 8481.90, country of origin Slovenia.
Technical Specifications
- Product type
- Valves and ball valves
- Product group
- Heat
- Thread type
- Socket
- Connection
- 3/4"
- Type
- 2-way
- Kvs value
- 28 m³/h
- DN dimension
- 20
- Supply voltage
- 24 V AC
- Diameter
- 20 mm
- Media temperature min
- 2 °C
- Media temperature max
- 110 °C
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 8.4846 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 082G5401
- VVS number
- 461090406
- EAN
- 5710104079721
Standards & Compliance
- HS Code
- 8481.90
Cross References
- MPN 082G5401
- EAN 5710104079721
- VVS 461090406
Product Documentation
