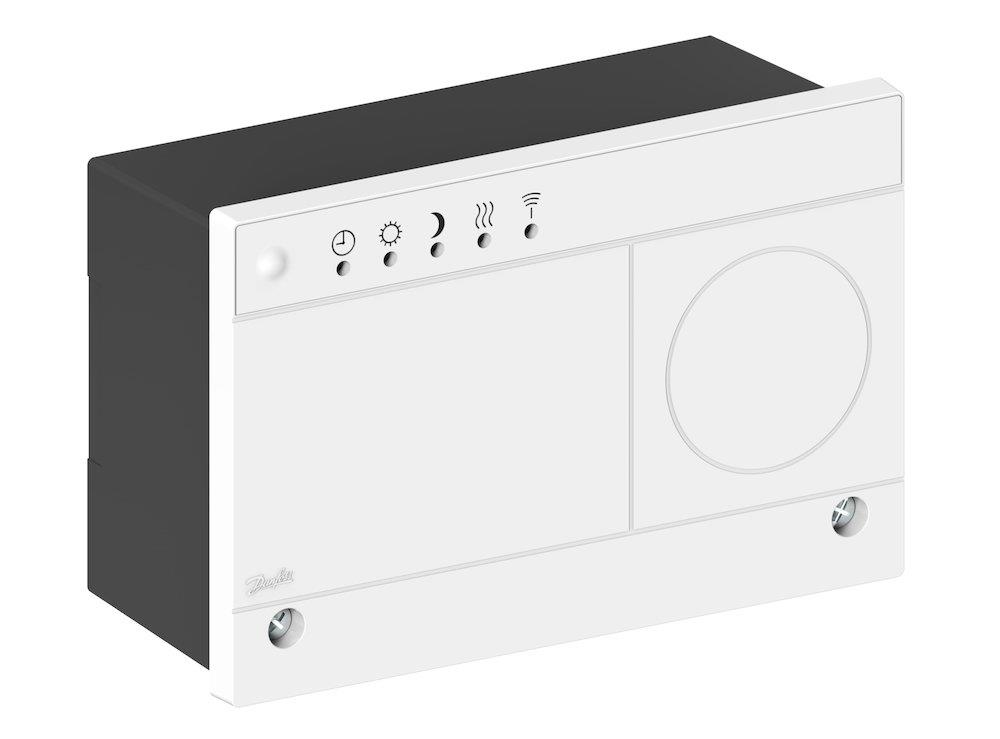

Danfoss ECL Comfort 120 Weather Compensator with weekly schedule - 230V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ECL Comfort 120 Weather Compensator with weekly schedule. Weather compensation system (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 230 V AC. Supplied under manufacturer part number 100B1200, EAN 5715162499177, HS code 8537.10, country of origin Slovenia.
Technical Specifications
- Product type
- Weather compensation system
- Product group
- Heat
- Supply voltage
- 230 V AC
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 3.5454 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 85371091
- HS code
- 8537.10
- Manufacturer part number
- 100B1200
- VVS number
- 460944120
- EAN
- 5715162499177
- Net weight
- 0.377 Kilogram
- Type
- ECL Comfort 120
- Actuator output load [VA]
- 15 VA
- Ambient humidity [% RH] [Max]
- 95 %
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- -5 °C
- Application source
- On-board
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.3
- Communications
- Modbus (galvanically isolated)
- Description
- ECL Comfort 120
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- General functions
- Alarm functions
- Grade of enclosure
- IP41
- Heat curve setting for heating circuit
- 6 points
- Number of 3-point motor control outputs
- 1
- Number of comfort periods per day
- 3
- Number of digital inputs
- 1
- Number of heating circuits
- 1
- Number of pumps
- 1
- Number of relay outputs
- 1
- Number of Sensor inputs
- 4 pc
- Power consumption [W]
- 3 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Relay output inductive load [A]
- 2 A
- Relay output ohmic load [A]
- 3 A
- Relay output voltage [V] AC
- 230 V
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Supply voltage [V] AC
- 230 V
- Supply voltage [V] AC [max]
- 244 V
- Supply voltage [V] AC [min]
- 207 V
- Supply voltage frequency [Hz]
- 50 Hz
- Temperature sensors type
- Pt 1000
- Time switch power backup [h]
- 10 h
- Time switch type
- Week
- User input type
- Push buttons
Standards & Compliance
- HS Code
- 8537.10
Cross References
- MPN 100B1200
- EAN 5715162499177
- VVS 460944120
