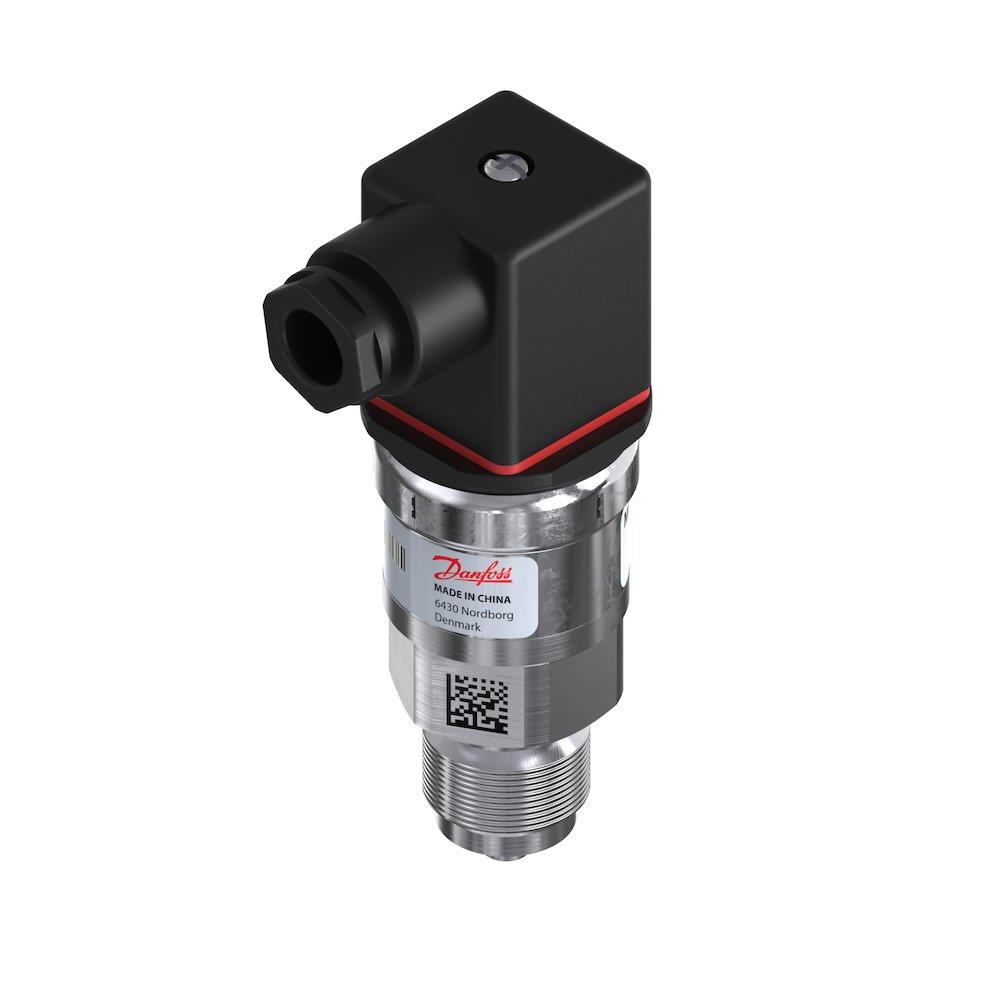

Danfoss MBS 33 Pressure Transmitter - 1/2", 0-1bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 33 Pressure Transmitter. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1/2", setting range 0-1 bar. Supplied under manufacturer part number 060G3036, EAN 5702423030583, HS code 9026.20, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1/2"
- Setting range
- 0-1 bar
- Type
- MBS 33
- Carbon footprint (EPD)
- 1.8033 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90262020
- HS code
- 9026.20
- Manufacturer part number
- 060G3036
- VVS number
- 475175036
- EAN
- 5702423030583
- Net weight
- 0.186 Kilogram
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702423030583
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 2 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 1 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 14.5 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 33-1021-A1AB08-0
- Supply current max. [mA]
- 28 mA
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9026.20
Cross References
- MPN 060G3036
- EAN 5702423030583
- VVS 475175036
Product Documentation
