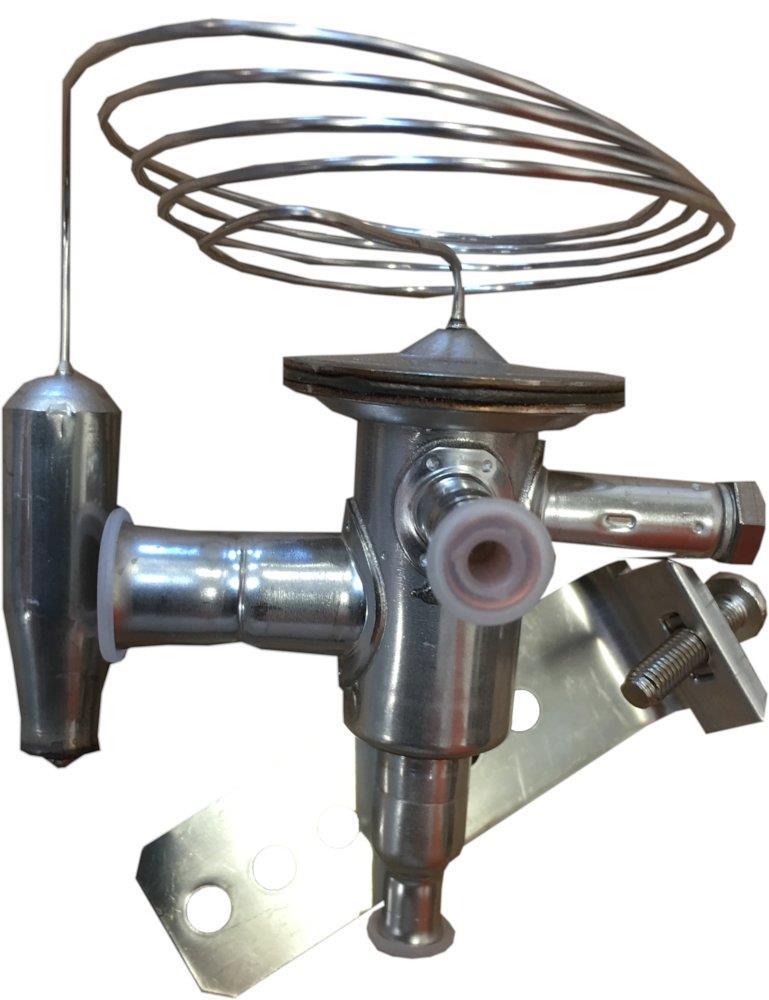

Danfoss TUBE Thermostatic expansion valve solder/solder - 40-10°C, TUBE R407C dyse 9
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TUBE Thermostatic expansion valve solder/solder. Thermostatic expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: working temperature -40-10 °C, type designation TUBE R407C dyse 9. Supplied under manufacturer part number 068U1939, EAN 5702422167815, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Thermostatic expansion valves
- Product group
- Cooling technical components
- Working temperature
- -40-10 °C
- Type designation
- TUBE R407C dyse 9
- Sales unit
- Pack
- Carbon footprint (EPD)
- 1.1534 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 068U1939
- EAN
- 5702422167815
- Net weight
- 0.151 Kilogram
- Type
- TUBE
- Approval
- EAC
- Body material
- Stainless steel
- Capillary tube length [in]
- 31 in
- Capillary tube length [mm]
- 800 mm
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3002:X:10; 3002:X:13)
- Connection material
- Bi-metal: Steel/copper
- Direction
- Angleway
- Equalization connection type
- Solder, ODF
- Equalization size [in]
- 1/4 in
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Laser engraved 1-way arrow
- Fluid Group
- 2
- Identical product
- 068U2711
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- Orifice capacities [kW]
- 17 kW
- Orifice capacities [TR]
- 4.8 TR
- Orifice size
- 9
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/2 in
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- Pressure equalization
- Externally equalized
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R407C
- Seal
- No
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
- UL approved refrigerants
- R407C
- UL mark
- Yes
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702422167815
- MPN 068U1939
