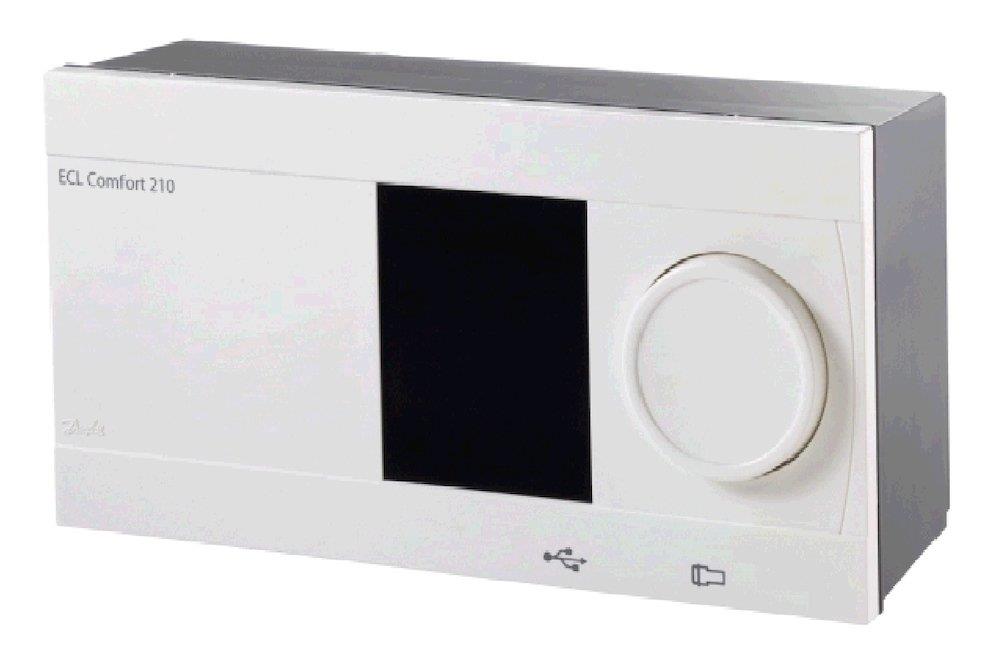

Danfoss ECL Comfort 210 Regulator - 230V AC, ECL 210
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ECL Comfort 210 Regulator. Weather compensation system (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 230 V AC, fits with ECL 210. Supplied under manufacturer part number 087H3020, EAN 5710104013206, HS code 9032.89, country of origin Denmark.
Technical Specifications
- Product type
- Weather compensation system
- Product group
- Heat
- Supply voltage
- 230 V AC
- Fits with
- ECL 210
- Leakage class
- IP 41
- Ambient temperature min
- 0 °C
- Ambient temperature max
- 55 °C
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 4.7321 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 087H3020
- VVS number
- 460944210
- EAN
- 5710104013206
- Net weight
- 0.439 Kilogram
- Type
- ECL Comfort 210
- Actuator output load [VA]
- 15 VA
- Ambient humidity [% RH] [Max]
- 65 %
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application source
- By ECL application key
- Approval
- CE
- Approval standard
- EMC-Directive: 2004/108/EC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communications
- ECL 485 Bus (non-galvanically isolated)
- Description
- ECL COMFORT 210/230 V
- DHW functions
- Anti-bacteria program
- Digital inputs type
- 12 V pull-up possible
- Display type
- LCD dot matrix
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- General functions
- Alarm functions
- Grade of enclosure
- IP41
- Heat curve setting for heating circuit
- 6 points
- In scope of WEEE
- Yes
- Number of 3-point motor control outputs
- 2
- Number of comfort periods per day
- 3
- Number of DHW circuits
- 1
- Number of DHW storage tank circuits
- 1
- Number of digital inputs
- 2
- Number of heating circuits
- 2
- Number of pumps
- 4
- Number of relay outputs
- 4
- Number of Sensor inputs
- 8 pc
- Power consumption [W]
- 5 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Relay output inductive load [A]
- 2 A
- Relay output ohmic load [A]
- 4 A
- Relay output voltage [V] AC
- 230 V
- Sensor cable length [m]
- 200 m
- Sensor cable length [mm]
- 200 mm
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Supply voltage [V] AC
- 230 V
- Supply voltage [V] AC [max]
- 244 V
- Supply voltage [V] AC [min]
- 207 V
- Supply voltage frequency [Hz]
- 50 Hz
- Temperature sensors type
- Pt 1000, configurable input
- Time switch power backup [h]
- 72 h
- Time switch type
- Week
- User input type
- Display
Standards & Compliance
- HS Code
- 9032.89
Cross References
- MPN 087H3020
- EAN 5710104013206
- VVS 460944210
Product Documentation
More from Danfoss
Danfoss
Danfoss KP1E Pressure Switch solder - 0,2-7,5bar, 1/4" flare, Auto, KP1E
5702428036818
Danfoss
Danfoss Pressure Switch - 10248362
Danfoss
Danfoss MBT 5252 Sensor - 1/2", 150mm
10248064
Danfoss
Danfoss KP Thermostat - 40 - 65°C, 0°C, 35°C, 2M, Diff. 3,5 - 16 / 2,5 - 12 °C, F, KP 75
10024107
Danfoss
Danfoss T 2 Thermostatic expansion valve flare/solder - R404A, R507, External, -60-25°C, TES 2 R404A/R507
5702422126119
Danfoss
Danfoss MBS 5100 Pressure Transmitter - 1/4", 0-4bar
10048387
Danfoss
Danfoss Gear Motor - 10092547
Danfoss

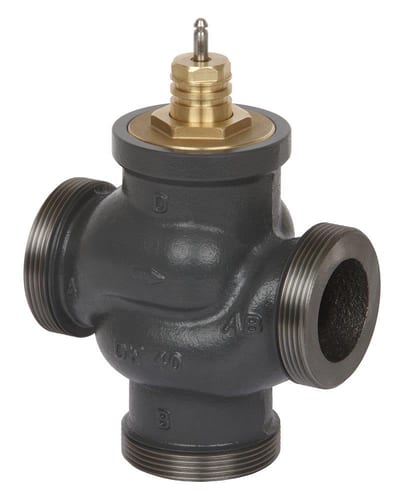

Danfoss VFG 3 Seat Valve 3-Way - 25, 1 1/2", Nipple, 10M³/h
