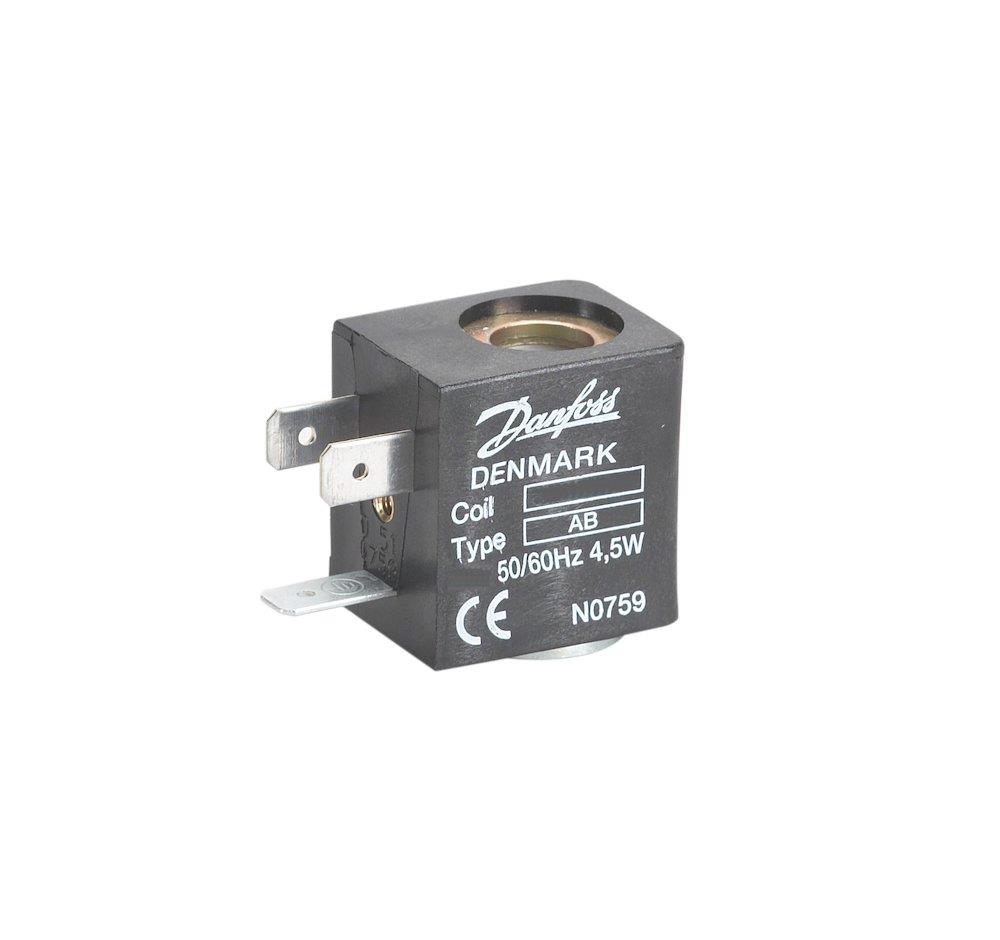

Danfoss Coil - 240 V AC, 4,5W
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Coil. Coils (Plumbing / Heat / Valves for heating and cooling systems). Principal data: voltage 240 V AC, power 4.5 W. Supplied under manufacturer part number 042N0801, EAN 5702423049769, HS code 8505.90, country of origin Italy.
Technical Specifications
- Product type
- Coils
- Product group
- Heat
- Voltage
- 240 V AC
- Power
- 4.5 W
- Frequency
- 50/60 Hz
- Carbon footprint (EPD)
- 0.6600 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 85059090
- HS code
- 8505.90
- Manufacturer part number
- 042N0801
- VVS number
- 470170240
- EAN
- 5702423049769
- Net weight
- 0.05 Kilogram
- Type
- AB240C
- Actuator size
- 9 mm
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Coil connection
- DIN Spade
- Coil fastening
- Finger screw
- Colour
- Black
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- In scope of WEEE
- Yes
- Power consumption [W]
- 4.5 W
- Power consumption [W] 50Hz
- 4.5 W
- Power consumption [W] 60Hz
- 4.5 W
- REACH Candidate Strip substances
- No
- Supply voltage 50Hz Max [V]
- 240 V
- Supply voltage 60Hz Max [V]
- 240 V
- Supply voltage [V] AC
- 240 V
- Type designation
- AB240C
Standards & Compliance
- HS Code
- 8505.90
Cross References
- MPN 042N0801
- EAN 5702423049769
- VVS 470170240
