Product Description

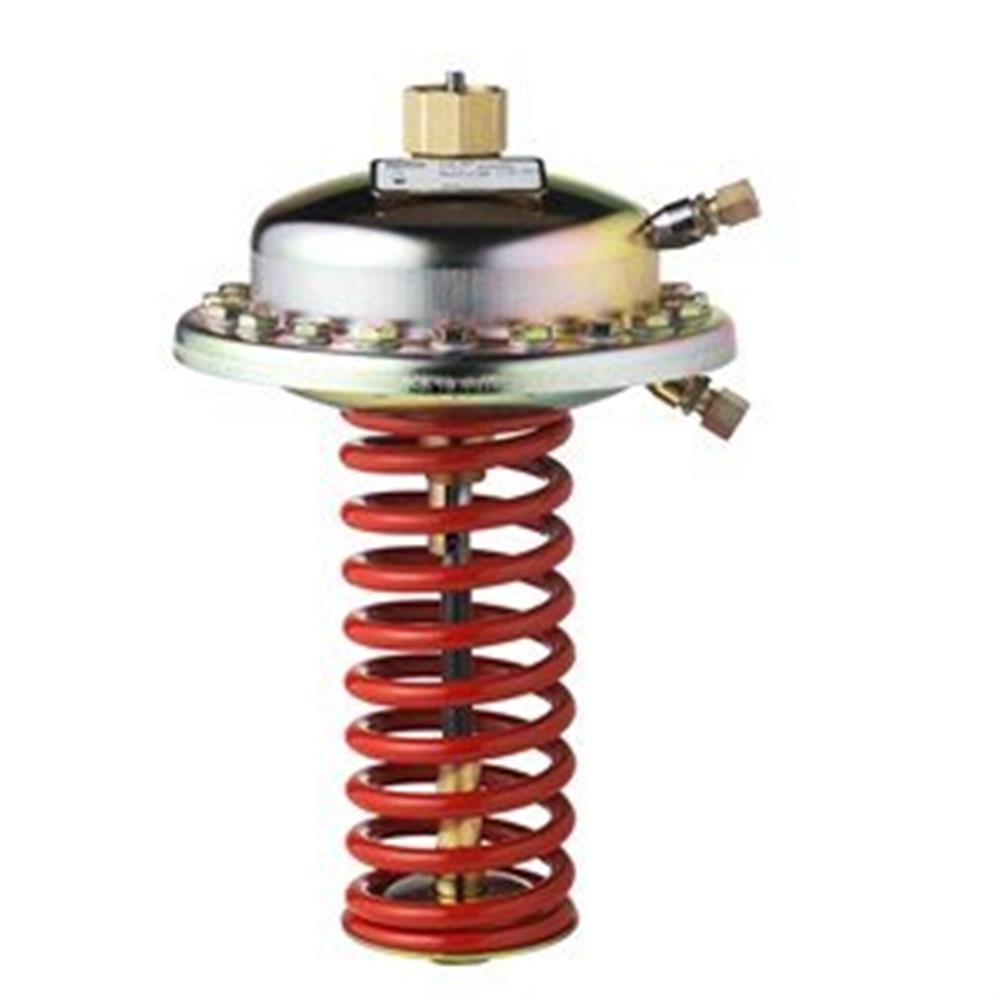

Danfoss AFP Actuator. AVP & accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 15-250. Supplied under manufacturer part number 003G1017, EAN 5702421808313, HS code 8481.90, country of origin Slovenia.
Technical Specifications
- Product type
- AVP & accessories
- Product group
- Heat
- DN dimension
- 15-250
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 68.8431 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 003G1017
- VVS number
- 406477310
- EAN
- 5702421808313
- Net weight
- 11.57 Kilogram
- Type
- AFP
- Actuator size [cm²]
- 250 cm²
- China RoHS compliance
- Out of scope
- Colour
- Yellow
- Description
- AFP PB25 0,1-0,7 250cm2 yellow
- Diameter [mm] [Max]
- 250 mm
- Diameter [mm] [Min]
- 15 mm
- Differential pressure setting [bar] [Max]
- 0.7 bar
- Differential pressure setting [bar] [Min]
- 0.1 bar
- EU RoHS compliance
- Out of scope
- Flow control
- No
- Flow limitation
- No
- Function
- Diff. press. controller
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- 2 °C
- Mounting version
- Free
- Operating pressure [bar] [Max]
- 25 bar
- Pressure class
- PN 25
- Pressure controller
- Differential pressure controller
- Pressure nominal [bar]
- 25 bar
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Setting Type
- Adjustable
- Stroke [mm]
- 7 mm
Standards & Compliance
- HS Code
- 8481.90
Cross References
- MPN 003G1017
- EAN 5702421808313
- VVS 406477310
