Product Description

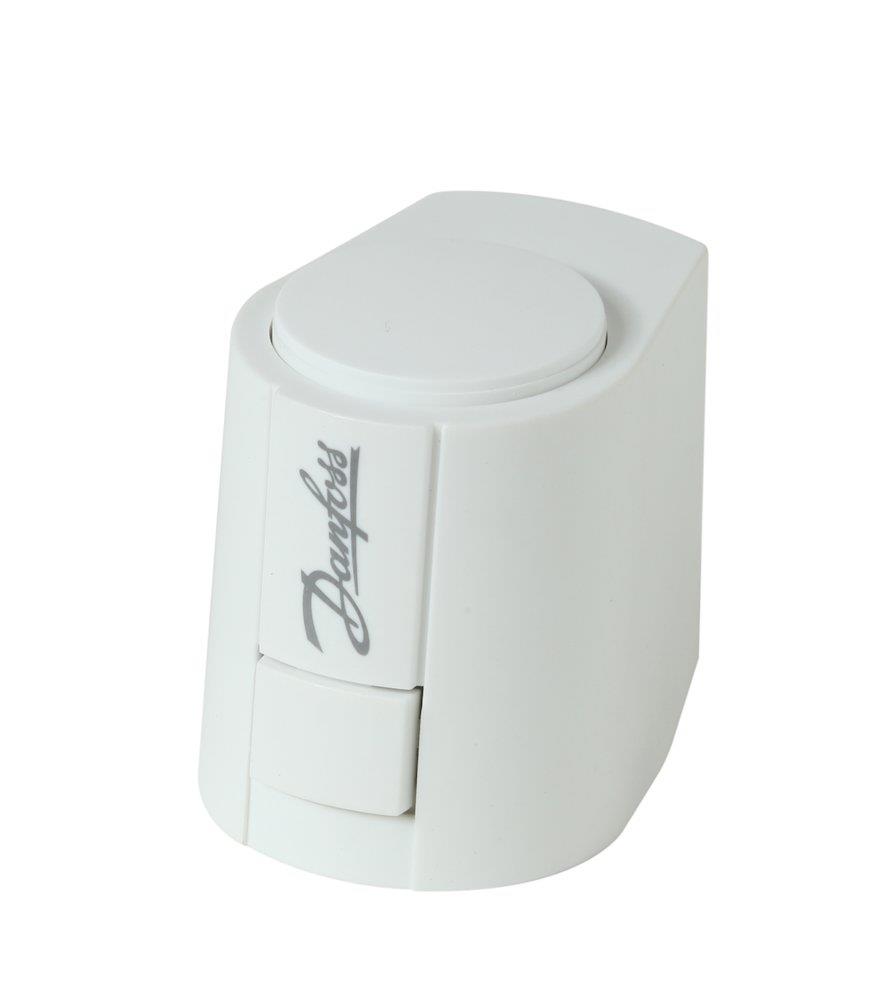

Danfoss ABNM A5 LIN Thermo Actuator. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 10-32, supply voltage 24 V AC. Supplied under manufacturer part number 082F1161, EAN 5702420124452, HS code 8481.90, country of origin Denmark.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 10-32
- Supply voltage
- 24 V AC
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.6369 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 082F1161
- VVS number
- 406848800
- EAN
- 5702420124452
- Net weight
- 0.108 Kilogram
- Type
- ABNM A5 0-10V
- Approval standard
- EC EN 60730
- Cable length [m]
- 0 m
- China RoHS compliance
- Out of scope
- Compatibility with AB-QM size
- DN 10-32
- Connection size
- M 30 x 1.5
- Control characteristic
- LIN
- Control input signal Y [V]
- 0 - 10 V
- Control signal type
- Modulating
- De-energized position
- Normally closed
- Description
- ABNM A5 LIN, 24 V, 5 mm, Normally Closed thermal actuator
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP54
- Label product
- Yes
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Stroke [mm]
- 5 mm
- Supply voltage [V]
- 24 V AC
Standards & Compliance
- HS Code
- 8481.90
Cross References
- MPN 082F1161
- EAN 5702420124452
- VVS 406848800
Product Documentation
More from Danfoss
Danfoss
Danfoss VS 2 Seat Valve 2-Way - 15, 3/4", Nipple, 0.63M³/h
065F2113
Danfoss
Danfoss TWA-Q Thermo Actuator with halogen-free cable - 10-32, 230V AC
082F1610
Danfoss
Danfoss Spare Part Set - EV220/228BW 15/50 U aktuator
132U8082
Danfoss
Danfoss Rotalock Valve Set - 1 1/4" Rotalock x 7/8" solder, 1 3/4" Rotalock x 1 1/8" solder
7703008
Danfoss
Danfoss T2/TE2 Nozzle insert flare - 4, T2 - serie, Dyse 04 T2
068-2007
Danfoss
Danfoss AVTB 25 Water Valve with muff connection - 20°C, 60°C, 5.5M³/h, 25
672493
Danfoss
Danfoss GBCH Ball Valve CO2 with service port - 7/8" solder, 24.47M³/h, 90bar, -40-100°C, R744, GBCH 22S
009L7589
Danfoss
Danfoss RTX Valve Set white RAL 9016 - R 1/2", 0.44M³/h 2281897
013G4136
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 082F1161?
- 082F1161 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 082F1161.
- What is the HS code for 082F1161?
- The customs tariff (HS) code for 082F1161 is 8481.90.
- Who manufactures 082F1161?
- 082F1161 is a Danfoss product in the Valves range.
- Is a datasheet available for 082F1161?
- Yes — the 082F1161 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 082F1161?
- The minimum order quantity is 1.
- Is 082F1161 available?
- Yes — 082F1161 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
