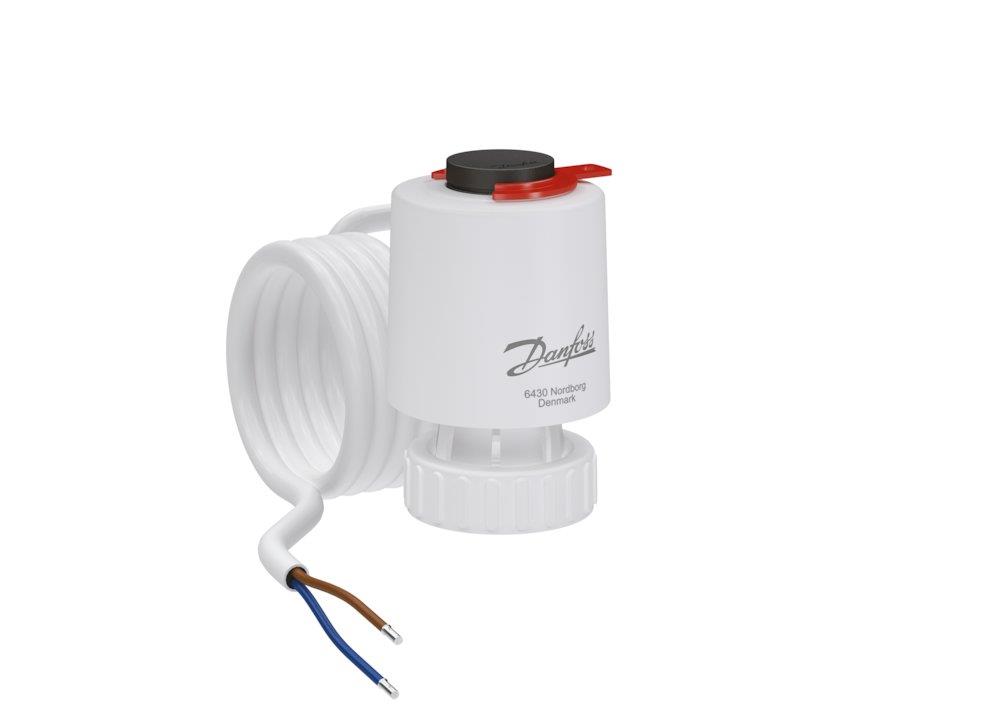

Danfoss TWA-Q Thermo Actuator with halogen-free cable - 10-32, 230V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TWA-Q Thermo Actuator with halogen-free cable. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 10-32, supply voltage 230 V AC. Supplied under manufacturer part number 082F1610, EAN 5702425243189, HS code 8412.80, country of origin Bulgaria.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 10-32
- Supply voltage
- 230 V AC
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 1.2623 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 84128080
- HS code
- 8412.80
- Manufacturer part number
- 082F1610
- VVS number
- 460956010
- EAN
- 5702425243189
- Net weight
- 0.209 Kilogram
- Type
- TWA-Q
- Actuator type
- Thermal
- Ambient temperature [°C] [max]
- 60 °C
- Ambient temperature [°C] [min]
- 2 °C
- Application
- HVAC
- Approval standard
- EC EN 60730
- Cable included
- Yes
- Cable insulation material
- Halogen free
- Cable length [m]
- 2 m
- China RoHS compliance
- Out of scope
- Closing force [N]
- 110 N
- Compatibility with valve
- AB-QM DN 15-32
- Control signal type
- On/off and PWM
- De-energized position
- Normally closed
- Description
- TWA-Q, 230V, 5mm, Normally Closed thermal actuator, 2m halogen free cable, for AB-QM DN15-32 valves
- Electrical Protection Class according to EN60730-1
- II
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP54
- Power consumption [W]
- 2 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 5 mm
- Supply voltage [V]
- 230 V AC
- Valve connection
- M30 x 1.5
Standards & Compliance
- HS Code
- 8412.80
Cross References
- MPN 082F1610
- EAN 5702425243189
- VVS 460956010
Product Documentation
More from Danfoss
Danfoss

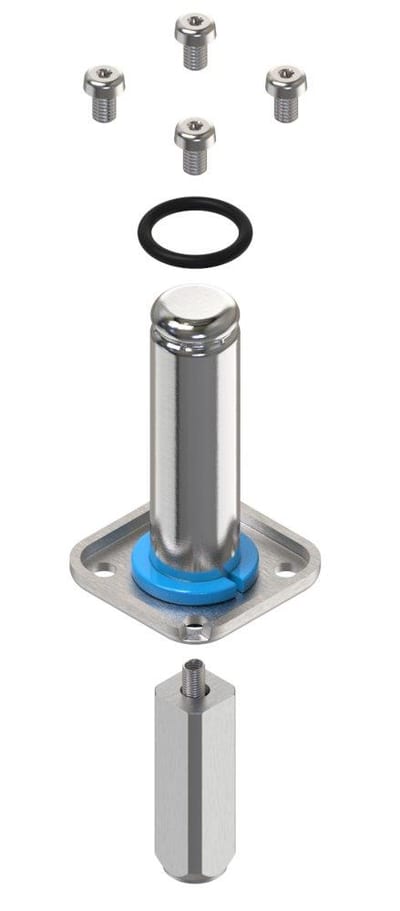

Danfoss Spare Part Set - EV220/228BW 15/50 U aktuator
132U8082
Danfoss

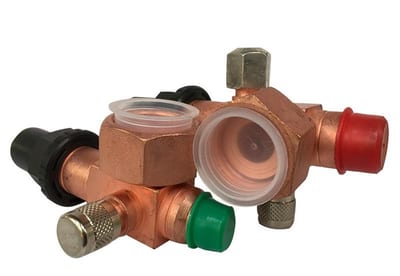

Danfoss Rotalock Valve Set - 1 1/4" Rotalock x 7/8" solder, 1 3/4" Rotalock x 1 1/8" solder
7703008
Danfoss

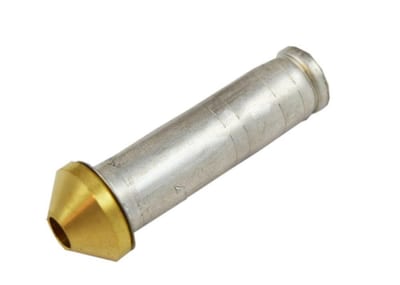

Danfoss T2/TE2 Nozzle insert flare - 4, T2 - serie, Dyse 04 T2
068-2007
Danfoss

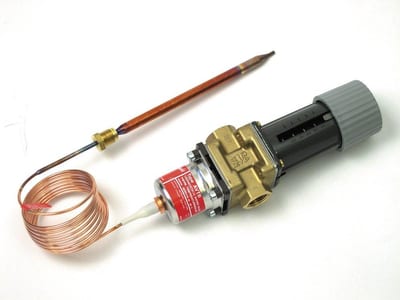

Danfoss AVTB 25 Water Valve with muff connection - 20°C, 60°C, 5.5M³/h, 25
672493
Danfoss

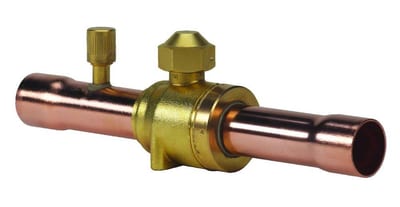

Danfoss GBCH Ball Valve CO2 with service port - 7/8" solder, 24.47M³/h, 90bar, -40-100°C, R744, GBCH 22S
009L7589
Danfoss

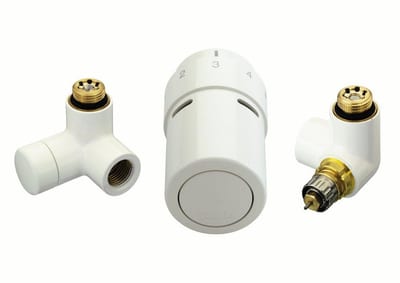

Danfoss RTX Valve Set white RAL 9016 - R 1/2", 0.44M³/h 2281897
013G4136
Danfoss

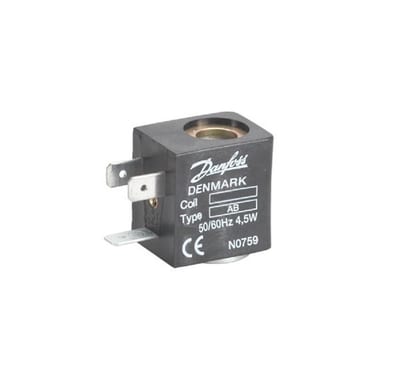

Danfoss Coil - 24 V DC, 5W
042N0803
Danfoss

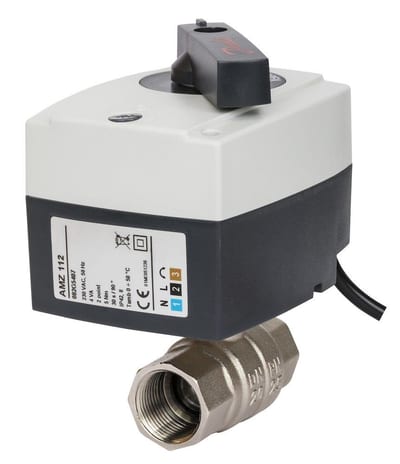

Danfoss AMZ 112 Zone Valve - coupling, 3/4", 2-Way, 28M³/h, 20, 24V AC
