Product Description

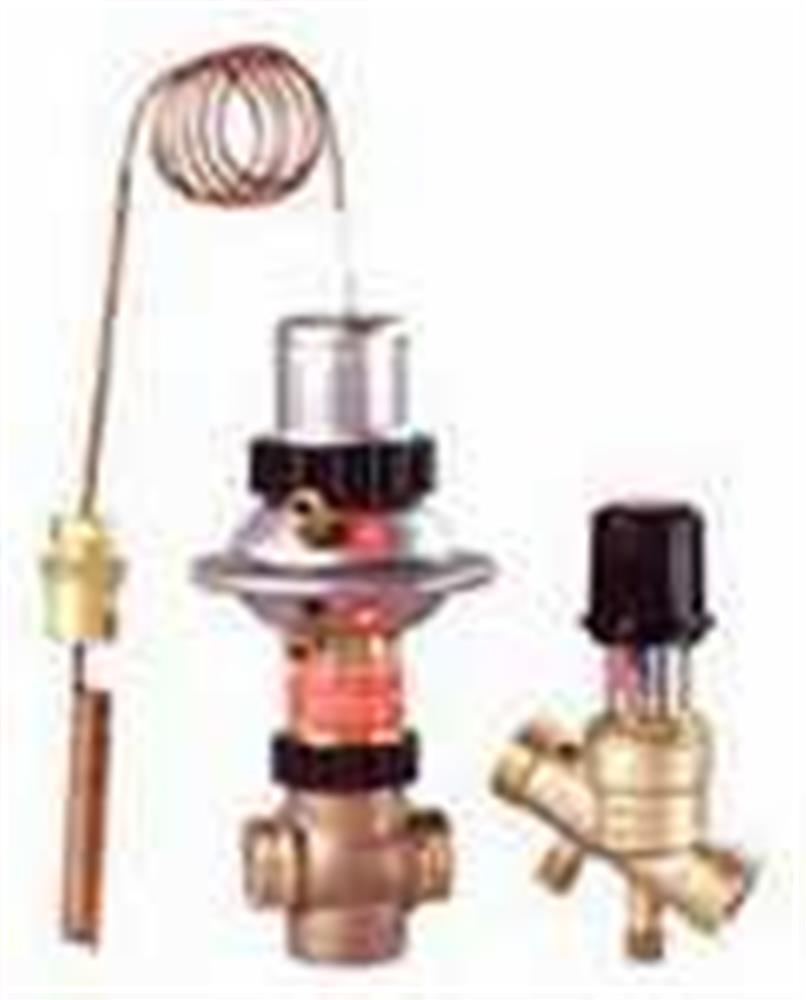

Danfoss AVTQ 20 Water Valve with male connection. Regulating valves for water (Plumbing / Heat / Valves for heating and cooling systems). Principal data: setting temperature min 40 °C, setting temperature max 60 °C, kvs value 3.2 m³/h, dn dimension 25. Supplied under manufacturer part number 003L7020, EAN 5702421500828, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Regulating valves for water
- Product group
- Heat
- Setting temperature min
- 40 °C
- Setting temperature max
- 60 °C
- Kvs value
- 3.2 m³/h
- DN dimension
- 25
- Media temperature max
- 100 °C
- Thread
- 1"
- Working pressure max
- 16 bar
- Media
- Circulating water
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 20.4422 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818051
- HS code
- 8481.80
- Manufacturer part number
- 003L7020
- GTIN (EAN)
- 5702421500828
- VVS number
- 451022008
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003L7020
- EAN 5702421500828
- VVS 451022008
