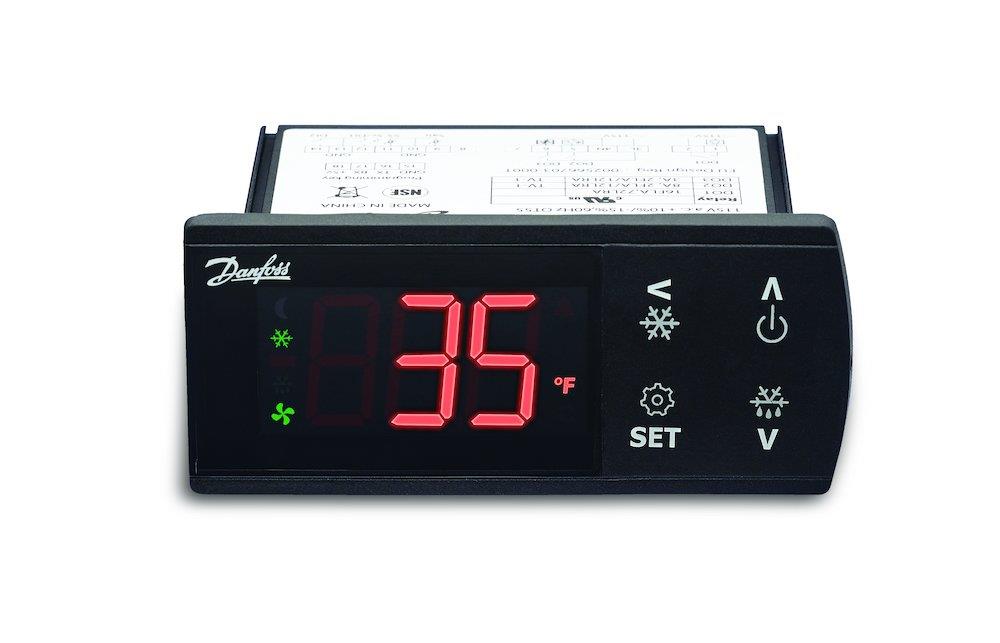

Danfoss ERC Cooling Control panel-mounted - 230V, 2, 3, 2, ERC 213
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ERC Cooling Control panel-mounted. Cooling controls (Refrigeration technology / Cooling controls, alarms, and detectors). Principal data: voltage 230 V, sensors 2, relays 3, digital input 2. Supplied under manufacturer part number 080G3458, EAN 5715162509074, HS code 9032.89, country of origin Denmark.
Technical Specifications
- Product type
- Cooling controls
- Product group
- Cooling controls, alarms, and detectors
- Voltage
- 230 V
- Sensors
- 2
- Relays
- 3
- Digital input
- 2
- Type designation
- ERC 213
- Type description
- Cold room and freezer control
- Sensor type
- PTC 1000/PT 1000/NTC
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.2692 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 080G3458
- EAN
- 5715162509074
- Net weight
- 168 Gram
- Type
- ERC 213
- Analog inputs (AI) [pc]
- 3 pc
- Application area
- Glass door merchandising
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- Controller type
- Commercial Refrigeration
- Digital inputs (DI) [pc]
- 1 pc
- Digital outputs (DO) [pc]
- 3 pc
- Display colour
- Red
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 7(a)
- Frequency [Hz]
- 50/60 Hz
- In scope of WEEE
- Yes
- Other RoHS documentation
- EAEU RoHS
- PFAS content [Yes/No]
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] AC [max]
- 250 V
- Supply voltage [V] AC [min]
- 197 V
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 5715162509074
- MPN 080G3458
Product Documentation
