Product Description
The Danfoss JIP-MM 065N0807 is a steel ball valve with 3/4 inch male-male threaded ends, PN 40 rating and a T-handle actuator with grey handle finish. Sealed with a PTFE-graphite seat, it operates between 0 and 180 degrees Celsius and carries a Kvs value of 15 cubic metres per hour on a reduced-bore body. The valve is intended for isolation duty on district heating and cooling installations.
Technical Specifications
- Product type
- Ball valves with threads
- Product group
- Plumbing Valves
- Spindle
- Normal
- Type
- T-handle
- Material
- Steel
- Thread 1
- 3/4"
- Thread 2
- 3/4"
- Pressure PN
- 40 bar
- Temperature min
- 0 °C
- Temperature max
- 180 °C
- Handle color
- Grey
- Length built-in dimension
- 90 mm
- DN dimension
- 20
- Used for
- Opvarmning and cooling
- Liner / packing
- PTFE/graphite
- Passage
- Reduced bore
- Kvs value
- 15 m³/h
- Carbon footprint (EPD)
- 4.4609 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84818081
- HS code
- 8481.80
- Manufacturer part number
- 065N0807
- VVS number
- 418700006
- EAN
- 5702421653814
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 065N0807
- EAN 5702421653814
- VVS 418700006
Product Documentation
More from Danfoss
Danfoss
Danfoss VRB 3 Seat Valve 3-Way - 15, 1", Nipple, 1.6M³/h
10068664
Danfoss
Danfoss ADAP-KOOL Control - Modbus, 230V, 4, 2, AK-CC25 Pro
084B4022
Danfoss
Danfoss ADAP-KOOL Cable - AK-UI55
084B4078
Danfoss

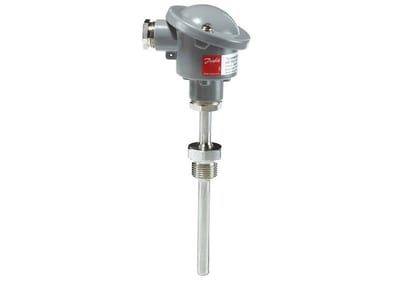

Danfoss MBT 3252 Sensor - 1/2", 100mm
10248006
Danfoss
Danfoss ADAP-KOOL Communication Module - 24V, AK‑XM 208C
5702428446402
Danfoss

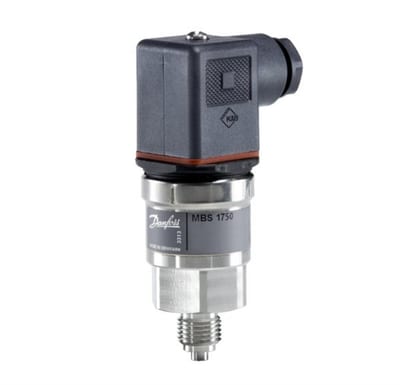

Danfoss MBS 1750 Pressure Transmitter - 1/4", 0-60bar
10248570
Danfoss

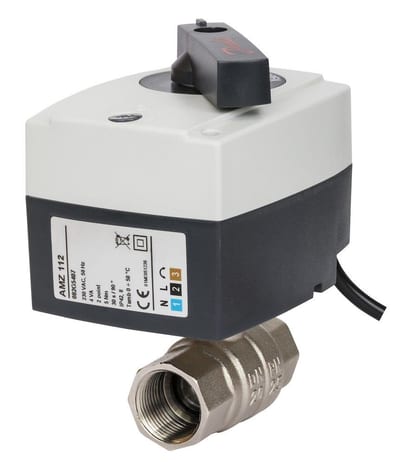

Danfoss AMZ 112 Zone Valve - coupling, 2", 2-Way, 243M³/h, 50, 230V AC
082G5411
Danfoss

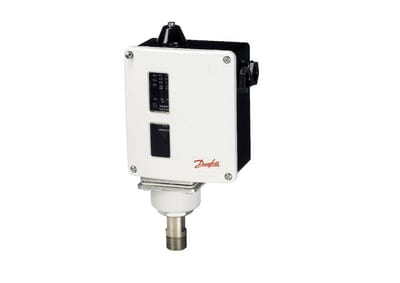

Danfoss Pressure Switch - 10248388
