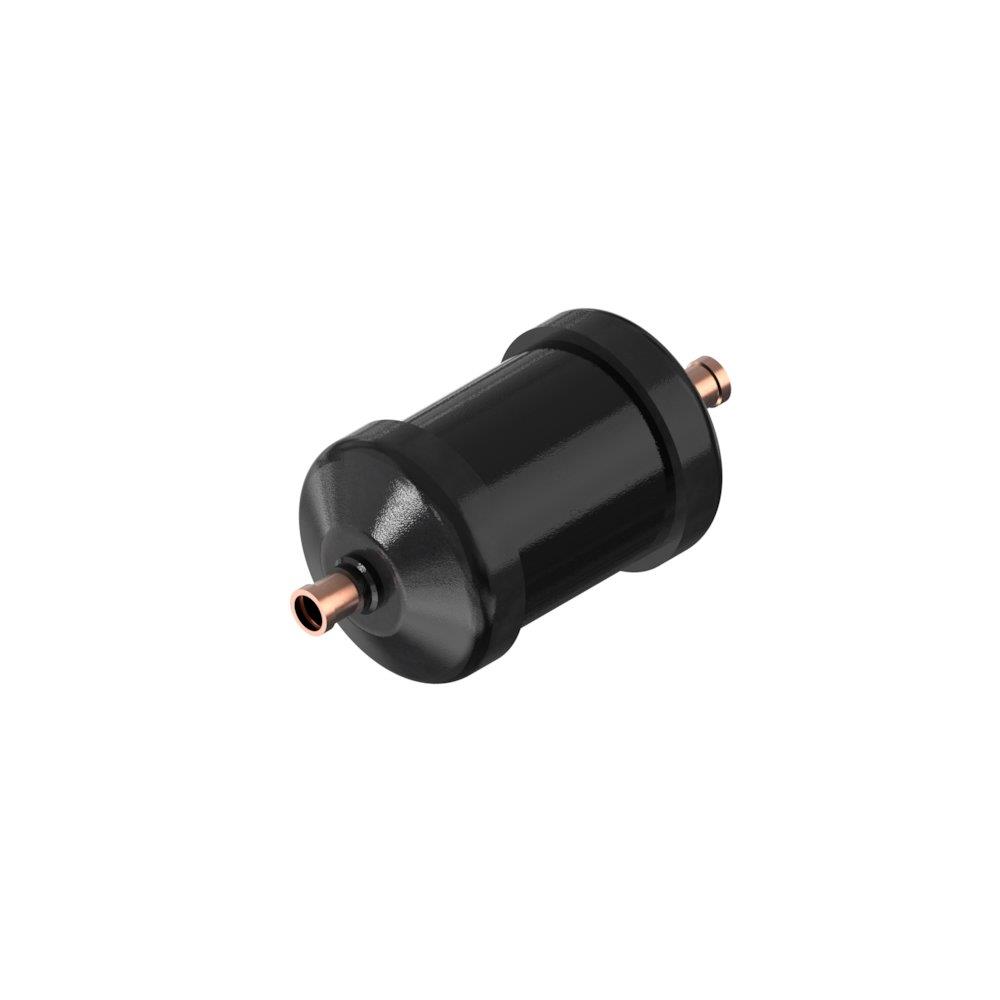

Danfoss DMT Dryer Filter - R744 (CO2), 140bar, DMT 083S
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss DMT Dryer Filter. Drying filters HFC (Refrigeration technology / Cooling technical components / Dry filters). Principal data: coolant R744 (CO2), working pressure max 140 bar, type designation DMT 083S. Supplied under manufacturer part number 023Z8416, EAN 5702428940375, HS code 8421.29, country of origin Denmark.
Technical Specifications
- Product type
- Drying filters HFC
- Product group
- Cooling technical components
- Coolant
- R744 (CO2)
- Working pressure max
- 140 bar
- Type designation
- DMT 083S
- Sales unit
- Pack
- Carbon footprint (EPD)
- 7.2124 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84212980
- HS code
- 8421.29
- Manufacturer part number
- 023Z8416
- EAN
- 5702428940375
- Net weight
- 0.92 Kilogram
- Type
- DMT
- Acid capacity [g]
- 0.54 g
- Acid capacity [oz]
- 0.019 oz
- Activated alumina [%]
- 0 %
- Body material
- Steel
- Braket
- No
- China RoHS compliance
- Yes
- Connection Code
- (3002:X:10)
- Connection material
- Steel Cu-plated
- Core Size code
- 08 cu.in.
- Core type
- Solid core
- Drying Cap[Drops of Water]24°C
- R744:197
- EU RoHS compliance
- Yes
- Filter application
- High Moisture Capacity
- Flow capacity [kW]
- R744: 11.0
- Flow capacity [TR]
- R744: 3.1
- Inlet 1 connection size [in]
- 3/8 in
- Inlet connection type
- Solder, ODF
- LiqCap Cond (ARI 710-2009)[SI]
- Delta p=0.07bar
- LiqCapCond (ARI 710-2009)[IMP]
- Delta p=1psi
- Max. Working Pressure [bar]
- 140 bar
- Max. Working Pressure [psig]
- 2030 psig
- Molecular sieve [%]
- 100 %
- Net volume [foz US]
- 3.87 Fluid Ounce US
- Net volume [l]
- 0.114 L
- Outlet 1 connection size [in]
- 3/8 in
- Outlet connection type
- Solder, ODF
- PED category
- Art. 4, par. 3
- REACH Candidate Strip substances
- No
- Refrigerants
- R744
- Shell volume [foz US]
- 5.85 Fluid Ounce US
- Shell volume [l]
- 0.17 L
- Solid core surface [cm2]
- 118 cm²
- Solid core surface [in2]
- 18.29 in²
- Solid core volume [cm3]
- 59 cm³
- Solid core volume [in3]
- 3.57 in³
- Temperature range [°C] [max]
- 100 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 212 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- HS Code
- 8421.29
Cross References
- EAN 5702428940375
- MPN 023Z8416
Product Documentation
More from Danfoss
Danfoss

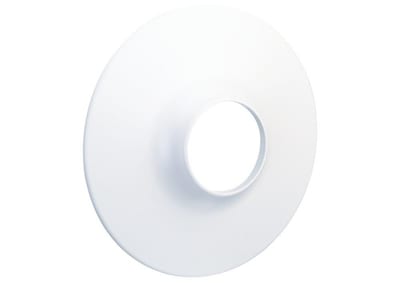

Danfoss FHV Front Plate
2547305
Danfoss

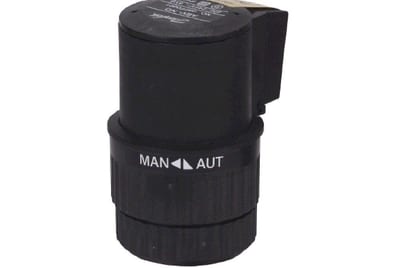

Danfoss ABV-NC Thermo Motor with manual control on/off - 230V AC, 245MM/s
082F0051
Danfoss

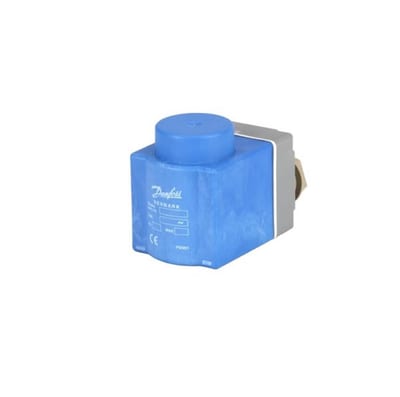

Danfoss Coil - 115 V AC, 11W 10248467
Danfoss

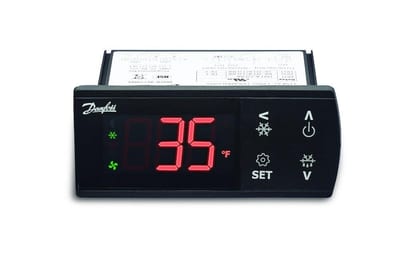

Danfoss ERC Cooling Control panel-mounted - 230V, 2, 3, 2, ERC 213
080G3458
Danfoss

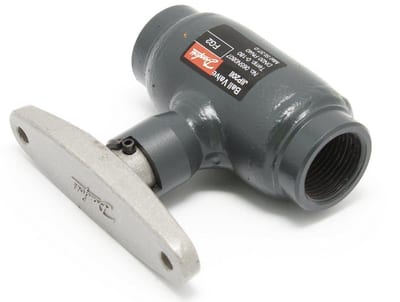

Danfoss JIP-MM 065N0807 Ball Valve MM 3/4" Steel T-Handle PN40
Danfoss

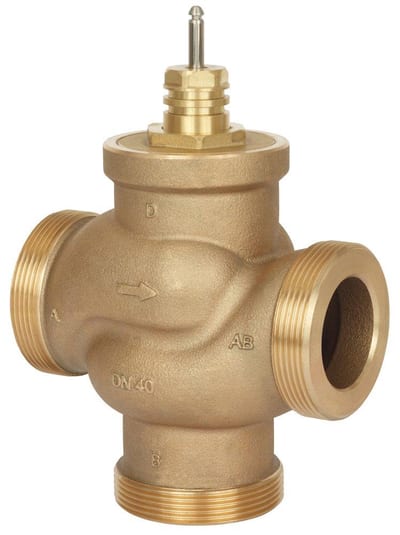

Danfoss VRB 3 Seat Valve 3-Way - 15, 1", Nipple, 1.6M³/h
10068664
Danfoss

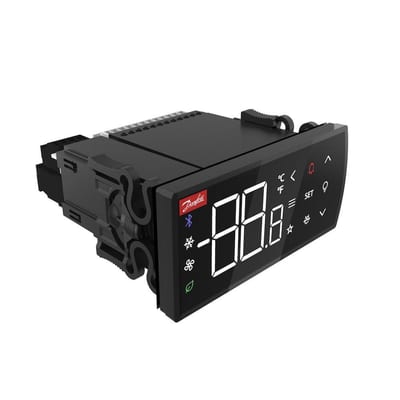

Danfoss ADAP-KOOL Control - Modbus, 230V, 4, 2, AK-CC25 Pro
