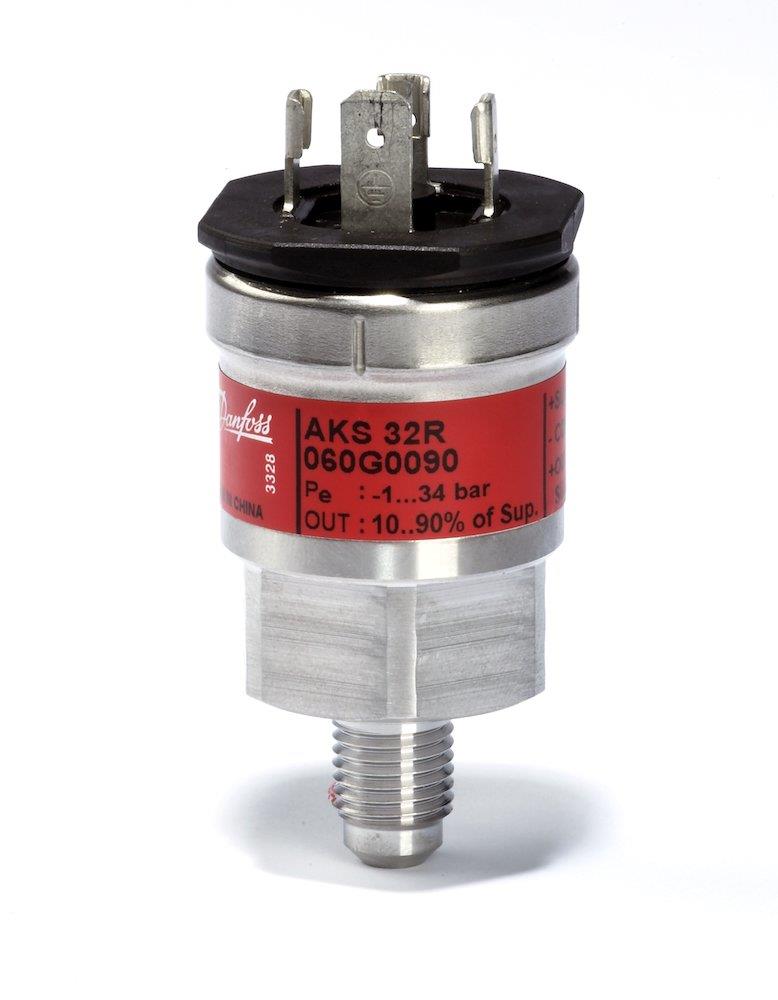

Danfoss AKS Pressure Transmitter - 1-34bar, 1/4" flare, 10-90 %, 55bar, AKS 32R
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS Pressure Transmitter. Pressure transmitters (Refrigeration technology / Cooling technical components / Pressure monitoring). Principal data: regulating range -1-34 bar, connection 1/4" flare, output signal 10-90 %, operating pressure max 55 bar. Supplied under manufacturer part number 060G0090, EAN 5702422113218, HS code 9026.90, country of origin China.
Technical Specifications
- Product type
- Pressure transmitters
- Product group
- Cooling technical components
- Regulating range
- -1-34 bar
- Connection
- 1/4" flare
- Output signal
- 10-90 %
- Operating pressure max
- 55 bar
- Type designation
- AKS 32R
- Sales unit
- Pack
- Carbon footprint (EPD)
- 1.0294 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90269000
- HS code
- 9026.90
- Manufacturer part number
- 060G0090
- EAN
- 5702422113218
- Net weight
- 0.12 Kilogram
- Type
- AKS 32R
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection
- Angular connector
- Electrical connection size
- 4 pin
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- Identical product
- 060G4254
- In scope of WEEE
- Yes
- International Article Number
- 5702422113218
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Other RoHS documentation
- Saudi Arabia RoHS
- Overload pressure max. [bar]
- 55 bar
- Pressure connection notes
- Flare 1/4 in
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ASME B1.1
- Pressure connection type
- UNF
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 34 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 493 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 32R-DG36-A0BC08-0
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
