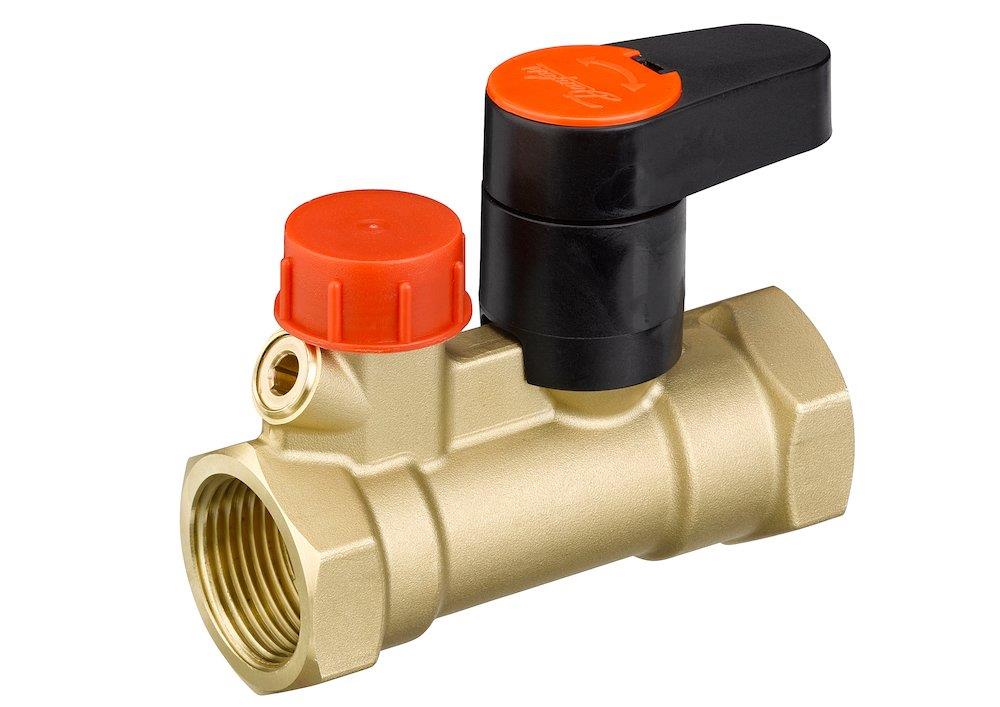

Danfoss MSV-S Ball Valve with 3/4" drain and connection mount - 40, coupling/coupling, 1 1/2", 26M³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MSV-S Ball Valve with 3/4" drain and connection mount. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 40, connection Socket/socket, thread 1 1/2", kvs value 26 m³/h. Supplied under manufacturer part number 003Z4015, EAN 5702420092058, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 40
- Connection
- Socket/socket
- Thread
- 1 1/2"
- Kvs value
- 26 m³/h
- Media temperature min
- -20 °C
- Media temperature max
- 120 °C
- Working pressure max
- 20 bar
- Material
- DZR brass
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 9.1440 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818059
- HS code
- 8481.80
- Manufacturer part number
- 003Z4015
- GTIN (EAN)
- 5702420092058
- VVS number
- 406841111
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003Z4015
- EAN 5702420092058
- VVS 406841111
