Product Description

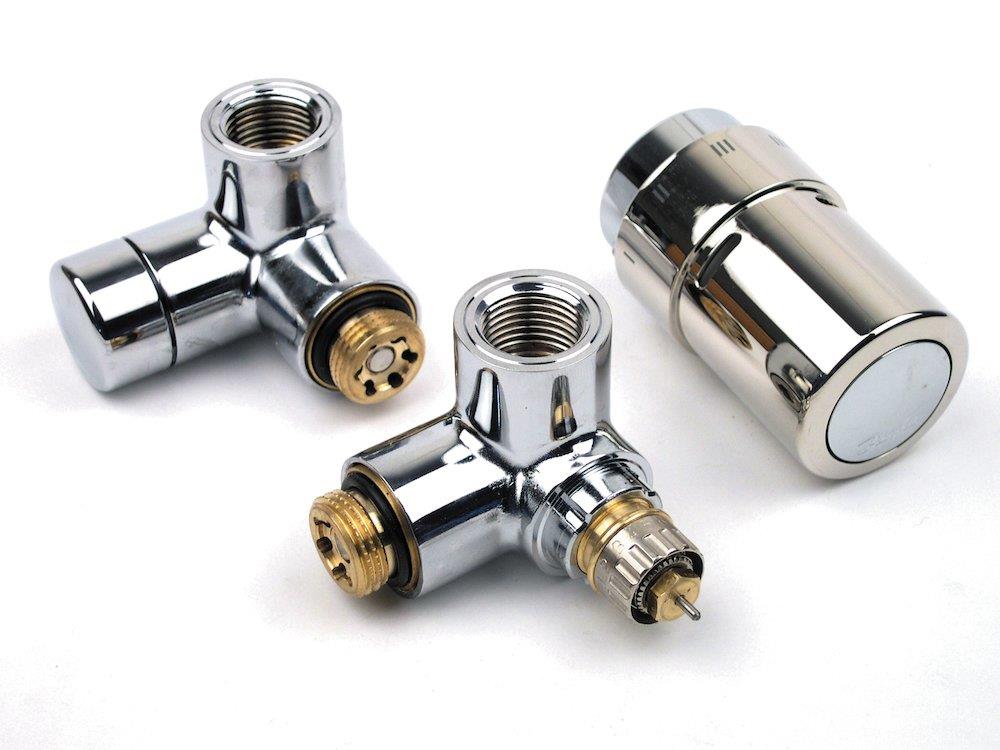

Danfoss RAX Valve Set chrome-plated. Accessories for towel warmers (Plumbing / Sanitation / Towel dryers). Principal data: connection heater R 1/2", kvs value 0.44 m³/h. Supplied under manufacturer part number 013G4004, EAN 5702420059549, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Accessories for towel warmers
- Product group
- Sanitation
- Connection heater
- R 1/2"
- Kvs value
- 0.44 m³/h
- Differential pressure max
- 0.6 bar
- Media temperature max
- 120 °C
- Working pressure max
- 10 bar
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 8.8794 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818031
- HS code
- 8481.80
- Manufacturer part number
- 013G4004
- VVS number
- 403239204
- EAN
- 5702420059549
- Net weight
- 1.092 Kilogram
- Type
- RAX Design sets
- CE mark
- No
- China RoHS compliance
- Out of scope
- Colour
- Chrome
- Connection size in
- Rp 1/2
- Connection size out
- R 1/2
- Contents of set
- Valve, sensor, lockshield
- Description
- Left-set chrome, includes RAX sensor, valve and lockshield valve
- Design
- Left mounted sensor
- Differential pressure range [bar] [Max]
- 0.6 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow temperature [°C] [Max]
- 120 °C
- Kv value at Xp = 1 K [m³/h]
- 0.03 m³/h
- Kv value at Xp = 2 K [m³/h]
- 0.34 m³/h
- Kvs values [m³/h] [Max]
- 0.44 m³/h
- Limiter pins
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time [m]
- 24 min
- RLV type
- RLV-X
- Sensor design
- RAX
- Sensor type
- Thermostatic sensor
- UL mark
- No
- Valve type
- RA-URX, RLV-X
- Working pressure [bar] [Max]
- 10 bar
- Zero-blocking
- Yes
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 013G4004
- EAN 5702420059549
- VVS 403239204
