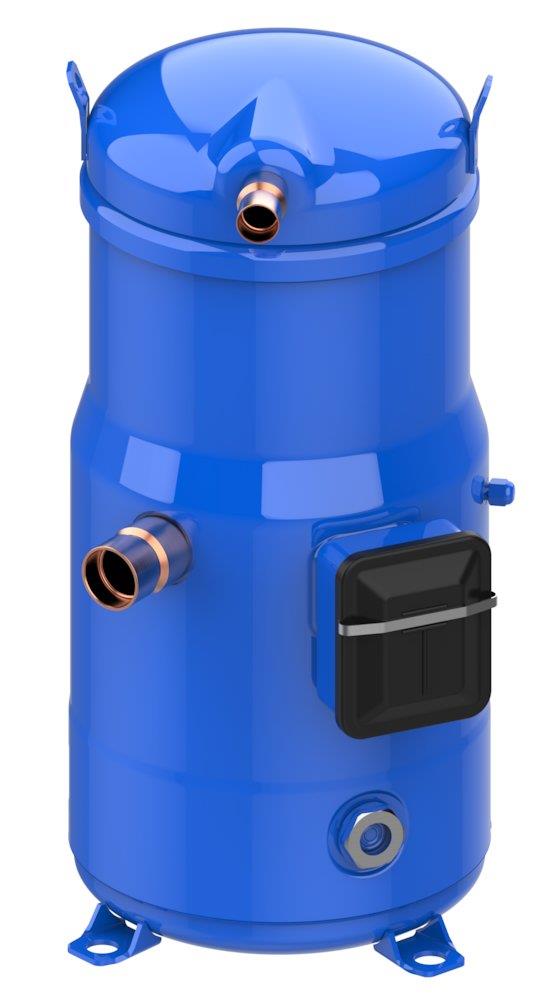

Danfoss Compressor - R410A, SH120A4ALC

Danfoss Compressor. Scroll chillers (Refrigeration technology / Refrigeration compressors). Principal data: coolant R410A, type designation SH120A4ALC. Supplied under manufacturer part number 120H0013, EAN 5702428585415, HS code 8414.30, country of origin China.

Product type

Scroll chillers

Product group

Refrigeration compressors

Coolant

R410A

Type designation

SH120A4ALC

Height

540 mm

Carbon footprint (EPD)

253.0952 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

84143081

HS code

8414.30

Manufacturer part number

120H0013

EAN

5702428585415

Net weight

64 Kilogram

Type

SH120

Approval

CE

Brand technique

Scroll compressor

Capacity Control

Fixed speed

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Description

SH120-4

Diameter [mm]

243 mm

Discharge connection height [mm]

509 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

8560003

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

7(c)-I

Factory HP [bar]

0 bar

Factory LP [bar]

0 bar

Family

SH

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

Schrader

Glass mounting

Threaded

Glass torque [Nm]

50 N-m

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

0.7 L

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

440 V

High value of voltage range at 60Hz [V]

506 V

IDV

No

In scope of WEEE

No

IP protection class

IP54 (with cable gland)

Low Side TS Max

55 °C

Low Side TS Min

-35 °C

Low Side Volume

13.6 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

142 A

Manifold enabled

No

Max pressure (PS) - high side

48.7 bar

Max pressure (PS) - low side

33.3 bar

Maximum Operating Current [MOC]

24 A

MCC

29 A

Model number

SH120A4ALC

Motor protection

Internal overload protector

Mounting torque [Nm]

15 N-m

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Number of starts per hour [Max]

12

Oil charge [L]

3.3 L

Oil equalization

1-3/4'' Rotolock

Oil level switch

None

Oil reference

160SZ

Oil type

POE

Packaging height [mm]

596 mm

Packaging length [mm]

470 mm

Packaging weight [Kg]

66 kg

Packaging width [mm]

370 mm

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

REACH Candidate Strip substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

7.9 kg

Refrigerants

R410A

RLA

20.7 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil

Initial oil charge

Suction connection height [mm]

278 mm

Suction connection material

-

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

116.9 cm³

Technology

Scroll

Test dif [bar] [Max]

37 bar

Test HP [bar] [Max]

48.7 bar

Test LP [bar] [Max]

33.3 bar

Torque earth [Nm]

2 N-m

Torque power [Nm]

3 N-m

Total height [mm]

540 mm

UL mark

Yes

Viscosity [cP]

32 cP

HS Code

8414.30

• EAN 5702428585415
• MPN 120H0013
