Danfoss CVH pilot valve body, NPT 1/4 in, steel, 65 bar, for CV-series pilots on ICS/ICF servo valves

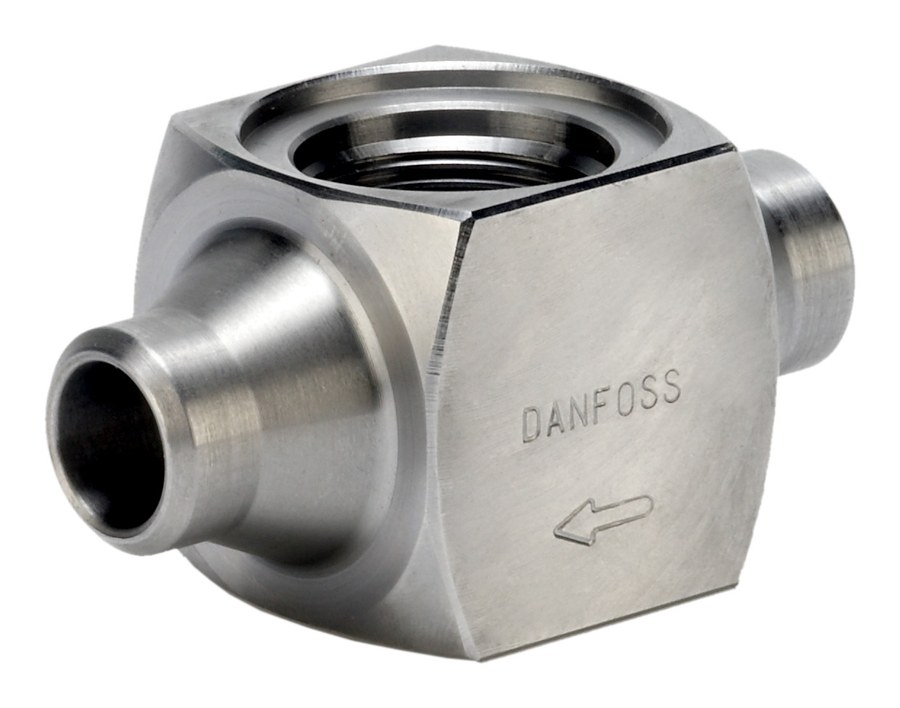

Danfoss CVH pilot valve body, code 027F1159, steel construction with a NPT 1/4 in connection (13 mm, ANSI/ASME B1.20.1). The CVH is the housing that lets a Danfoss CV-series pilot valve (constant-pressure CVP, differential-pressure CVPP, pressure-operated CVC, electronic CVE or solenoid EVM) operate in an external pilot line rather than being screwed directly into the main-valve top cover. A pilot screwed into a CVH housing can either control small capacities on its own — without a main valve — or act as an external control valve for an ICS, ICF (or discontinued PM) servo-operated main valve. This SKU is the bare CVH housing; the pilot insert and gasket are ordered separately. Maximum working pressure 65 bar (943 psig); media temperature -50 to 120 C (-58 to 248 F); PED Art. 4 par. 3, fluid group 1. For HCFC, HFC, R717 (ammonia) and R744 (CO2) industrial-refrigeration systems. Supplied as multi pack (32 pc).

Type

CVH (housing for pilot valves, external pilot line)

Series

CVP / CVPP / CVC / CVE / EVM pilot valves (ICV Flexline)

Function

Receives a CV-series pilot for use in an external pilot line — as an independent small-capacity control valve or as an external control valve for an ICS / ICF main valve

Body material

Steel

Connection type

NPT

Connection size

1/4 in (13 mm)

Connection material

Steel

Connection standard

ANSI/ASME B1.20.1

Maximum working pressure

65 bar (943 psig)

Media temperature range

-50 to 120 C (-58 to 248 F)

Flow direction indicator

Embossed 1-way arrow

Product group

Press. and temp. regul. valves

Fluid group

1

PED category

Art. 4, par. 3

Packing format

Multi pack (32 pc)

Net weight

0.347 kg

Gross weight

0.371 kg

REACH candidate substance

contains Lead (CAS 7439-92-1)

Approvals

EAC

EAN

5702422107200

MPN

027F1159

Material

Steel

Thread Standard

ANSI/ASME B1.20.1

Pressure Rating

65 bar

Temperature Range

-50 to 120 C

HS Code

8481.80
