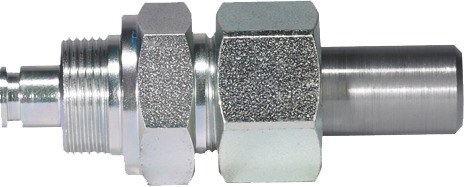

Danfoss External pilot connector for ICM/ICS/ICLX and PM pilot-operated valves (code 027F1048)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss external pilot connector, code 027F1048 — a service accessory for the Danfoss ICM / ICS / ICLX / PM range of pilot-operated servo main valves. Connects an external pilot line to the top cover of a Danfoss ICLX, ICS or PM pilot-operated main valve, allowing the pilot valve(s) to be mounted remotely — for example in a CVH housing — instead of directly in the main-valve top cover. Fits: ICLX 32, ICLX 40, ICLX 65, ICLX 80, ICS 25, ICS 32, ICS 40, ICS 50, ICS 65, ICS 100, ICS 125, ICS 150, PM 1, PM 3, PMC, PML, PMLX. Supplied as multi pack (16 pc); net weight 0.317 kg. Part of the Danfoss industrial-refrigeration valve programme for HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type designation
- External pilot connector
- Product group
- ICM / ICS / ICLX accessories
- Function
- External pilot connector for ICLX 32-80, ICS and PM main valves
- Fits valve types
- ICLX 32, ICLX 40, ICLX 65, ICLX 80, ICS 25, ICS 32, ICS 40, ICS 50, ICS 65, ICS 100, ICS 125, ICS 150, PM 1, PM 3, PMC, PML, PMLX
- Packing format
- Multi pack (16 pc)
- Net weight
- 0.317 kg
- Gross weight
- 0.32 kg
- EU RoHS
- out of scope
- China RoHS
- out of scope
- REACH candidate substance
- contains Lead (CAS 7439-92-1)
- Approvals
- EU RoHS / China RoHS declared
- EAN
- 5702422045762
- MPN
- 027F1048
- Type
- Accessory
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Used for product
- ICLX 32
Standards & Compliance
- HS Code
- 8481.90
Compatibility & Fitment
Fits Danfoss ICLX 32, ICLX 40, ICLX 65, ICLX 80, ICS 25, ICS 32, ICS 40, ICS 50, ICS 65, ICS 100, ICS 125, ICS 150, PM 1, PM 3, PMC, PML, PMLX. Confirm the main-valve type and size before ordering; the pilot valve(s) and any gasket kit are ordered separately.
