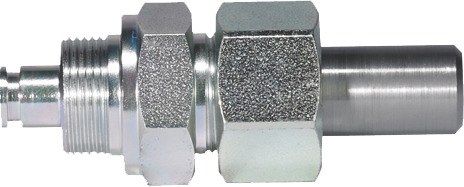

Danfoss External pilot connector for ICM/ICS/ICLX and PM pilot-operated valves (code 027F1049)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss external pilot connector, code 027F1049 — a service accessory for the Danfoss ICM / ICS / ICLX / PM range of pilot-operated servo main valves. Connects an external pilot line to the top cover of a large Danfoss ICLX 100-150 or PMC pilot-operated main valve. Carries a Ø 1.0 mm pilot restriction and is UL-marked; supplied as a service spare part. Fits: ICLX 100, ICLX 125, ICLX 150, PMC. Supplied as multi pack (16 pc); net weight 0.291 kg. Part of the Danfoss industrial-refrigeration valve programme for HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type designation
- External pilot connector
- Product group
- ICM / ICS / ICLX accessories
- Function
- External pilot connector (Ø 1.0 mm) for large ICLX 100-150 and PMC main valves
- Fits valve types
- ICLX 100, ICLX 125, ICLX 150, PMC
- Pilot restriction
- 1.0 mm
- Packing format
- Multi pack (16 pc)
- Net weight
- 0.291 kg
- Gross weight
- 0.32 kg
- EU RoHS compliance
- Yes
- China RoHS compliance
- Yes
- REACH candidate substances
- None
- Approvals
- UL
- EAN
- 5702422053477
- MPN
- 027F1049
- Type
- Spare part
- Approval
- UL
- REACH Candidate List substances
- No
- UL mark
- Yes
- Used for product
- ICLX 100
- Used for product comments
- Ø 1.0 mm
Standards & Compliance
- HS Code
- 8481.90
Compatibility & Fitment
Fits Danfoss ICLX 100, ICLX 125, ICLX 150, PMC. Confirm the main-valve type and size before ordering; the pilot valve(s) and any gasket kit are ordered separately.
