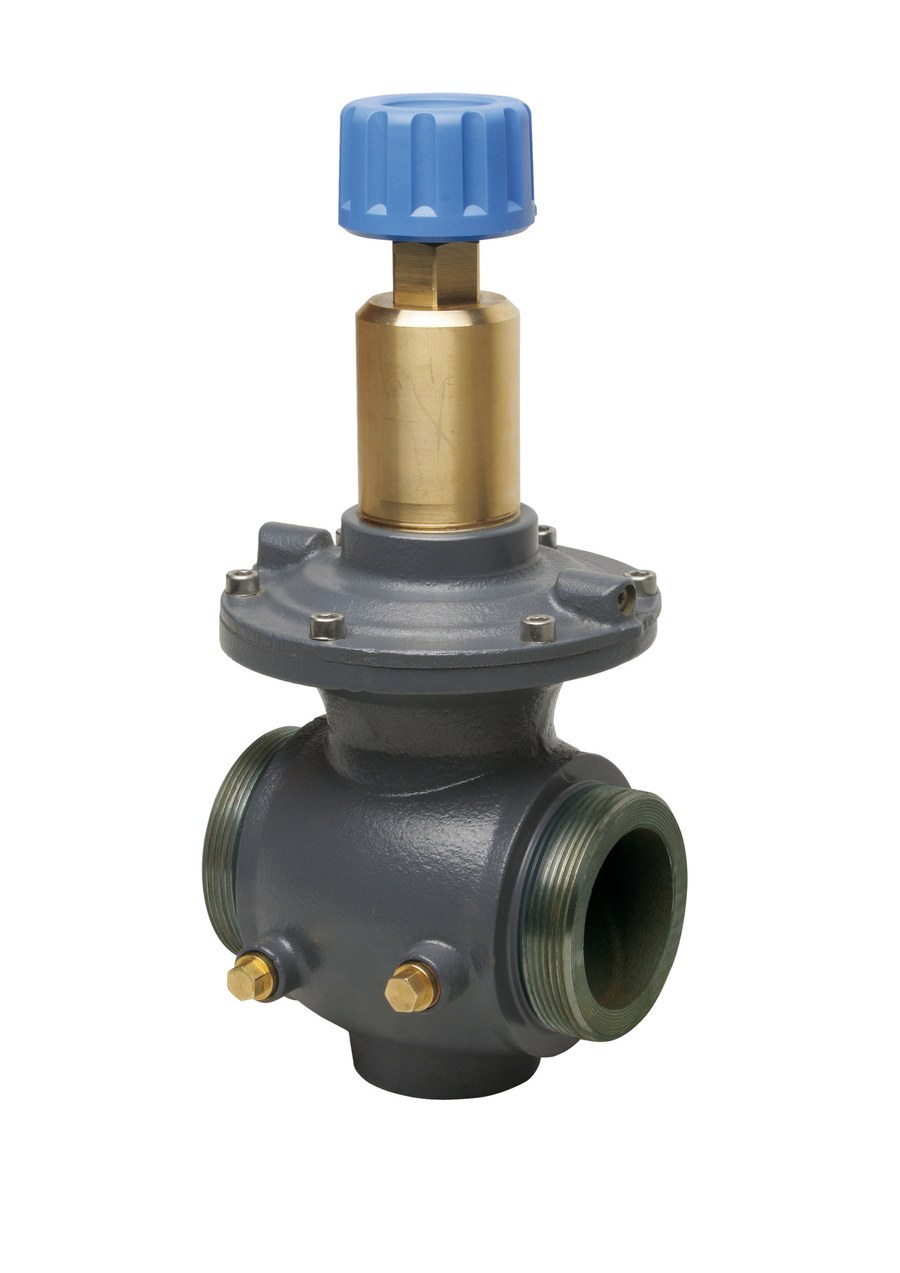

Danfoss ASV-PV 3G DN 50 differential pressure controller 60-100 kPa external thread

Danfoss ASV-PV 3G DN 50 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 60-100 kPa (factory setting 80 KPa), Kvs 20 m³/h, Grey cast iron (EN-GJL-250) body, External Thread connection, PN 16, media temperature -10 °C to 120 °C, integral shut-off. OEM P/N 003Z0641. EAN 5702421558430. Technical data quoted verbatim from store.danfoss.com (code 003Z0641).

Code number

003Z0641

Type

ASV-PV 3G

Product group

Automatic balancing

Description

ASV-PV DN 50, 60-100 kPa, external thread, automatic balancing valve

Valve size

DN 50

Valve body material

Grey cast iron (EN-GJL-250)

Connection types

External Thread

Pressure class

PN 16

Kvs values [m³/h]

20 m³/h

Differential pressure setting [kPa] [Min]

60 KPa

Differential pressure setting [kPa] [Max]

100 KPa

Factory setting [kPa]

80 KPa

Differential pressure over the valve [kPa] [Max]

250 KPa

Impulse tube length [m]

2.5 m

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Mounting position

Return pipe

Shut-off function

Yes

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

6.809 Kilogram

Gross weight

7.414 Kilogram

Volume

18.428 Liter

EAN

5702421558430

SCIP dossier no.

0dd3e0df-62cf-4320-81d8-ecdc5af3eae0

SCIP dossier product name

"ASV-PV DN 50 -100"

Material

Valve body Grey cast iron (EN-GJL-250)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
