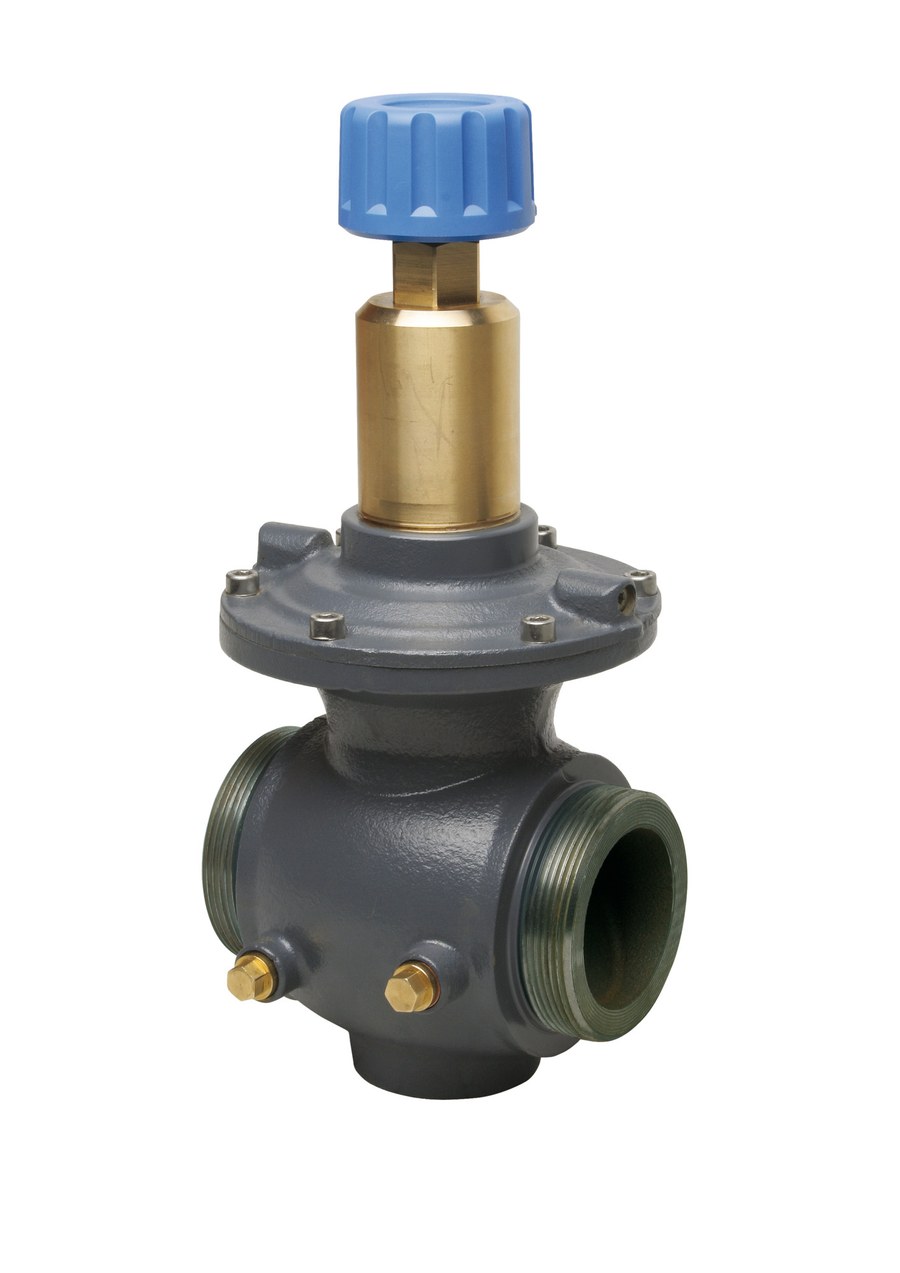

Danfoss ASV-PV 3G DN 50 differential pressure controller 20-40 kPa flanged

Danfoss ASV-PV 3G DN 50 — third-generation self-acting differential-pressure controller for automatic hydronic balancing. Installed in the return pipe of a heating or cooling circuit, it holds a constant differential pressure across the branch or terminal (paired with an ASV-BD/ASV-M/ASV-I partner valve and an impulse tube), so that two-way control-valve authority stays high and flow noise is avoided at part load. Differential-pressure setting range 20-40 kPa (factory setting ), Kvs 20 m³/h, body, Flange connection,, media temperature to, integral shut-off. OEM P/N 003Z0626. EAN 5710104523910. Technical data quoted verbatim from store.danfoss.com (code 003Z0626).

Code number

003Z0626

Type

ASV-PV 3G

Product group

Automatic balancing

Description

ASV-PV 3G, DN 50, 20-40 kPa, automatic balancing valve

Valve size

DN 50

Connection types

Flange

Kvs values [m³/h]

20 m³/h

Differential pressure setting [kPa] [Min]

20 KPa

Differential pressure setting [kPa] [Max]

40 KPa

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Out of scope

Net weight

6.375 Kilogram

Gross weight

7.232 Kilogram

Volume

18.546 Liter

EAN

5710104523910

Classification / Approval

CE

HS Code

8481.80
