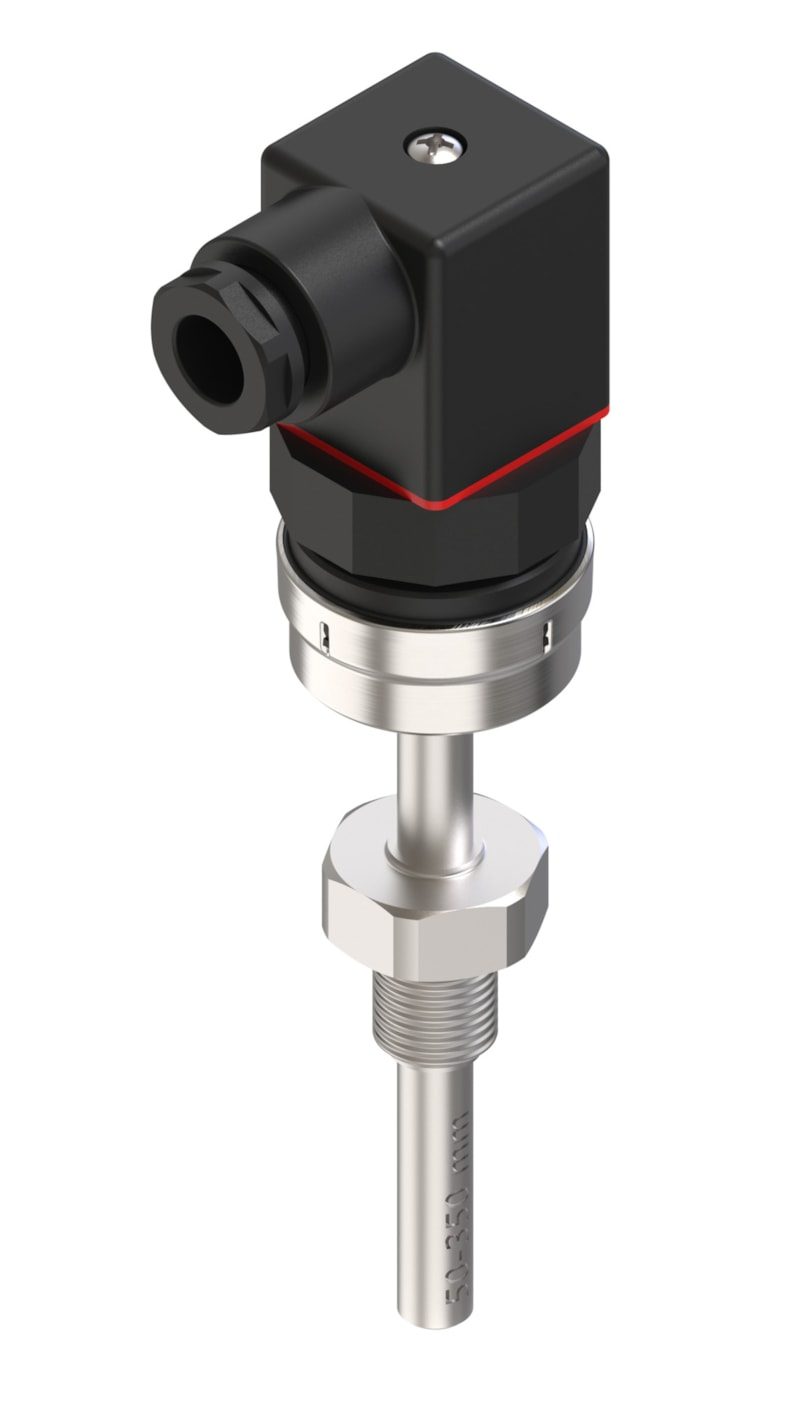

Danfoss MBT 5560 temperature transmitter, 60 mm insertion, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5560 insertion temperature transmitter, code 084Z4202 (type designation MBT 5560-0001-060-10-120). Compact sensor with an integrated 2-wire, loop-powered transmitter delivering a factory-scaled 4-20 mA output for refrigeration, HVAC and machinery temperature control. Insertion length 60 mm. Process connection G 1/4 (ISO 228-1-A), Stainless steel. Transmitter setting range 0 to 200 °C. Output 4-20 mA (2-wire, loop-powered). Electrical connection Angular connector, Pg 9. Enclosure IP65. Net weight 0.122 kg / gross 0.17 kg. Supplied multi pack, 13 pc. CE marked. EAN 5702428973441. OEM P/N 084Z4202.
Technical Specifications
- Type
- Danfoss MBT 5560 — Temperature transmitter
- Type designation
- MBT 5560-0001-060-10-120
- Code number
- 084Z4202
- Product group
- Sensors
- Element tolerance
- < ± 1% FS
- Insertion length
- 60 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Process connection material
- Stainless steel
- Transmitter setting range
- 0 to 200 °C
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Electrical connection
- Angular connector, Pg 9
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 13 pc
- Net weight
- 0.122 kg
- Gross weight
- 0.17 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428973441
Standards & Compliance
- Size / Series
- 60 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- 0 to 200 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
MBT built-in transmitter (4-20 mA, 2-wire). Confirm the 0 to 200 °C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (60 mm) / process thread (G 1/4 (ISO 228-1-A)) suit the mounting boss.
