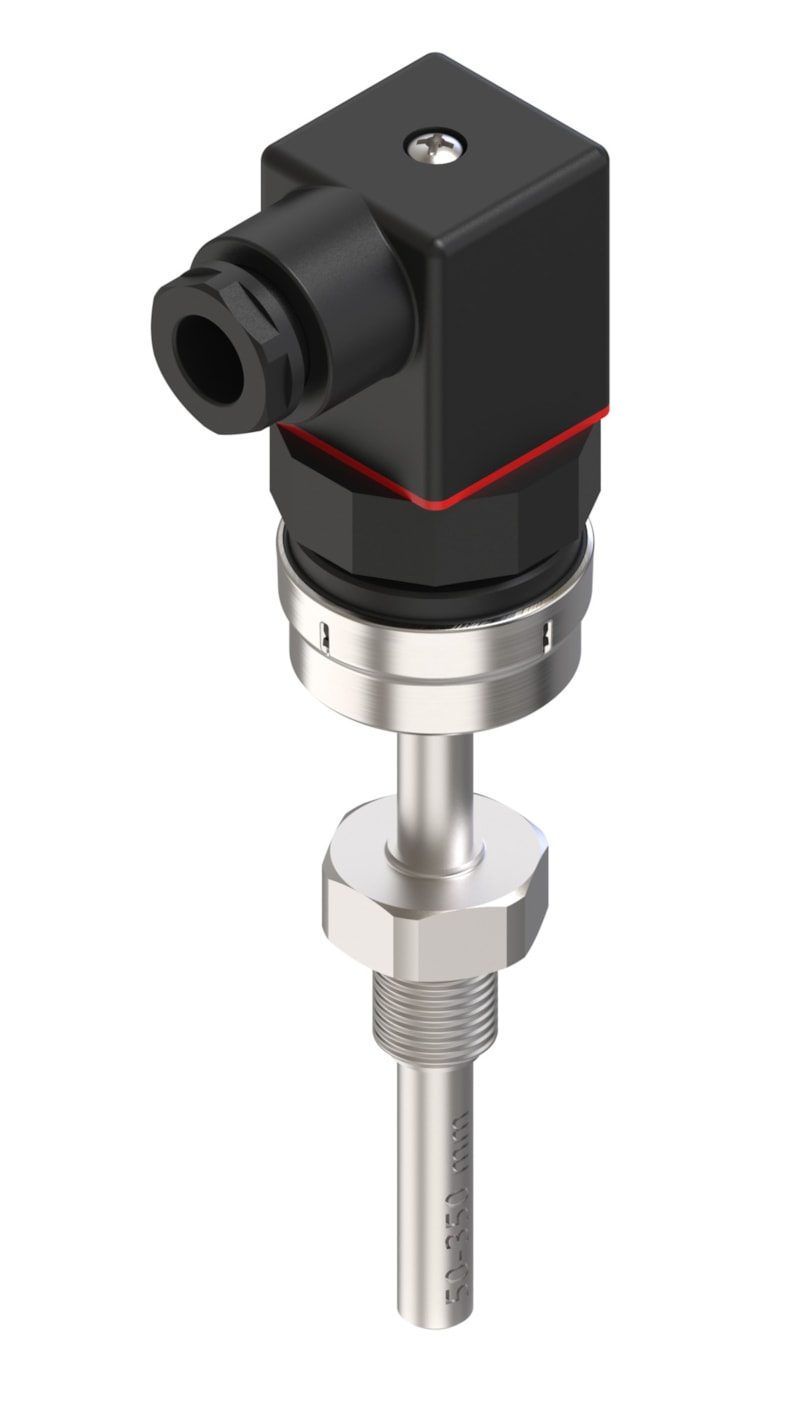

Danfoss MBT 5560 temperature sensor, 90 mm insertion, G 1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5560 insertion temperature sensor, code 084Z4203 (type designation MBT 5560-0001-090-10-120). Direct resistance/RTD output sensor for refrigeration, HVAC and industrial temperature measurement. Insertion length 90 mm. Process connection G 1/4 (ISO 228-1-A), Stainless steel. Measuring range 0 to 200 °C. Electrical connection Angular connector, Pg 9. Enclosure IP65. Net weight 0.128 kg / gross 0.176 kg. Supplied multi pack, 13 pc. CE marked. EAN 5702428973458. OEM P/N 084Z4203.
Technical Specifications
- Type
- Danfoss MBT 5560 — Temperature sensor
- Type designation
- MBT 5560-0001-090-10-120
- Code number
- 084Z4203
- Product group
- Sensors
- Element tolerance
- < ± 1% FS
- Insertion length
- 90 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Process connection material
- Stainless steel
- Measuring range
- 0 to 200 °C
- Electrical connection
- Angular connector, Pg 9
- Enclosure rating
- IP65
- Packing format
- Multi pack
- Quantity per pack
- 13 pc
- Net weight
- 0.128 kg
- Gross weight
- 0.176 kg
- Approvals
- CE
- EU RoHS
- Yes with exemptions
- Lifecycle status
- Current
- EAN
- 5702428973458
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.3 in
- Extension length [mm]
- 33 mm
- In scope of WEEE
- No
- Insertion length [in]
- 3.54 in
- Insertion length [mm]
- 90 mm
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Process connection Male/Female
- Male
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor element tolerance
- < ± 1% FS
- Sensor Insert
- Fixed
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 10 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 200 °C
- Transmitter setting range [°C] [min]
- 0 °C
- Transmitter setting range [°F] [max]
- 392 °F
- Transmitter setting range [°F] [min]
- 32 °F
- Transmitter type
- Integrated
Standards & Compliance
- Size / Series
- 90 mm insertion
- Material
- Stainless steel protection tube
- Thread Standard
- ISO 228-1-A
- Temperature Range
- 0 to 200 °C
- IP Rating
- IP65
- Classification / Approval
- CE
- HS Code
- 9025.19
Compatibility & Fitment
Danfoss genuine sensor part. Confirm the element/connection (G 1/4 (ISO 228-1-A)), insertion 90 mm matches the application before ordering.
