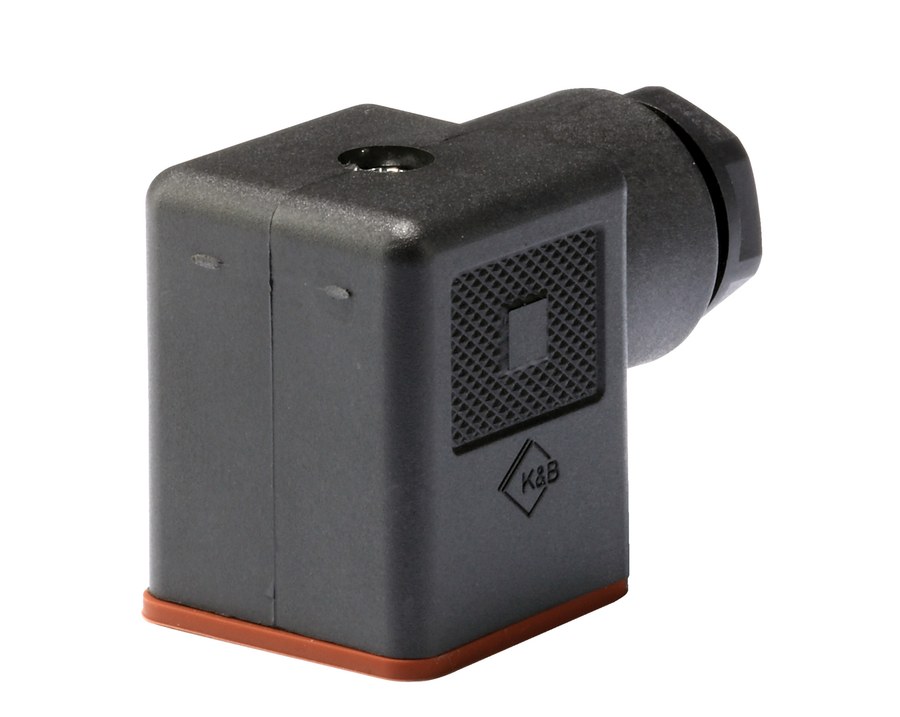

Danfoss Electrical connector, Pg 9 angular with knife contact — sensor accessory
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss temperature-sensor accessory, code 084Z2499 — Electrical connector, Pg 9 angular with knife contact. Pg 9 angular electrical connector (form A) with knife contact and gasket, EN 175301-803-A, for the sensor/transmitter electrical entry. For use with Danfoss AKS and MBS sensors/transmitters with a Pg 9 connection. Genuine Danfoss spare (product group: Accessories, sensors). Net weight 0.032 kg / gross 0.036 kg; supplied multi pack, 96 pc. EAN 5702428516235. OEM P/N 084Z2499.
Technical Specifications
- Type
- Danfoss sensor accessory — Electrical connector, Pg 9 angular with knife contact
- Code number
- 084Z2499
- Product group
- Accessories, sensors
- Connector standard
- EN 175301-803-A
- Parts included
- angular connector Pg 9 with knife contact, plus gasket
- Fits
- Danfoss AKS and MBS sensors/transmitters with a Pg 9 connection
- Packing format
- Multi pack
- Quantity per pack
- 96 pc
- Net weight
- 0.032 kg
- Gross weight
- 0.036 kg
- Approvals
- CE
- Lifecycle status
- Current
- EAN
- 5702428516235
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Pg 9
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Used for product
- AKS/MBS
Standards & Compliance
- Standard
- EN 175301-803-A
- Classification / Approval
- CE
- HS Code
- 8536.90
Compatibility & Fitment
Danfoss sensor accessory/spare. Confirm it matches the parent sensor (Danfoss AKS and MBS sensors/transmitters with a Pg 9 connection) before ordering.
